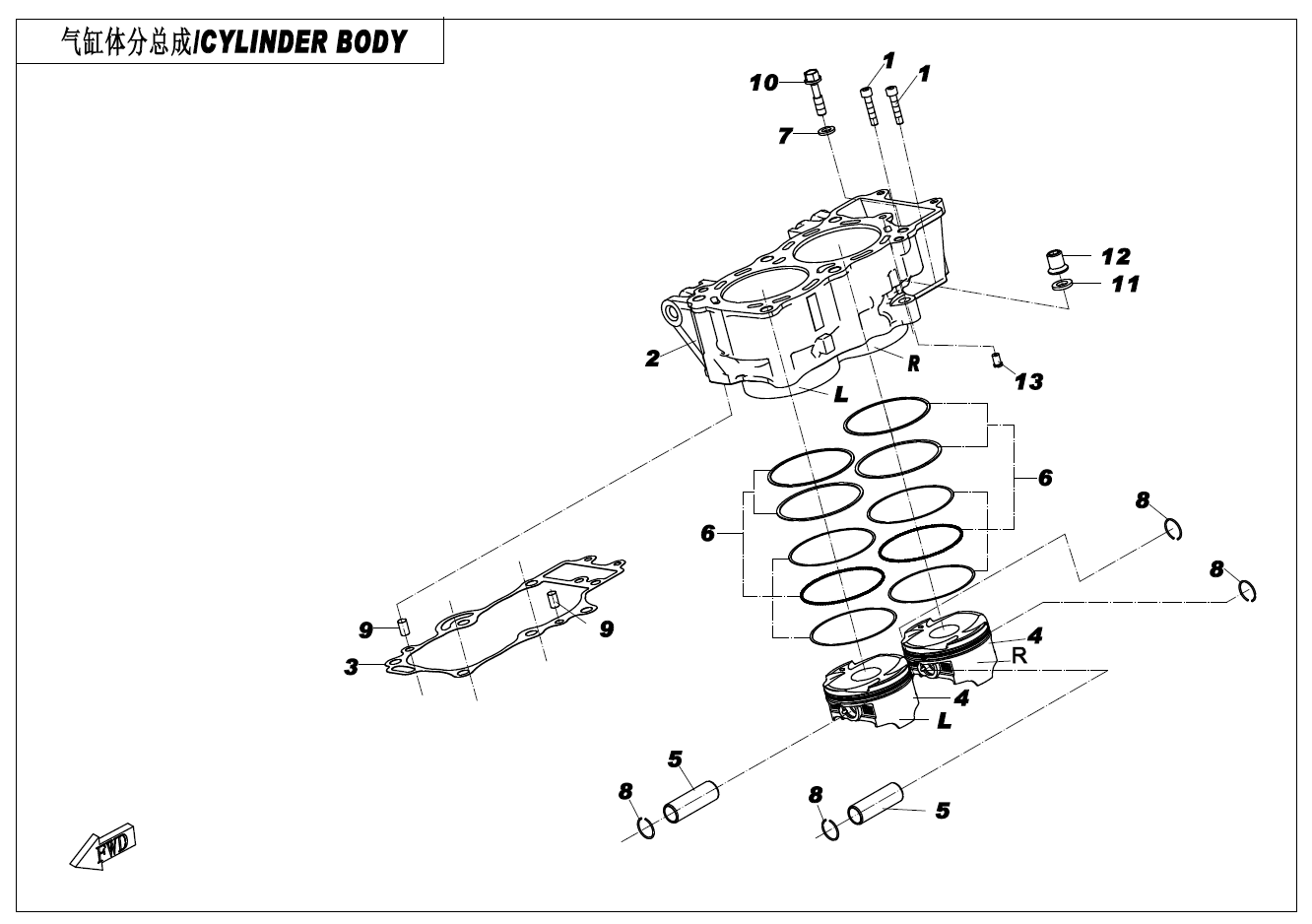

CYLINDER BODY - E02-4

CYLINDER BODY - E02-4

No.

01
P/N (SKU): 0060-030003-00001
Part Name: INNER HEX BOLT
Effective: 2022-11-09
Alternative parts:
Price: 1,00 € : 1,00 €
-+
02
P/N (SKU): 0HU0-023001-3BP00
Part Name: CYLINDER BODY
Effective: 2022-11-09
Alternative parts: 0HU0-023001-3BP01
Price: 362,70 € : 362,70 €
02
P/N (SKU): 0HU0-023001-3BP01
Part Name: CYLINDER
Effective: 2023-03-21
Alternative parts: 0HU0-023001-3BP02
Price: 272,80 € : 272,80 €
03
P/N (SKU): 0700-023002-0001
Part Name: GASKET, CYLINDER
Effective: 2022-11-09
Alternative parts:
Price: 4,70 € : 4,70 €
-+
04
P/N (SKU): 0HU0-040007-20010
Part Name: PISTON
Effective: 2022-11-09
Remarks: mark I ;use with 0HU0-023001-30000
Alternative parts:
Price: 78,80 € : 78,80 €
-+
04
P/N (SKU): 0HU0-040007-20020
Part Name: PISTON
Effective: 2022-11-09
Remarks: mark II;use with 0HU0-023001-30000
Alternative parts:
Price: 78,80 € : 78,80 €
-+
05
P/N (SKU): 0HU0-040008
Part Name: PISTON PIN
Effective: 2022-11-09
Alternative parts:
Price: 6,60 € : 6,60 €
-+
06
P/N (SKU): 0700-0400A0
Part Name: PISTON RING ASSY
Effective: 2022-11-09
Alternative parts:
Price: 28,60 € : 28,60 €
-+
07
P/N (SKU): 0700-023004
Part Name: WASHER
Effective: 2022-11-09
Alternative parts:
Specification: 8.5×15.5×2
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 0700-040009
Part Name: CIRCLIP, PISTON PIN
Effective: 2022-11-09
Alternative parts:
Price: 1,00 € : 1,00 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2022-11-09
Alternative parts:
Specification: 8x14
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 0700-023003-00002
Part Name: BOLT
Effective: 2022-11-09
Alternative parts:
Price: 1,80 € : 1,80 €
-+
11
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2022-11-09
Alternative parts:
Specification: 10.5x19x2.3
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 0700-011111-00002
Part Name: NUT
Effective: 2022-11-09
Alternative parts:
Price: 2,70 € : 2,70 €
-+
13
P/N (SKU): 0700-023005
Part Name: RESTRICTION PLUG
Effective: 2022-11-09
Alternative parts:
Price: 1,80 € : 1,80 €
-+
