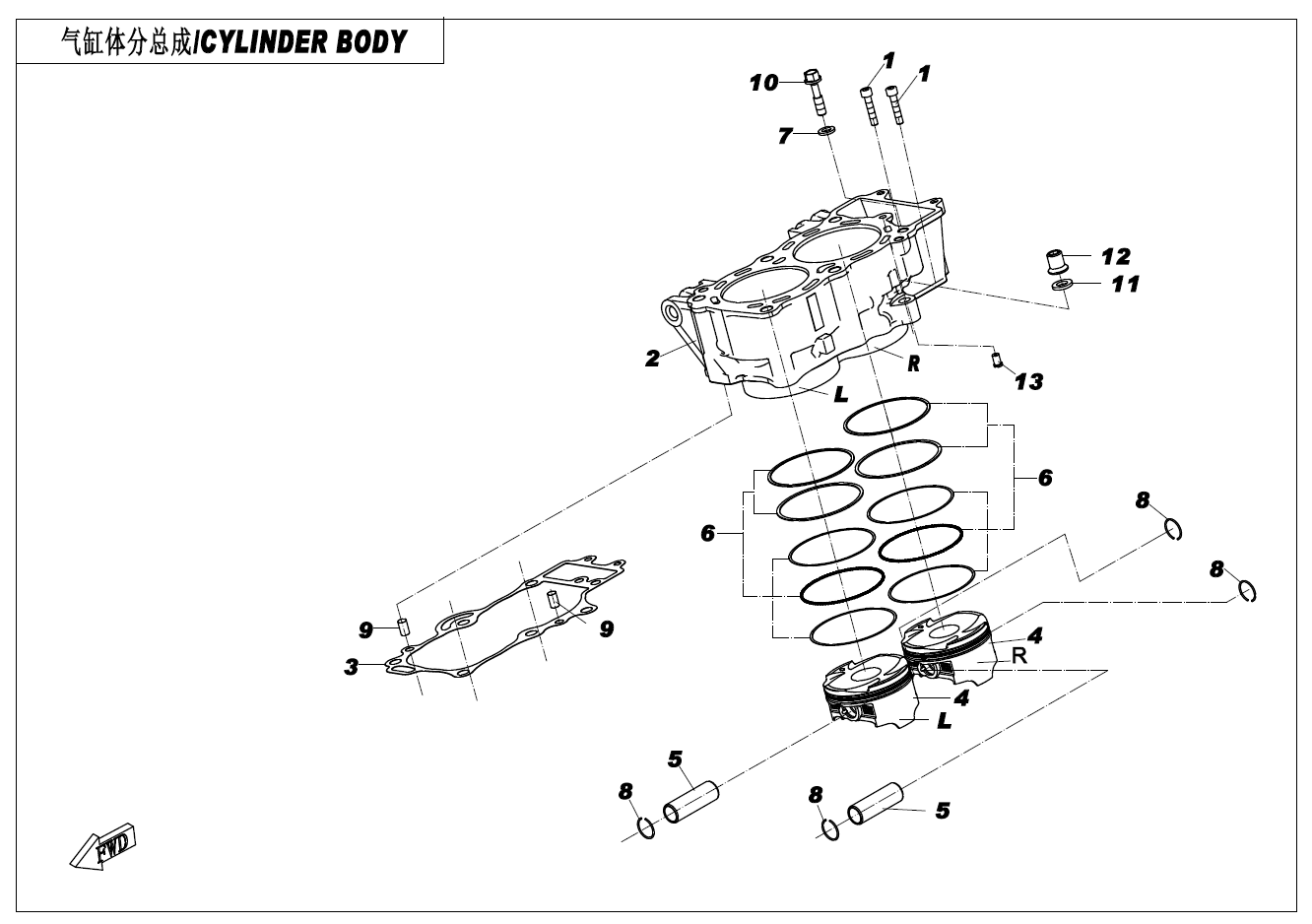

CYLINDER BODY - E02-4 | 2023, ENGINE, 283MU | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0060-030003-00001

Part Name: INNER HEX BOLT

Effective: 2022-11-09

Alternative parts:

Price: 0,55 € : 0,55 €

02

P/N (SKU): 0HU0-023001-3BY01

Part Name: CYLINDER

Effective: 2022-11-09

Remarks: use with 0HU0-040007-20010 @^ 0HU0-040007-20020

Alternative parts:

Specification: NANO BLACK

Price: 370,00 € : 370,00 €

02

P/N (SKU): 0HU0-023001-3BP00

Part Name: CYLINDER BODY

Effective: 2022-11-09

Alternative parts:

Price: 362,70 € : 362,70 €

02

P/N (SKU): 0HU0-023001-3BP01

Part Name: CYLINDER

Effective: 2023-03-21

Alternative parts:

Price: 272,76 € : 272,76 €

03

P/N (SKU): 0700-023002-0001

Part Name: GASKET, CYLINDER

Effective: 2022-11-09

Alternative parts:

Price: 3,70 € : 3,70 €

04

P/N (SKU): 0HU0-040007-10010

Part Name: PISTON

Effective: 2022-11-09

Alternative parts: 0HU0-040007-20010

Price: 65,60 € : 65,60 €

04

P/N (SKU): 0HU0-040007-10020

Part Name: PISTON

Effective: 2022-11-09

Alternative parts: 0HU0-040007-20020

Price: 65,60 € : 65,60 €

04

P/N (SKU): 0HU0-040007-10030

Part Name: PISTON

Effective: 2022-11-09

Alternative parts: 0HU0-040007-20020

Price: 65,60 € : 65,60 €

04

P/N (SKU): 0HU0-040007-20010

Part Name: PISTON

Effective: 2022-11-09

Remarks: use with 0HU0-023001-30000

Alternative parts:

Price: 65,60 € : 65,60 €

04

P/N (SKU): 0HU0-040007-20020

Part Name: PISTON

Effective: 2022-11-09

Remarks: use with 0HU0-023001-30000

Alternative parts:

Price: 65,60 € : 65,60 €

05

P/N (SKU): 0HU0-040008

Part Name: PISTON PIN

Effective: 2022-11-09

Alternative parts:

Price: 4,80 € : 4,80 €

06

P/N (SKU): 0700-0400A0

Part Name: PISTON RING ASSY

Effective: 2022-11-09

Alternative parts:

Price: 28,60 € : 28,60 €

07

P/N (SKU): 0700-023004

Part Name: WASHER

Effective: 2022-11-09

Alternative parts:

Specification: 8.5x15.5x2

Price: 0,55 € : 0,55 €

08

P/N (SKU): 0700-040009

Part Name: CIRCLIP, PISTON PIN

Effective: 2022-11-09

Alternative parts:

Price: 0,55 € : 0,55 €

09

P/N (SKU): 0700-022018

Part Name: SOLID PIN 8x14

Effective: 2022-11-09

Alternative parts:

Specification: 8x14

Price: 0,55 € : 0,55 €

10

P/N (SKU): 0700-023003-00002

Part Name: BOLT

Effective: 2022-11-09

Alternative parts: 0700-023003-00001

Price: 0,95 € : 0,95 €

11

P/N (SKU): 0700-022016

Part Name: WASHER 10.5x19x2.3

Effective: 2022-11-09

Alternative parts:

Specification: 10.5x19x2.3

Price: 0,55 € : 0,55 €

12

P/N (SKU): 0700-011111-00002

Part Name: NUT

Effective: 2022-11-09

Alternative parts: 0700-011111-00001

Price: 1,25 € : 1,25 €

13

P/N (SKU): 0700-023005

Part Name: RESTRICTION PLUG

Effective: 2022-11-09

Alternative parts:

Price: 0,95 € : 0,95 €
