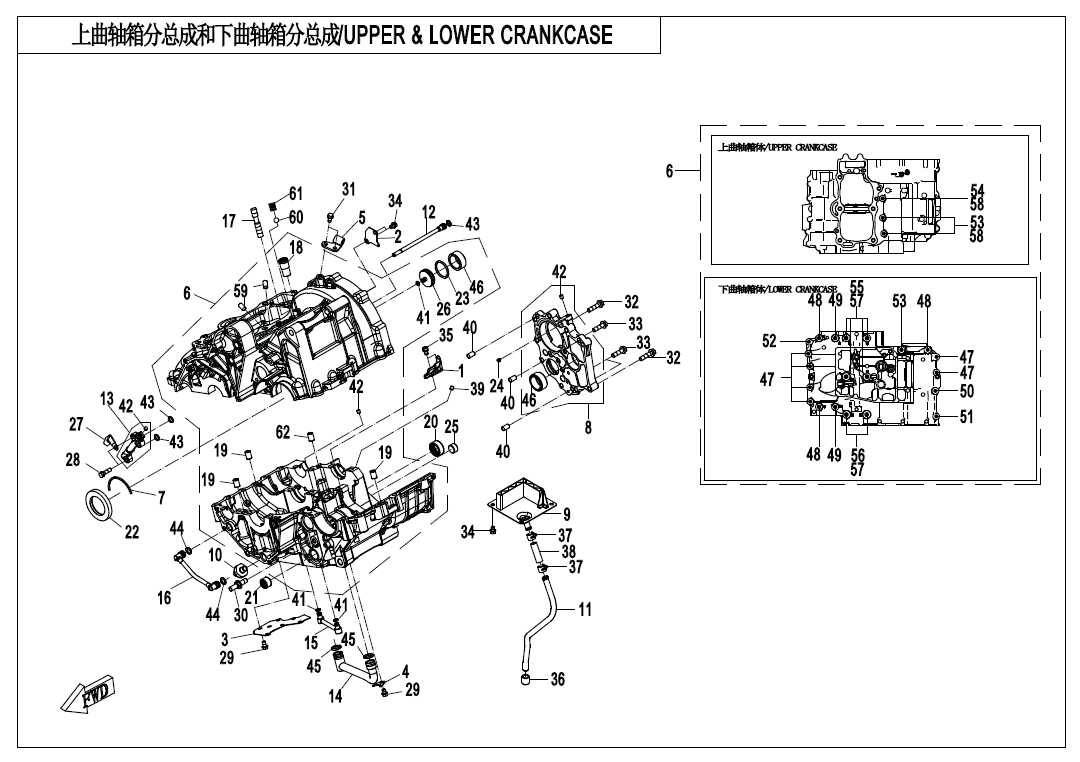

UPPER @^ LOWER CRANKCASE - E01-1

UPPER @^ LOWER CRANKCASE - E01-1

No.

01
P/N (SKU): 0700-012300
Part Name: PLATE, OIL SHIELDING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
02
P/N (SKU): 0700-011104
Part Name: BREATHER GUARD
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
03
P/N (SKU): 0700-012006
Part Name: PLATE, LOWER CRANKCASE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
04
P/N (SKU): 0700-070001
Part Name: PLATE, OIL PIPE1
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
05
P/N (SKU): 0700-010002
Part Name: BRACKET, CLUTCH CABLE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
06
P/N (SKU): 0700-0100A0-0BY00
Part Name: CRANKCASE ASSY
Effective: 2023-05-16
Alternative parts: null
Specification: NANO BLACK
Price: 620,00 € : 620,00 €
07
P/N (SKU): 0700-010001
Part Name: RING 62, BEARING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
08
P/N (SKU): 0700-0660A0
Part Name: GEARSHIFT COVER ASSY
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 37,00 € : 37,00 €
09
P/N (SKU): 0700-011410
Part Name: BREATHER ASSY
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
10
P/N (SKU): 0700-012500
Part Name: SWITCH, OIL PRESSURE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 0700-011402-1000
Part Name: OIL RETURN HOSE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
12
P/N (SKU): 0700-011310
Part Name: OIL PIPE 5
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
13
P/N (SKU): 0700-0112A0-1BY00
Part Name: OIL PIPE 4
Effective: 2023-05-23
Remarks: null
Alternative parts: null
Specification: NANO BLACK
Price: 7,50 € : 7,50 €
14
P/N (SKU): 0700-070300
Part Name: OIL PIPE 1
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 13,00 € : 13,00 €
15
P/N (SKU): 0700-012210
Part Name: OIL PIPE 3
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 9,00 € : 9,00 €
16
P/N (SKU): 0700-012710
Part Name: OIL PIPE 2
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
17
P/N (SKU): 0700-011102-00001
Part Name: STUD M10x57
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
18
P/N (SKU): 0700-011103
Part Name: BREATHER PIPE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
19
P/N (SKU): 30410-01000
Part Name: ROLLER 10x14
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 10X14
Price: 2,00 € : 2,00 €
20
P/N (SKU): 30403-02200
Part Name: BEARING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 22×28×12
Price: 3,50 € : 3,50 €
-+
21
P/N (SKU): 30403-01300
Part Name: BEARING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 13×19×12
Price: 2,50 € : 2,50 €
22
P/N (SKU): 0700-010200
Part Name: COUNTERSHAFT OIL SEAL
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 40x62x8
Price: 8,00 € : 8,00 €
-+
23
P/N (SKU): 0700-011112
Part Name: O-RING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 29x2.5
Price: 2,50 € : 2,50 €
24
P/N (SKU): 0700-066006-00002
Part Name: OIL LIMIT PLUG
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
25
P/N (SKU): 0700-012105-00001
Part Name: PLUG, MAIN OIL RAIL
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
26
P/N (SKU): 0700-011106
Part Name: PLUG, UPPER CRANKCASE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
27
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2022-11-14
Remarks: null
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
29
P/N (SKU): 0010-080010-00001
Part Name: BOLT
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: M6×10
Price: 1,50 € : 1,50 €
30
P/N (SKU): 0700-012107-00001
Part Name: GEARSHIFT SHAFT SPRING DOWEL PIN
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
31
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
32
P/N (SKU): 0700-066004-00001
Part Name: BOLT M7x30
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
33
P/N (SKU): 0700-066007-00001
Part Name: BOLT M7x26
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
34
P/N (SKU): 0700-011105-00002
Part Name: BOLT
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
35
P/N (SKU): 0700-012012-00001
Part Name: SCREW
Effective: 2022-11-14
Remarks: null
Alternative parts: 0700-012012-00002
Specification: M6x8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
36
P/N (SKU): 0700-011403
Part Name: DAMPER, OIL RETURN HOSE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
37
P/N (SKU): 30601-211550
Part Name: CLAMP
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: B11.5
Price: 2,00 € : 2,00 €
38
P/N (SKU): 0700-011401
Part Name: BREATHER CONNECTING PIPE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
39
P/N (SKU): 0700-012104-00002
Part Name: SCREW PLUG M6, OIL PASSAGE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
40
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 8x14
Price: 1,50 € : 1,50 €
41
P/N (SKU): 0700-012201
Part Name: O-RING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 5x2
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 0700-066005
Part Name: PLUG 6
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 6
Price: 2,00 € : 2,00 €
-+
43
P/N (SKU): 0700-011202
Part Name: O-SEAL RING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 8.2x1.90
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 0700-012701
Part Name: O-SEAL RING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 10x2
Price: 1,50 € : 1,50 €
-+
45
P/N (SKU): 0700-070003
Part Name: O-RING
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 14x2.5
Price: 2,00 € : 2,00 €
-+
46
P/N (SKU): 0700-011107
Part Name: SHAFT SLEEVE
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Price: 8,50 € : 8,50 €
47
P/N (SKU): 0700-012007-00001
Part Name: BOLT M7x40
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
48
P/N (SKU): 0700-012004-00001
Part Name: BOLT M8x60
Effective: 2022-11-14
Remarks: null
Alternative parts: 0700-012004-00002
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
49
P/N (SKU): 0700-012003-00001
Part Name: BOLT M8x73
Effective: 2022-11-14
Remarks: null
Alternative parts: 0700-012003-00002
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
50
P/N (SKU): 0700-012011-00001
Part Name: BOLT M8x50
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
51
P/N (SKU): 0700-012009-00001
Part Name: BOLT M7x34
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
52
P/N (SKU): 0700-012005-00001
Part Name: BOLT M7x47
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
53
P/N (SKU): 0700-011001-00001
Part Name: BOLT M8x110
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,50 € : 2,50 €
54
P/N (SKU): 0700-011002-00001
Part Name: BOLT M8x120
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
55
P/N (SKU): 0700-012001
Part Name: BOLT M9x113
Effective: 2022-11-14
Remarks: null
Alternative parts: 0700-012001-00002
Specification: M9x113
Price: 2,50 € : 2,50 €
56
P/N (SKU): 0700-012008-00001
Part Name: BOLT M9x83
Effective: 2022-11-14
Remarks: null
Alternative parts: 0700-012008-00002
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 2,50 € : 2,50 €
57
P/N (SKU): 0700-012002
Part Name: WASHER
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 9.2x19x2.3
Price: 1,50 € : 1,50 €
58
P/N (SKU): 0010-022012
Part Name: WASHER 8
Effective: 2022-11-14
Remarks: null
Alternative parts: null
Specification: 8
Price: 1,50 € : 1,50 €
59
P/N (SKU): 0800-011400
Part Name: NOZZLE VALVE ASSY
Effective: 2022-11-14
Remarks: null
Alternative parts: 0800-011400-00001
Price: 9,00 € : 9,00 €
-+
59
P/N (SKU): 0800-011400-00001
Part Name: NOZZLE VALVE ASSY
Effective: 2022-12-29
Alternative parts: null
Specification: null
Price: 9,50 € : 9,50 €
-+
60
P/N (SKU): 3120016
Part Name: STEEL BALL
Effective: 2024-05-08
Remarks: null
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
61
P/N (SKU): 0A80-160004
Part Name: BALANCER GEAR SPRING
Effective: 2024-05-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
62
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN Φ6×12
Effective: 2022-11-14
Alternative parts: null
Specification: 6x12
Price: 1,50 € : 1,50 €
-+
