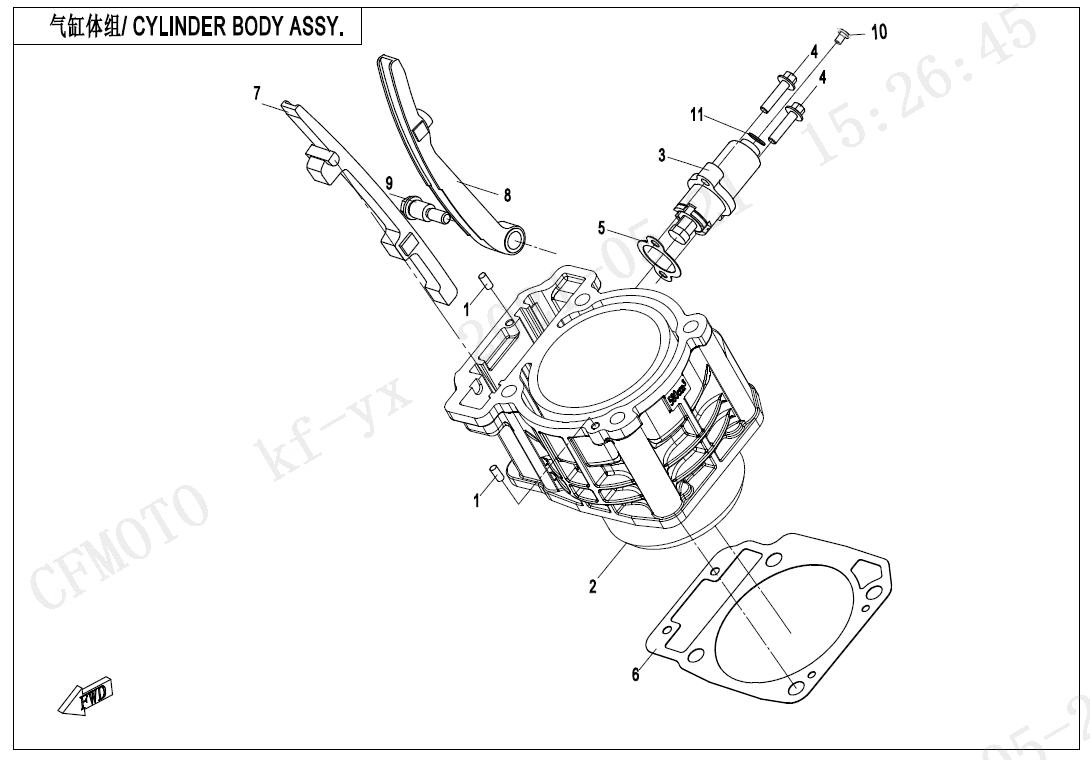

CYLINDER BODY ASSY. - E02-3-V2

CYLINDER BODY ASSY. - E02-3-V2

No.

01
P/N (SKU): 30406-00500
Part Name: NEEDLE ROLLERS
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Specification: P5x11.8
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0GS0-023100-10010
Part Name: CYLINDER BODY ASSY
Effective: 2022-06-27
Remarks: null
Alternative parts: 0GS0-023100-10011
Specification: 1 GROUP
Price: 87,00 € : 87,00 €
-+
02
P/N (SKU): 0GS0-023100-10020
Part Name: CYLINDER BODY ASSY
Effective: 2022-06-27
Remarks: null
Alternative parts: 0GS0-023100-10021
Specification: 2 GROUP
Price: 87,00 € : 87,00 €
02
P/N (SKU): 0GS0-023100-10011
Part Name: CYLINDER BODY ASSY
Effective: 2022-11-19
Alternative parts: null
Specification: GROUP 1
Price: 117,00 € : 117,00 €
-+
02
P/N (SKU): 0GS0-023100-10021
Part Name: CYLINDER BODY ASSY
Effective: 2022-11-19
Alternative parts: null
Specification: GROUP 2
Price: 117,00 € : 117,00 €
-+
03
P/N (SKU): 0GS0-023200-00001
Part Name: TENSIONER ASSY
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 22,00 € : 22,00 €
-+
04
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 0180-023003
Part Name: TENSIONER GASKET
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0GR0-023001
Part Name: GASKET, CYLINDER BODY
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 0GR0-023300
Part Name: CHAIN GUIDE BLOCK
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 10,00 € : 10,00 €
-+
08
P/N (SKU): 0GR0-023200
Part Name: TENSION PLATE
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 16,00 € : 16,00 €
-+
09
P/N (SKU): 0700-024008-00001
Part Name: PIN SHAFT
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
10
P/N (SKU): 0JYA-023001-00001
Part Name: HEX FLANGE BOLT M6x6
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
11
P/N (SKU): 0700-011202
Part Name: O-SEAL RING
Effective: 2022-06-27
Remarks: null
Alternative parts: null
Specification: 8.2x1.90
Price: 1,50 € : 1,50 €
-+
