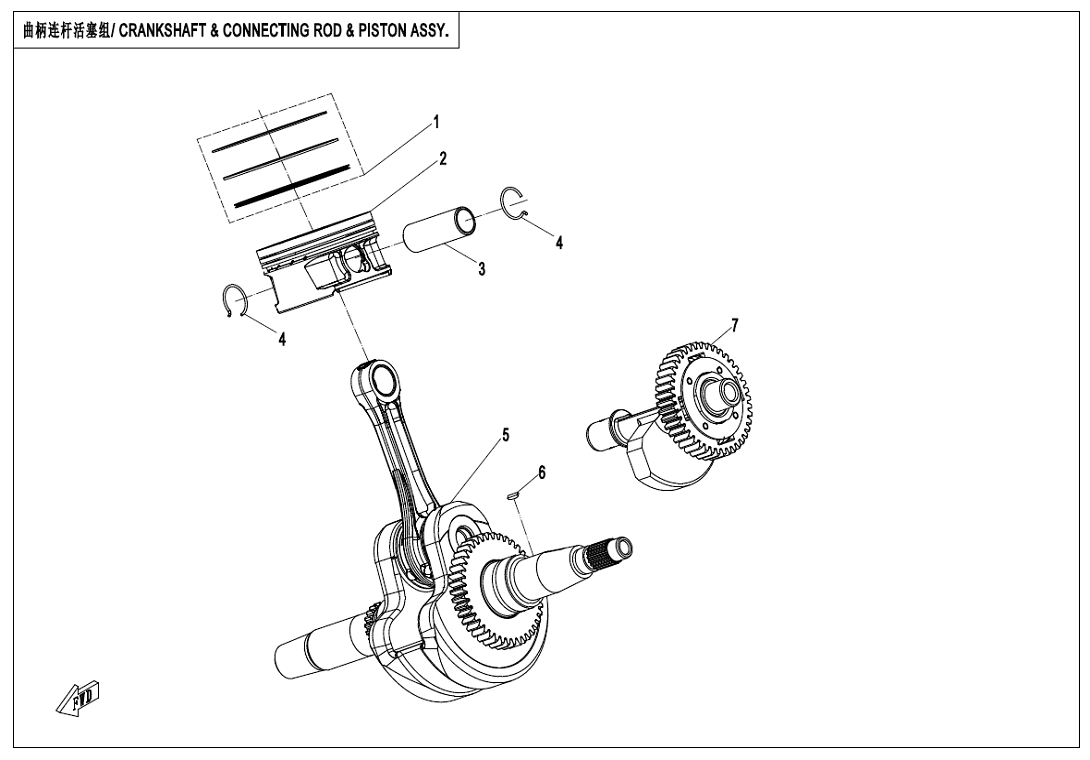

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2022-06-27
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
01
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2022-06-27
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
02
P/N (SKU): 0GS0-040001-00012
Part Name: PISTON
Effective: 2022-06-27
Alternative parts:
Specification: MARK1
Price: 36,76 € : 36,76 €
-+
02
P/N (SKU): 0GS0-040001-00022
Part Name: PISTON
Effective: 2022-06-27
Alternative parts:
Specification: MARK 2
Price: 36,76 € : 36,76 €
-+
03
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2022-06-27
Alternative parts: 0800-040002-00001
Price: 8,10 € : 8,10 €
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2022-06-27
Alternative parts:
Price: 1,70 € : 1,70 €
-+
05
P/N (SKU): 0GS0-041000-30013
Part Name: COPPER BEARING
Effective: 2022-06-27
Alternative parts: 0GS0-041000-30014
Specification: MARK A@WITH OIL HOLE@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 305,00 € : 305,00 €
-+
05
P/N (SKU): 0GS0-041000-30014
Part Name: COPPER BEARING
Effective: 2022-12-27
Alternative parts:
Specification: MARK A@WITH OIL HOLE@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 304,70 € : 304,70 €
-+
06
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2022-06-27
Alternative parts:
Price: 2,10 € : 2,10 €
-+
07
P/N (SKU): 0GS0-160000-00021
Part Name: BALANCE SHAFT ASSY
Effective: 2022-06-27
Remarks: B GROUP, MATCHED WITH 0GR0-041000-30011
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A CRANK CONNECTING ROD SUB ASSY
Price: 130,60 € : 130,60 €
-+
