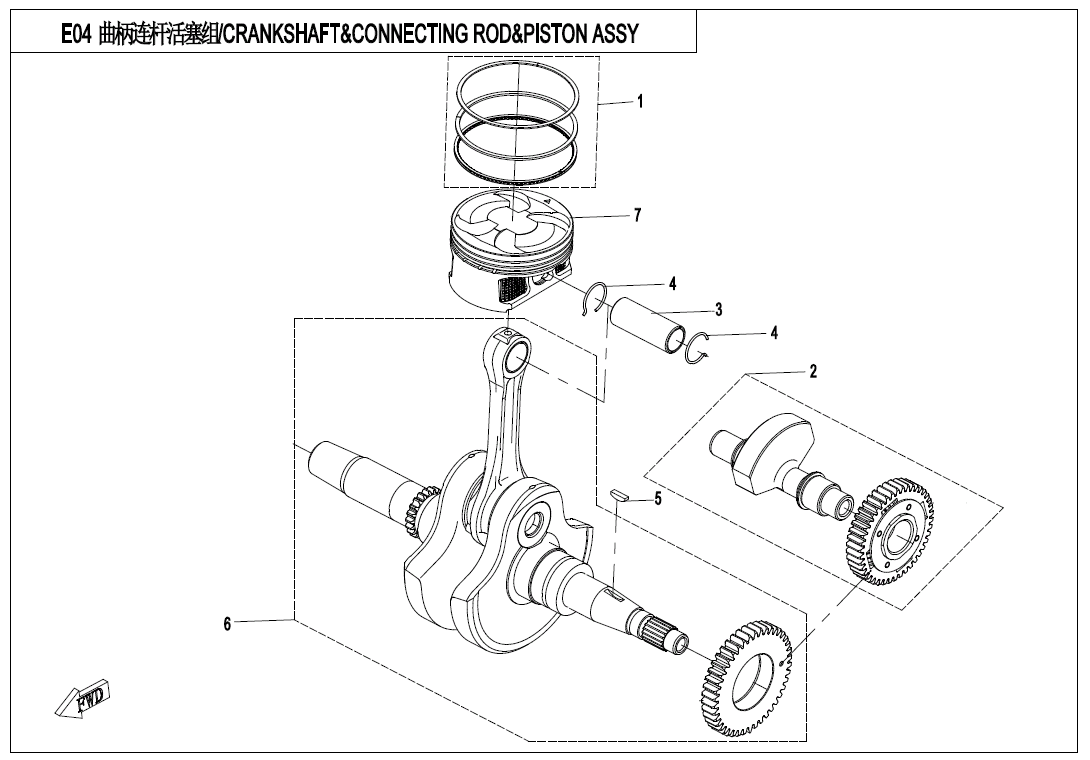

CRANKSHAFT/CONNECTING ROD/PISTON ASSY - E04

CRANKSHAFT/CONNECTING ROD/PISTON ASSY - E04

No.

01
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2022-11-19
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 24,00 € : 24,00 €
02
P/N (SKU): 0GR0-160000-00011
Part Name: BALANCE SHAFT ASSY
Effective: 2022-11-19
Remarks: A GROUP, MATCHED WITH 0GR0-041000-10021
Alternative parts:
Specification: MARK A@MATCHED WITH MARK B CRANK CONNECTING ROD SUB ASSY
Price: 115,00 € : 115,00 €
-+
02
P/N (SKU): 0GR0-160000-00021
Part Name: BALANCE SHAFT ASSY
Effective: 2022-11-19
Remarks: B GROUP, MATCHED WITH 0GR0-041000-10011
Alternative parts:
Specification: MARK B@MATCHED WITH MARK A CRANK CONNECTING ROD SUB ASSY
Price: 115,00 € : 115,00 €
-+
03
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2022-11-19
Alternative parts: 0800-040002-00001
Price: 8,50 € : 8,50 €
04
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2022-11-19
Alternative parts:
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2022-11-19
Alternative parts:
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 0GR0-041000-10013
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-11-19
Alternative parts: 0GR0-041000-10014
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 289,00 € : 289,00 €
06
P/N (SKU): 0GR0-041000-10023
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-11-19
Alternative parts: 0GR0-041000-10024
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 289,00 € : 289,00 €
06
P/N (SKU): 0GR0-041000-10024
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-12-21
Alternative parts: 0GR0-041000-10027
Specification: MARK B@MATCHED WITH MARK A BALANCER SHAFT ASSY
Price: 305,00 € : 305,00 €
06
P/N (SKU): 0GR0-041000-10014
Part Name: CRANK CONNECTING ROD SUB ASSY
Effective: 2022-12-21
Alternative parts: 0GR0-041000-10017
Specification: MARK A@MATCHED WITH MARK B BALANCER SHAFT ASSY
Price: 305,00 € : 305,00 €
-+
07
P/N (SKU): 0800-040001-20012
Part Name: PISTON
Effective: 2022-11-19
Alternative parts:
Specification: MARK 1
Price: 59,00 € : 59,00 €
-+
07
P/N (SKU): 0800-040001-20022
Part Name: PISTON
Effective: 2022-11-19
Alternative parts:
Specification: MARK 2
Price: 59,00 € : 59,00 €
-+
