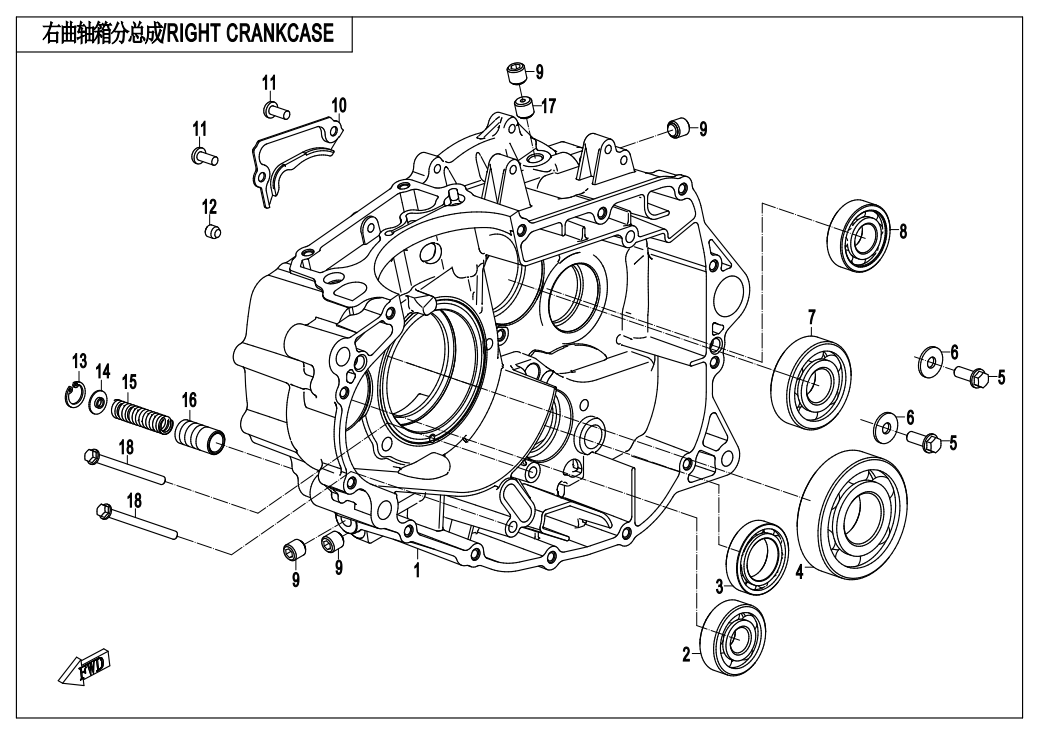

RIGHT CRANKCASE - E01-1

RIGHT CRANKCASE - E01-1

No.

01
P/N (SKU): 0DM0-012010-0BP03
Part Name: RH CRANKCASE ASSY
Effective: 2022-11-14
Remarks: 300NK/300SR
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 160,00 € : 160,00 €
-+
01
P/N (SKU): 0DM0-012010-0B203
Part Name: RH CRANKCASE ASSY
Effective: 2022-11-14
Remarks: 300NK/300SR
Alternative parts:
Specification: MATTE BLACK
Price: 111,00 € : 111,00 €
-+
01
P/N (SKU): 0DM0-012010-2BP00
Part Name: RH CRANKCASE ASSY
Effective: 2022-11-14
Remarks: 300CL
Alternative parts: 0DM0-012010-3BP00
Specification: MAUD SPIRIT BLACK
Price: 171,00 € : 171,00 €
02
P/N (SKU): 30499-01507
Part Name: BEARING
Effective: 2022-11-14
Alternative parts: 30499-01508
Price: 15,00 € : 15,00 €
03
P/N (SKU): 30499-02506
Part Name: BEARING
Effective: 2022-11-14
Alternative parts:
Price: 15,00 € : 15,00 €
-+
04
P/N (SKU): 30499-03001
Part Name: BEARING
Effective: 2022-11-14
Alternative parts:
Price: 30,00 € : 30,00 €
-+
05
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2022-11-14
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2022-11-14
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30499-02005
Part Name: BEARING
Effective: 2022-11-14
Alternative parts: 30499-02010
Price: 14,00 € : 14,00 €
08
P/N (SKU): 30499-01701
Part Name: BEARING
Effective: 2022-11-14
Alternative parts: 30499-01702
Price: 12,00 € : 12,00 €
09
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2022-11-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0DM0-012001
Part Name: VENTILATED COVER PLATE
Effective: 2022-11-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30105-050012890
Part Name: SCREW M5x12
Effective: 2022-11-14
Alternative parts:
Specification: M5x12
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0A70-013004
Part Name: PLUG
Effective: 2022-11-14
Alternative parts:
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 30800-01405
Part Name: CIRCLIP FOR HOLE
Effective: 2022-11-14
Alternative parts:
Specification: 14A
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0800-073004
Part Name: SPRING SEAT, RELIEF VALVE
Effective: 2022-11-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 01A0-012007
Part Name: SPRING, RELIEF VALVE
Effective: 2022-11-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
16
P/N (SKU): 0DM0-012003
Part Name: CORE, RELIEF VALVE
Effective: 2022-11-14
Alternative parts:
Price: 3,50 € : 3,50 €
-+
17
P/N (SKU): 0DM0-012002
Part Name: RESTRICTION PLUG
Effective: 2022-11-14
Alternative parts:
Price: 3,00 € : 3,00 €
-+
18
P/N (SKU): 0020-011018-00001
Part Name: BOLT
Effective: 2022-11-14
Alternative parts:
Price: 1,50 € : 1,50 €
-+
