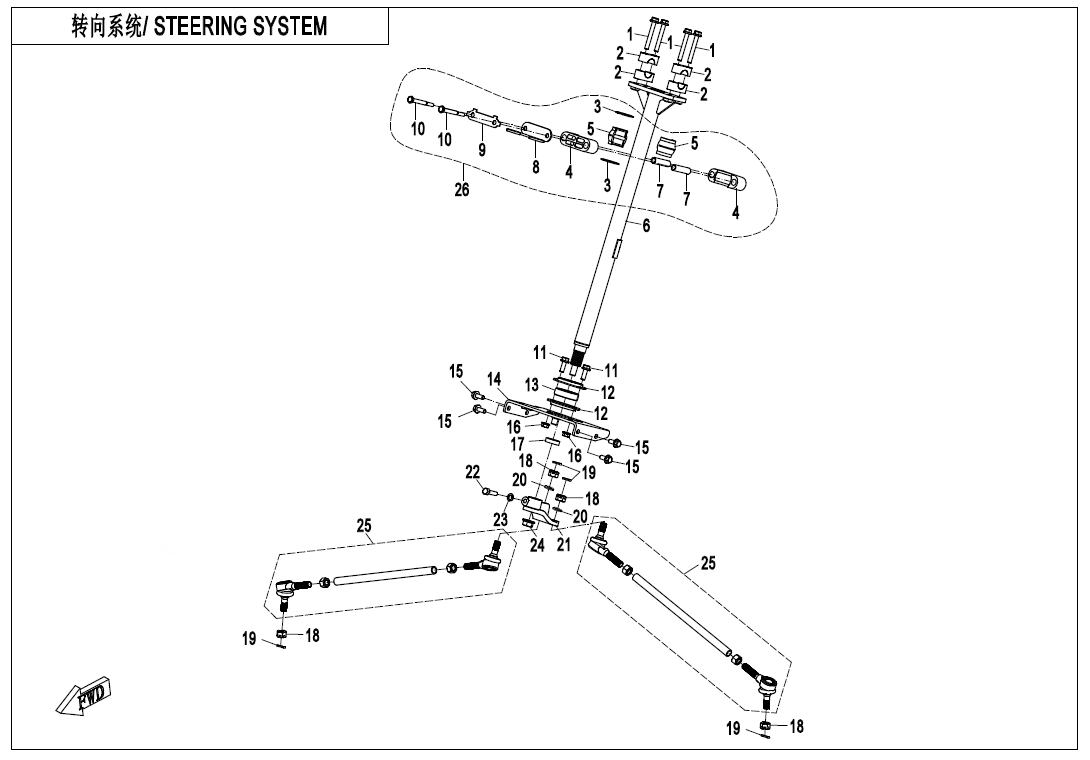

STEERING SYSTEM - F10-2-A-V2 | 2023, ATV, CF600AU-3LF |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 30102-080045810

Part Name: SCREW

Effective: 2022-10-11

Alternative parts:

Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

02

P/N (SKU): 9DSV-100001-6K01

Part Name: HANDLEBAR BLOCK

Effective: 2022-10-11

Alternative parts:

Price: 14,00 € : 14,00 €

03

P/N (SKU): 30502-032800N

Part Name: O-RING

Effective: 2022-10-11

Alternative parts:

Specification: 32x1.8

Price: 1,50 € : 1,50 €

04

P/N (SKU): 7020-100601-00001

Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2022-10-11

Alternative parts:

Price: 5,00 € : 5,00 €

05

P/N (SKU): 7020-100602

Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2022-10-11

Alternative parts:

Price: 9,00 € : 9,00 €

06

P/N (SKU): 9DSV-102100-6K00

Part Name: STEERING SHAFT ASSY

Effective: 2022-10-11

Alternative parts: 9DSV-1021A0

Price: 51,00 € : 51,00 €

07

P/N (SKU): 7020-100604-00001

Part Name: BUSHING

Effective: 2022-10-11

Alternative parts:

Price: 3,00 € : 3,00 €

08

P/N (SKU): 7020-100610-10000

Part Name: LINKING PLATE ASSY

Effective: 2022-10-11

Alternative parts:

Price: 3,00 € : 3,00 €

09

P/N (SKU): 7020-100603

Part Name: LOCKING PIECE

Effective: 2022-10-11

Alternative parts:

Price: 1,50 € : 1,50 €

10

P/N (SKU): 30003-080075810

Part Name: BOLT M8x75

Effective: 2022-10-11

Alternative parts:

Specification: M8x75

Price: 1,50 € : 1,50 €

11

P/N (SKU): 7020-100001

Part Name: BOLT M8x22

Effective: 2022-10-11

Alternative parts:

Specification: M8x22

Price: 1,50 € : 1,50 €

12

P/N (SKU): 7020-100301-10000

Part Name: SEAT, STEERING SHAFT

Effective: 2022-10-11

Alternative parts:

Price: 3,00 € : 3,00 €

13

P/N (SKU): 7020-100600

Part Name: BEARING, OUTER SPHERICAL

Effective: 2022-10-11

Alternative parts:

Specification: 205

Price: 21,00 € : 21,00 €

14

P/N (SKU): 9CR6-102200

Part Name: PLATE, STEERING STEM

Effective: 2022-10-11

Alternative parts:

Price: 21,00 € : 21,00 €

15

P/N (SKU): 30006-080025810

Part Name: BOLT

Effective: 2022-10-11

Alternative parts:

Specification: M8Ã25

Price: 1,50 € : 1,50 €

16

P/N (SKU): 30204-080810

Part Name: LOCK NUT

Effective: 2022-10-11

Alternative parts:

Specification: M8

Price: 1,50 € : 1,50 €

17

P/N (SKU): 9CR6-102002

Part Name: SHAFT SLEEVE

Effective: 2022-10-11

Alternative parts:

Price: 3,00 € : 3,00 €

18

P/N (SKU): 9010-100002

Part Name: 1-TYPE NUT

Effective: 2022-10-11

Alternative parts:

Specification: M10x1.25

Price: 2,00 € : 2,00 €

19

P/N (SKU): 30903-0252610

Part Name: COTTER PIN

Effective: 2022-10-11

Alternative parts:

Specification: 2.5x26

Price: 1,50 € : 1,50 €

20

P/N (SKU): 30306-100112

Part Name: WASHER

Effective: 2022-10-11

Alternative parts:

Specification: Ï10

Price: 1,50 € : 1,50 €

21

P/N (SKU): 9CR6-102001

Part Name: STEERING ARM

Effective: 2022-10-11

Alternative parts:

Price: 29,00 € : 29,00 €

22

P/N (SKU): 9CR6-102003

Part Name: BOLT M8x35

Effective: 2022-10-11

Alternative parts:

Specification: M8x35

Price: 3,00 € : 3,00 €

23

P/N (SKU): 30303-080112

Part Name: WASHER

Effective: 2022-10-11

Alternative parts:

Specification: Ï8@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

24

P/N (SKU): 30204-122810

Part Name: NUT

Effective: 2022-10-11

Alternative parts:

Specification: M12Ã1.25

Price: 1,50 € : 1,50 €

25

P/N (SKU): 9DS#-104100-6000

Part Name: STEERING ROD

Effective: 2022-10-11

Alternative parts:

Price: 56,00 € : 56,00 €

26

P/N (SKU): 7020-1006A0

Part Name: BUSHING, STEERING SHAFT

Effective: 2022-10-11

Alternative parts:

Price: 33,00 € : 33,00 €
