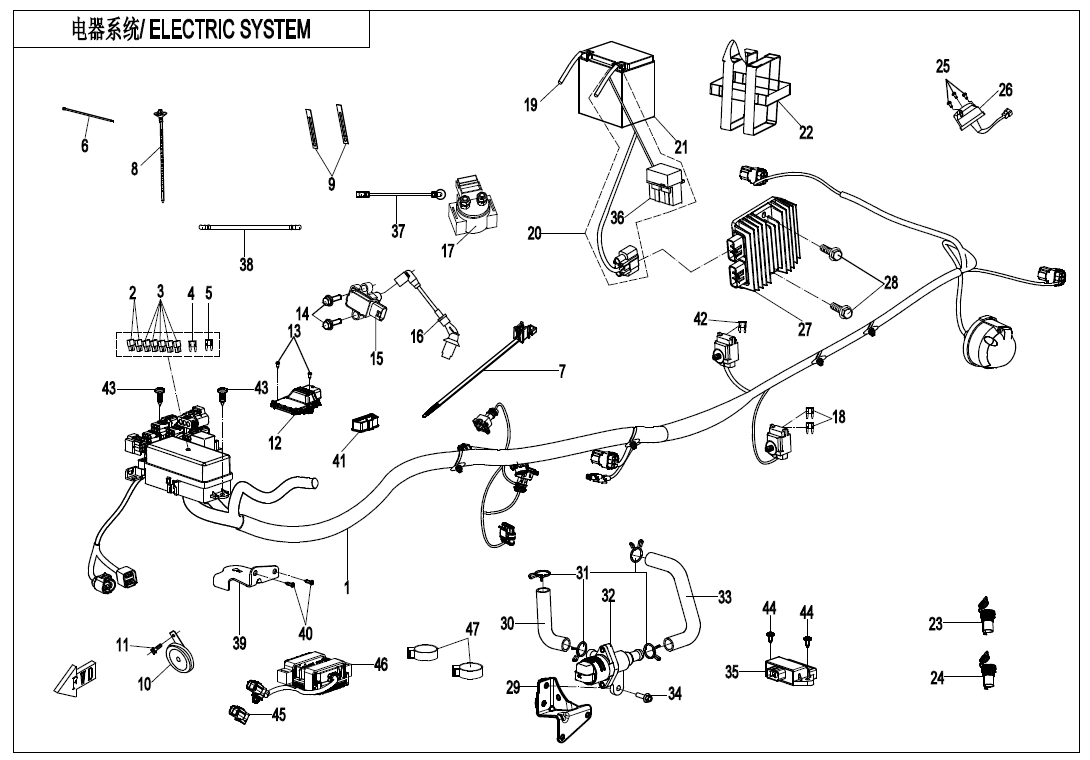

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9CSV-150100-D000
Part Name: MAIN CABLE
Effective: 2022-10-11
Alternative parts:
Price: 605,00 € : 605,00 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2022-10-11
Alternative parts:
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2022-10-11
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2022-10-11
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2022-10-11
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2022-10-11
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2022-10-11
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2022-10-11
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2022-10-11
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2022-10-11
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2022-10-11
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9DSV-001000-8003
Part Name: ECU ASSY
Effective: 2022-10-11
Alternative parts:
Specification: MSE6.0
Price: 199,00 € : 199,00 €
-+
13
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2022-10-11
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2022-10-11
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2022-10-11
Alternative parts:
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GR0-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2022-10-11
Alternative parts:
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2022-10-11
Alternative parts:
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 806A-151308
Part Name: 30A FUSE
Effective: 2022-10-11
Alternative parts:
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 9DS#-150210-6000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2022-10-11
Alternative parts:
Price: 16,00 € : 16,00 €
-+
20
P/N (SKU): 9DS#-150230-6002
Part Name: BATTERY POSITIVE WIRE
Effective: 2022-10-11
Alternative parts:
Price: 34,00 € : 34,00 €
-+
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2022-10-11
Alternative parts:
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
22
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2022-10-11
Alternative parts:
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9DSV-150600-6R01
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2022-10-11
Alternative parts: 5KWV-151200-1200
Price: 55,00 € : 55,00 €
-+
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2022-10-11
Alternative parts:
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2022-10-11
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9DQV-151300-3101
Part Name: TRAILER POWER SOCKET
Effective: 2022-10-11
Alternative parts: 9DQV-151300-3100-10
Price: 66,00 € : 66,00 €
27
P/N (SKU): 9DSV-151000-4000
Part Name: REGULATOR
Effective: 2022-10-11
Alternative parts:
Price: 189,00 € : 189,00 €
-+
28
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2022-10-11
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-030010-30000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2022-10-11
Alternative parts:
Price: 4,50 € : 4,50 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2022-10-11
Alternative parts:
Price: 12,00 € : 12,00 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP
Effective: 2022-10-11
Alternative parts:
Specification: A18
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2022-10-11
Alternative parts:
Price: 90,00 € : 90,00 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2022-10-11
Alternative parts: 9GQA-001001-00001
Price: 18,00 € : 18,00 €
-+
34
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2022-10-11
Alternative parts:
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DSV-161000-A200
Part Name: FLASHER
Effective: 2022-10-11
Alternative parts:
Price: 24,00 € : 24,00 €
-+
36
P/N (SKU): CFC#-150008-4500
Part Name: FUSE 50A
Effective: 2022-10-11
Alternative parts:
Price: 3,50 € : 3,50 €
-+
37
P/N (SKU): 9CS#-150220-6701
Part Name: CABLE, STARTER MOTOR
Effective: 2022-10-11
Alternative parts:
Price: 58,00 € : 58,00 €
-+
38
P/N (SKU): 9CS#-150250-6700
Part Name: NEGATIVE CABLE, STARTER MOTOR
Effective: 2022-10-11
Alternative parts:
Price: 16,00 € : 16,00 €
-+
39
P/N (SKU): 9DS#-030501-6000
Part Name: FUSE BOX BRACKET
Effective: 2022-10-11
Alternative parts:
Price: 4,00 € : 4,00 €
-+
40
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW_ST4.2x13
Effective: 2022-10-11
Alternative parts: 30110-421130010
Specification: PERFORMANCE GRADE 4.8_SURFACE TREATMENT: COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 5BY0-150304
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2022-10-11
Alternative parts:
Price: 9,50 € : 9,50 €
-+
42
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2022-10-11
Alternative parts:
Specification: 40A
Price: 4,00 € : 4,00 €
-+
43
P/N (SKU): 30110-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2022-10-11
Alternative parts:
Specification: ST4.8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2022-10-14
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
45
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2022-10-14
Alternative parts:
Price: 6,00 € : 6,00 €
-+
46
P/N (SKU): 6NTV-150900-C202-M1
Part Name: T-BOX
Effective: 2022-10-14
Remarks: UAES, Eurasia, Africa and Australia except Turkey
Alternative parts:
Price: 595,00 € : 595,00 €
-+
46
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2022-10-14
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: 6GUV-151800-7502-M1/SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 472,00 € : 472,00 €
-+
46
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 428,00 € : 428,00 €
47
P/N (SKU): 6KMV-150901-B001
Part Name: RUBBER RING, T-BOX
Effective: 2022-10-14
Alternative parts: 6KMV-150901-B002
Price: 2,00 € : 2,00 €
-+
