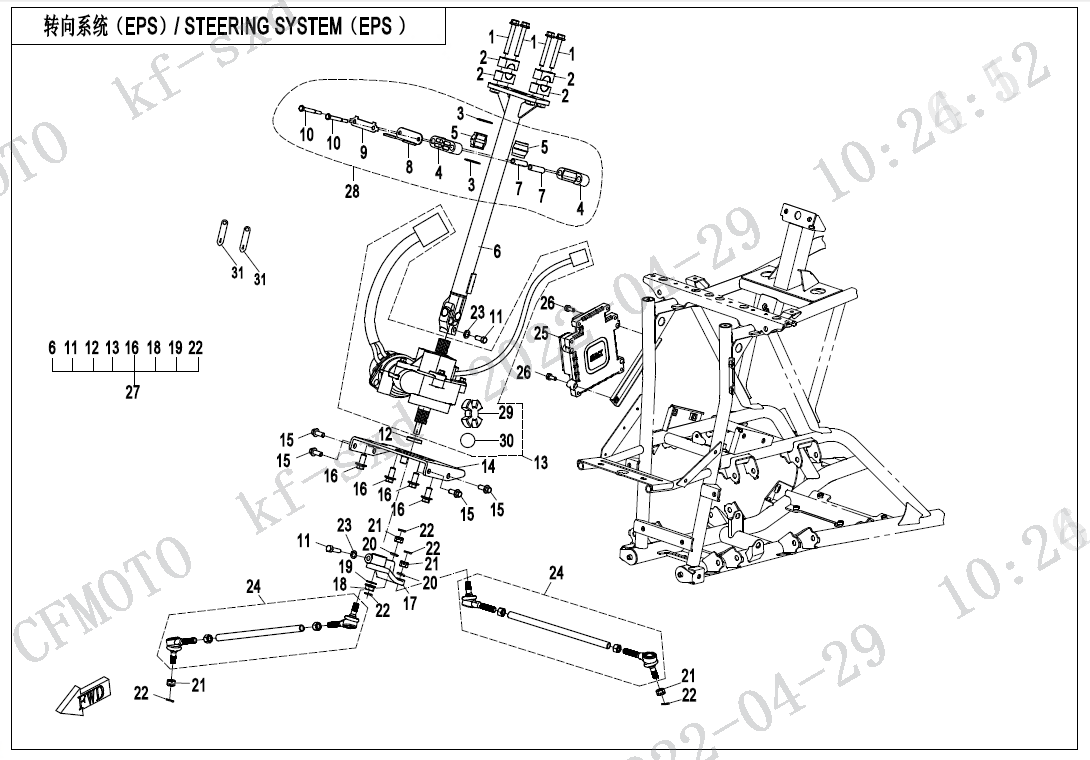

STEERING SYSTEM(EPS) - F10-2-B

STEERING SYSTEM(EPS) - F10-2-B

No.

01
P/N (SKU): 30102-080045810
Part Name: SCREW
Effective: 2022-05-06
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
02
P/N (SKU): 9DSV-100001-6K01
Part Name: HANDLEBAR BLOCK
Effective: 2022-05-06
Alternative parts:
Price: 13,10 € : 13,10 €
-+
03
P/N (SKU): 30502-032800N
Part Name: O-RING
Effective: 2022-05-06
Alternative parts:
Specification: 32x1.8
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2022-05-06
Alternative parts:
Price: 4,60 € : 4,60 €
-+
05
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2022-05-06
Alternative parts:
Price: 8,60 € : 8,60 €
-+
06
P/N (SKU): 9DSV-102100-6R00
Part Name: EPS STEERING SHAFT ASSY
Effective: 2022-05-06
Alternative parts: 9DSV-102100-6R01
Price: 56,52 € : 56,52 €
07
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2022-05-06
Alternative parts:
Price: 2,80 € : 2,80 €
-+
08
P/N (SKU): 7020-100610-10000
Part Name: LINKING PLATE ASSY
Effective: 2022-05-06
Alternative parts:
Price: 2,80 € : 2,80 €
-+
09
P/N (SKU): 7020-100603
Part Name: LOCKING PIECE
Effective: 2022-05-06
Alternative parts:
Price: 1,00 € : 1,00 €
-+
10
P/N (SKU): 30003-080075810
Part Name: BOLT M8x75
Effective: 2022-05-06
Alternative parts:
Specification: M8x75
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 9CR6-102003
Part Name: BOLT M8x35
Effective: 2022-05-06
Alternative parts:
Specification: M8x35
Price: 2,70 € : 2,70 €
-+
12
P/N (SKU): 9CR6-103003
Part Name: SPLINE SLEEVE
Effective: 2022-05-06
Alternative parts:
Price: 2,80 € : 2,80 €
-+
13
P/N (SKU): 9DS#-103300-6000
Part Name: EPS DRIVER
Effective: 2022-05-06
Alternative parts: 9DSV-150820-A200
Price: 694,20 € : 694,20 €
-+
13
P/N (SKU): 9DSV-150820-A200
Part Name: EPS MOTOR
Effective: 2023-10-19
Alternative parts:
Price: 682,90 € : 682,90 €
-+
14
P/N (SKU): 9CR6-102200
Part Name: PLATE, STEERING STEM
Effective: 2022-05-06
Alternative parts:
Price: 20,12 € : 20,12 €
-+
15
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2022-05-06
Alternative parts:
Specification: M8×25
Price: 1,00 € : 1,00 €
-+
16
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2022-05-06
Alternative parts:
Specification: M10x20
Price: 1,80 € : 1,80 €
-+
17
P/N (SKU): 9CR6-102001
Part Name: STEERING ARM
Effective: 2022-05-06
Alternative parts:
Price: 28,10 € : 28,10 €
-+
18
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2022-05-06
Alternative parts:
Specification: M12×1.25
Price: 1,00 € : 1,00 €
-+
19
P/N (SKU): 30306-120112
Part Name: WASHER
Effective: 2022-05-06
Alternative parts:
Specification: φ12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
20
P/N (SKU): 30306-100112
Part Name: WASHER
Effective: 2022-05-06
Alternative parts:
Specification: φ10
Price: 1,00 € : 1,00 €
-+
21
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2022-05-06
Alternative parts:
Specification: M10x1.25
Price: 1,70 € : 1,70 €
-+
22
P/N (SKU): 30903-0252610
Part Name: COTTER PIN
Effective: 2022-05-06
Alternative parts:
Specification: 2.5x26
Price: 1,00 € : 1,00 €
-+
23
P/N (SKU): 30303-080112
Part Name: WASHER
Effective: 2022-05-06
Alternative parts:
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 9DS#-104100-6000
Part Name: STEERING ROD
Effective: 2022-05-06
Alternative parts:
Price: 54,32 € : 54,32 €
-+
25
P/N (SKU): 9DSV-150810-A200
Part Name: EPS CONTROLLER
Effective: 2022-05-06
Alternative parts: 9DSV-150810-A400
Price: 336,50 € : 336,50 €
25
P/N (SKU): 9DSV-150810-A400
Part Name: EPS CONTROLLER
Effective: 2023-07-05
Alternative parts:
Price: 325,80 € : 325,80 €
-+
26
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2022-05-06
Alternative parts:
Specification: M6×30
Price: 1,00 € : 1,00 €
-+
27
P/N (SKU): 9DSV-1033A0
Part Name: EPS SYSTEM ASSY
Effective: 2022-05-06
Alternative parts:
Price: 754,00 € : 754,00 €
-+
28
P/N (SKU): 7020-1006A0
Part Name: BUSHING, STEERING SHAFT
Effective: 2022-05-06
Alternative parts:
Price: 31,60 € : 31,60 €
-+
29
P/N (SKU): 9CR6-103301
Part Name: CUSHION RUBBER
Effective: 2022-05-06
Alternative parts:
Price: 4,70 € : 4,70 €
-+
30
P/N (SKU): 30504-065800N
Part Name: O-RING
Effective: 2022-05-06
Alternative parts:
Price: 2,70 € : 2,70 €
-+
31
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2022-05-06
Alternative parts:
Price: 1,00 € : 1,00 €
-+
