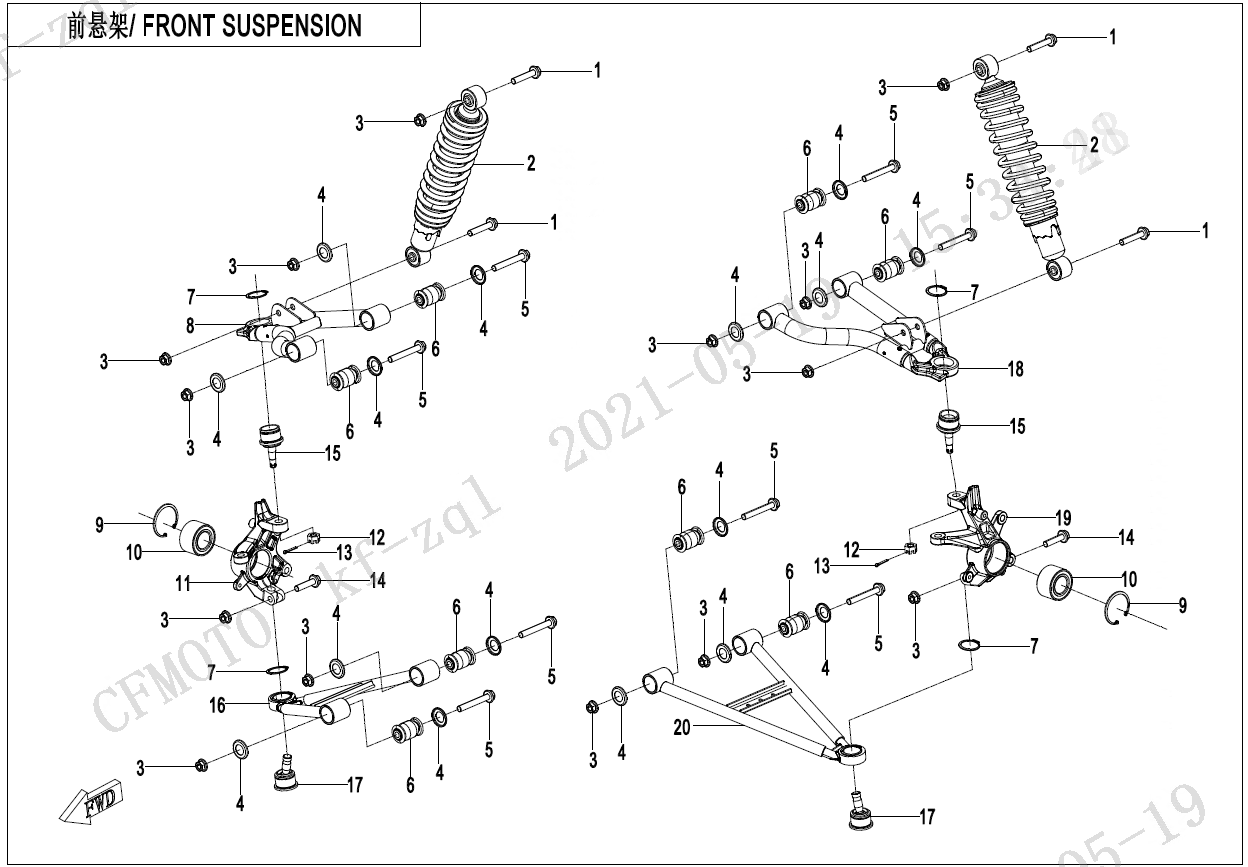

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

01
P/N (SKU): 30006-102055810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
02
P/N (SKU): 9DS#-050600-6000
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: SUPPLIER 2@BLACK
Price: 95,00 € : 95,00 €
-+
03
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9DSV-050900-6K00
Part Name: CUSHION SLEEVE CAP
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9DQV-050900-3000
Part Name: CUSHION SLEEVE ASSY
Effective: 2022-05-06
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
07
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: 34
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 9DSV-050310-6K01
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2022-05-06
Alternative parts: 9DSV-050310-6K01-0BP00
Specification: null
Price: 62,00 € : 62,00 €
09
P/N (SKU): 30800-05505
Part Name: CIRCLIPS FOR HOLES
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
10
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Price: 32,00 € : 32,00 €
-+
11
P/N (SKU): 9DSV-050801-6K00
Part Name: RH STEERING KNUCKLE
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: null
Price: 56,00 € : 56,00 €
12
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 30903-0201610
Part Name: SPLIT PINS
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-102040810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-05-06
Alternative parts: 30006-102045810
Specification: M10×1.25×40
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9010-050700-1000
Part Name: TOP BALL PIN
Effective: 2022-05-06
Remarks: null
Alternative parts: 9DQV-056100-3000
Specification: CCVI
Price: 34,00 € : 34,00 €
-+
16
P/N (SKU): 9DSV-050410-6K01
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2022-05-06
Alternative parts: 9DSV-050410-6K01-0BP00
Specification: ELECTROPHORESIS BLAC
Price: 39,00 € : 39,00 €
-+
17
P/N (SKU): 9010-050800-20000
Part Name: LOWER BALL PIN ASSY.
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Price: 34,00 € : 34,00 €
-+
18
P/N (SKU): 9DSV-050110-6K01
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2022-05-06
Alternative parts: 9DSV-050110-6K01-0BP00
Specification: null
Price: 62,00 € : 62,00 €
19
P/N (SKU): 9DSV-050701-6K00
Part Name: LH STEERING KNUCKLE
Effective: 2022-05-06
Remarks: null
Alternative parts: null
Specification: null
Price: 56,00 € : 56,00 €
20
P/N (SKU): 9DSV-050210-6K01
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2022-05-06
Alternative parts: 9DSV-050210-6K01-0BP00
Specification: ELECTROPHORESIS BLAC
Price: 51,00 € : 51,00 €
-+
