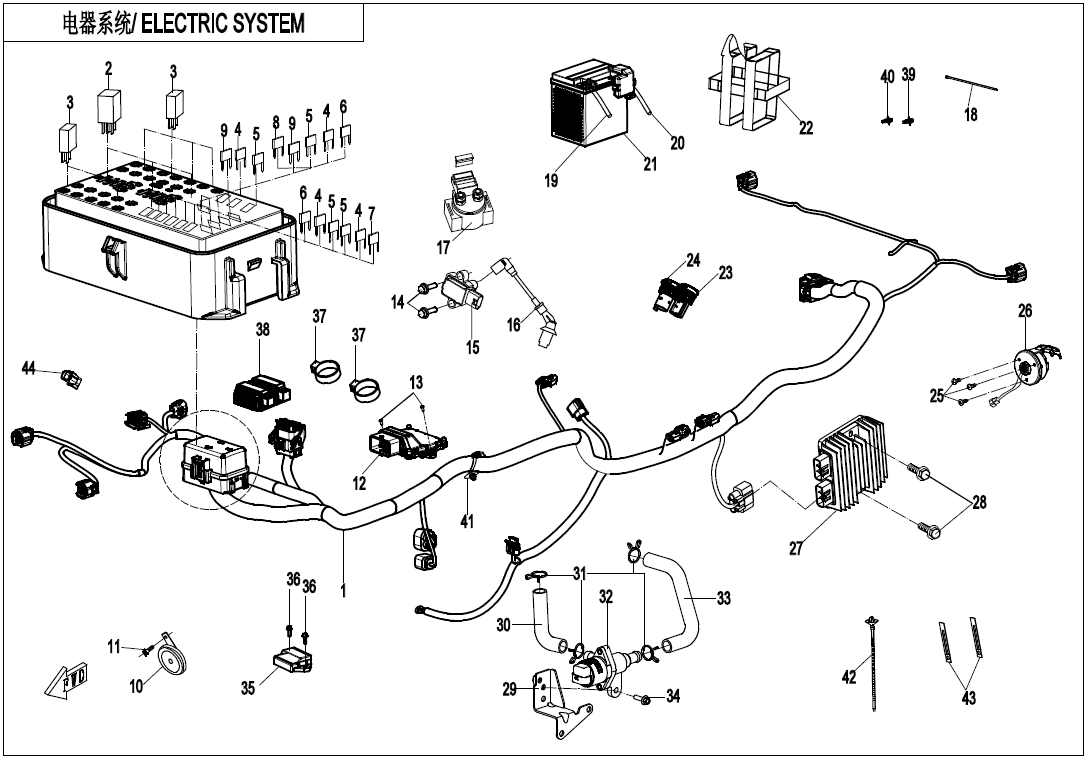

ELECTRIC SYSTEM - F15-1

ELECTRIC SYSTEM - F15-1

No.

01
P/N (SKU): 9CQV-150100-7001
Part Name: MAIN CABLE
Effective: 2022-07-18
Remarks: EU167
Alternative parts:
Specification: MSE 6.0
Price: 503,00 € : 503,00 €
-+
01
P/N (SKU): 9CQV-150100-8201
Part Name: MAIN CABLE
Effective: 2022-07-18
Remarks: ONLY FOR LOF
Alternative parts: 9CQV-150100-8202+9DRV-161000-B000-10
Price: 526,80 € : 526,80 €
01
P/N (SKU): 9CQV-150100-8202
Part Name: MAIN CABLE
Effective: 2022-09-29
Remarks: LOF
Alternative parts:
Price: 668,00 € : 668,00 €
-+
01
P/N (SKU): 9CQV-150100-8000
Part Name: MAIN CABLE
Effective: 2023-04-06
Remarks: EU167
Alternative parts:
Specification: MSE 8.0
Price: 633,50 € : 633,50 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2022-07-18
Alternative parts:
Price: 6,65 € : 6,65 €
-+
03
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2022-07-18
Alternative parts:
Price: 6,10 € : 6,10 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2022-07-18
Alternative parts:
Specification: 15A
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2022-07-18
Alternative parts:
Specification: 10A
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2022-07-18
Alternative parts:
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 5BY0-150301
Part Name: 30A FUSE
Effective: 2022-07-18
Alternative parts:
Price: 0,95 € : 0,95 €
-+
08
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2022-07-18
Alternative parts:
Price: 0,95 € : 0,95 €
-+
09
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2022-07-18
Alternative parts:
Specification: 7.5A
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2022-07-18
Alternative parts:
Price: 7,00 € : 7,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2022-07-18
Alternative parts:
Specification: M8×14
Price: 0,55 € : 0,55 €
-+
12
P/N (SKU): 9CRV-001000-J000
Part Name: ECU ASSY
Effective: 2022-07-18
Remarks: EU167
Alternative parts:
Specification: BOSCH MSE 6.0
Price: 225,70 € : 225,70 €
-+
12
P/N (SKU): 9DRV-001000-D000
Part Name: ECU ASSY.
Effective: 2023-04-06
Remarks: EU167
Alternative parts:
Specification: MSE 8.0
Price: 155,90 € : 155,90 €
-+
13
P/N (SKU): 30105-060016410
Part Name: SCREW
Effective: 2022-07-18
Alternative parts:
Specification: M6x16@COLOR ZINC-PLATED
Price: 0,55 € : 0,55 €
-+
14
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2022-07-18
Alternative parts:
Specification: M6×25
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2022-07-18
Alternative parts:
Price: 35,60 € : 35,60 €
-+
16
P/N (SKU): 0GR0-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2022-07-18
Alternative parts:
Price: 7,00 € : 7,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2022-07-18
Alternative parts:
Price: 24,40 € : 24,40 €
-+
18
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2022-07-18
Alternative parts:
Specification: 5x250
Price: 1,25 € : 1,25 €
-+
19
P/N (SKU): 9CQV-150420-3001
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2022-07-18
Alternative parts:
Price: 26,00 € : 26,00 €
-+
20
P/N (SKU): 9DQV-150410-3001
Part Name: POSITIVE CABLE, BATTERY
Effective: 2022-07-18
Alternative parts:
Price: 37,70 € : 37,70 €
-+
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2022-07-18
Alternative parts:
Specification: DYNAVOLT,12V30Ah
Price: 266,90 € : 266,90 €
-+
22
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2022-07-18
Alternative parts:
Price: 2,95 € : 2,95 €
-+
23
P/N (SKU): 9DSV-150600-6R01
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2022-07-18
Alternative parts:
Price: 45,80 € : 45,80 €
-+
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2022-07-18
Alternative parts:
Price: 20,90 € : 20,90 €
-+
25
P/N (SKU): 30105-050030410
Part Name: SCREW
Effective: 2022-07-18
Alternative parts:
Specification: M5x30@COLOR ZINC TRIVALENT CHROMIUM
Price: 0,55 € : 0,55 €
-+
26
P/N (SKU): 9DQV-151300-3101
Part Name: TRAILER POWER SOCKET
Effective: 2022-07-18
Alternative parts: 9DQV-151300-3100-10
Price: 64,10 € : 64,10 €
27
P/N (SKU): 9DQV-151000-3000-10
Part Name: REGULATOR
Effective: 2022-07-18
Alternative parts: 9DQV-151000-3000-20
Price: 114,70 € : 114,70 €
28
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2022-07-18
Alternative parts:
Specification: M6×30
Price: 0,55 € : 0,55 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2022-07-18
Alternative parts:
Price: 3,70 € : 3,70 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2022-07-18
Alternative parts:
Price: 9,55 € : 9,55 €
-+
31
P/N (SKU): 30601-118010
Part Name: CLAMP
Effective: 2022-07-18
Alternative parts:
Specification: A18
Price: 0,55 € : 0,55 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2022-07-18
Alternative parts:
Price: 88,50 € : 88,50 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2022-07-18
Alternative parts: 9GQA-001001-00001
Price: 15,80 € : 15,80 €
-+
34
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2022-07-18
Alternative parts:
Specification: M6x40
Price: 0,55 € : 0,55 €
-+
35
P/N (SKU): 9DRV-161000-B000
Part Name: FLASHER
Effective: 2022-07-18
Alternative parts: 9DRV-161000-B001
Price: 42,10 € : 42,10 €
-+
35
P/N (SKU): 9DRV-161000-B001-10
Part Name: FLASHER
Effective: 2022-09-27
Alternative parts: 9DRV-161000-B001
Price: 45,10 € : 45,10 €
-+
36
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2022-07-18
Alternative parts:
Specification: M6x20
Price: 0,55 € : 0,55 €
-+
37
P/N (SKU): 6KMV-150901-B001
Part Name: RUBBER RING, T-BOX
Effective: 2022-07-18
Alternative parts: 6KMV-150901-B002
Price: 0,95 € : 0,95 €
-+
38
P/N (SKU): 6NTV-150900-C201-M1
Part Name: T-BOX
Effective: 2022-07-18
Remarks: UAES, Eurasia, Africa and Australia except Turkey
Alternative parts:
Price: 585,30 € : 585,30 €
-+
38
P/N (SKU): 6NQV-150900-B101-M1
Part Name: T-BOX
Effective: 2022-07-18
Remarks: UAES, South America except Brazil
Alternative parts:
Specification: UAES@South America except for Brazil
Price: 585,30 € : 585,30 €
-+
38
P/N (SKU): 6GUV-151800-7501-M1
Part Name: T-BOX
Effective: 2022-08-03
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: 6GUV-151800-7502-M1/SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 464,00 € : 464,00 €
-+
38
P/N (SKU): 6GUV-151800-6801-M1
Part Name: T-BOX
Effective: 2022-08-03
Remarks: AllyTech, Turkey
Alternative parts: SN1V-691100-1501-11
Specification: AllyTech@Turkey
Price: 464,00 € : 464,00 €
38
P/N (SKU): 6GUV-151800-7301-M1
Part Name: T-BOX
Effective: 2022-08-03
Remarks: AllyTech, South America except Brazil
Alternative parts: SN1V-691100-1401-11
Specification: AllyTech@South America except for Brazil
Price: 464,00 € : 464,00 €
38
P/N (SKU): 6GUV-151800-7502-M1
Part Name: T-BOX
Effective: 2023-04-18
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Alternative parts: SN1V-691100-1201-11
Specification: AllyTech@Eurasia and Africa and Australia except Turkey
Price: 420,90 € : 420,90 €
39
P/N (SKU): A000-050015
Part Name: WIRE CLIP, FRONT BRAKE FLUID HOSE
Effective: 2022-07-18
Alternative parts:
Price: 0,55 € : 0,55 €
-+
40
P/N (SKU): CFCV-CBC001-2001-M1
Part Name: CLIP
Effective: 2022-07-18
Alternative parts:
Price: 0,55 € : 0,55 €
-+
41
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG4.7x194
Effective: 2022-07-18
Alternative parts:
Price: 0,95 € : 0,95 €
-+
42
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2022-07-18
Alternative parts:
Price: 0,95 € : 0,95 €
-+
43
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2022-07-18
Alternative parts: 6WWV-030080-8000
Price: 0,55 € : 0,55 €
-+
44
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2022-07-18
Alternative parts:
Price: 4,05 € : 4,05 €
-+
