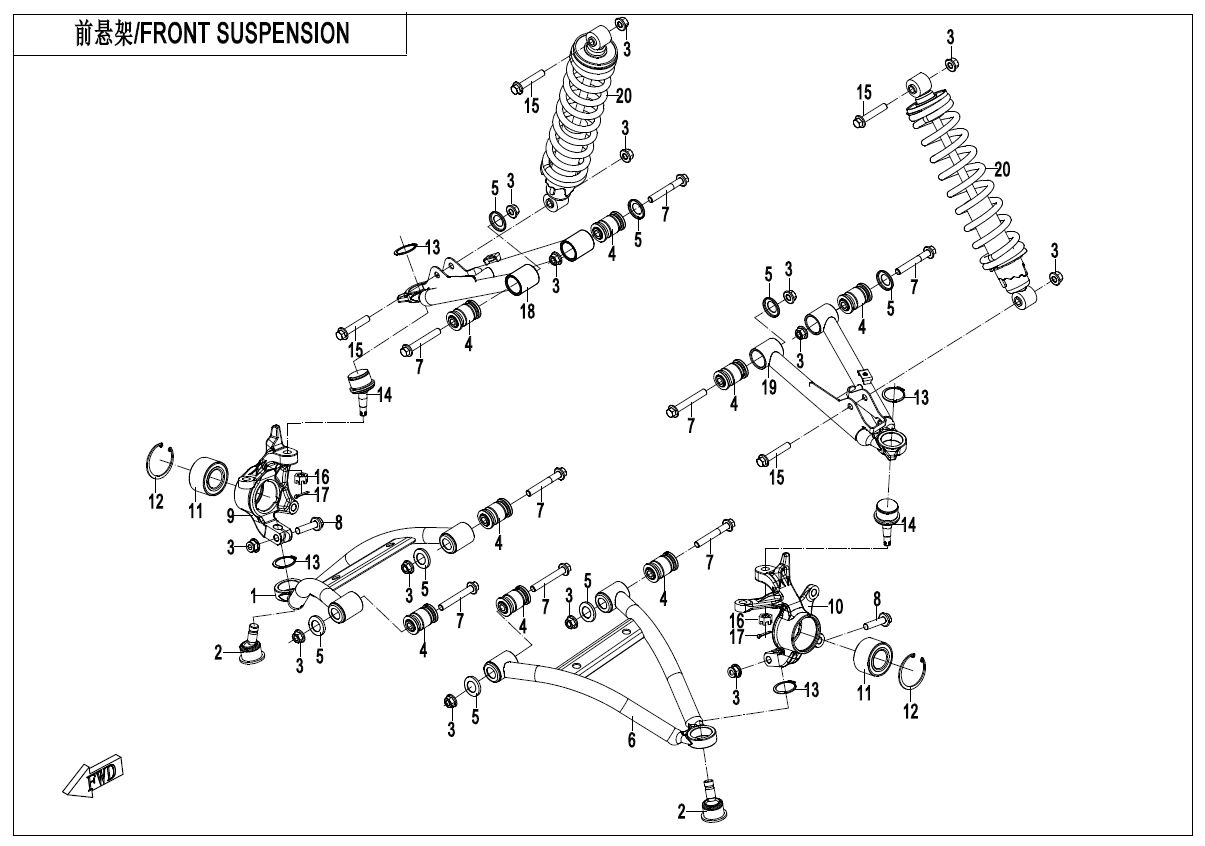

FRONT SUSPENSION - F05 | 2023, ATV, CF400ATR-3L | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): 9DQV-050410-3001

Part Name: FRONT LOWER RH SWING ARM ASSY

Effective: 2022-07-11

Alternative parts: 9DQV-050410-3001-0BP00

Specification: null

Price: 55,00 € : 55,00 €

2

P/N (SKU): 9010-050800-20000

Part Name: LOWER BALL PIN ASSY.

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Price: 34,00 € : 34,00 €

3

P/N (SKU): 30204-102810

Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: M10Ã1.25

Price: 1,50 € : 1,50 €

4

P/N (SKU): 9DQV-050900-3000

Part Name: CUSHION SLEEVE ASSY

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: null

Price: 4,50 € : 4,50 €

5

P/N (SKU): 9DSV-050900-6K00

Part Name: CUSHION SLEEVE CAP

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: null

Price: 1,50 € : 1,50 €

6

P/N (SKU): 9DQV-050210-3001

Part Name: FRONT LOWER LH SWING ARM ASSY

Effective: 2022-07-11

Alternative parts: 9DQV-050210-3001-0BP00

Specification: null

Price: 55,00 € : 55,00 €

7

P/N (SKU): 30006-102070810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

8

P/N (SKU): 30006-102040810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2022-07-11

Remarks: null

Alternative parts: 30006-102045810

Specification: M10Ã1.25Ã40

Price: 1,50 € : 1,50 €

9

P/N (SKU): 9DQV-050801-3000

Part Name: RH STEERING KNUCKLE

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: null

Price: 61,00 € : 61,00 €

10

P/N (SKU): 9DQV-050701-3000

Part Name: LH STEERING KNUCKLE

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: null

Price: 61,00 € : 61,00 €

11

P/N (SKU): 9GQ0-050710

Part Name: BEARING, HUB

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Price: 32,00 € : 32,00 €

12

P/N (SKU): 30800-05505

Part Name: CIRCLIPS FOR HOLES

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: BLACK

Price: 2,50 € : 2,50 €

13

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: 34

Price: 1,50 € : 1,50 €

14

P/N (SKU): 9010-050700-1000

Part Name: TOP BALL PIN

Effective: 2022-07-11

Remarks: null

Alternative parts: 9DQV-056100-3000

Specification: CCVI

Price: 34,00 € : 34,00 €

15

P/N (SKU): 30006-102055810

Part Name: HEXAGON FLANGE BOLTS

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: M10Ã1.25Ã55

Price: 2,00 € : 2,00 €

16

P/N (SKU): 9010-100002

Part Name: 1-TYPE NUT

Effective: 2022-07-11

Alternative parts: null

Specification: M10x1.25

Price: 2,00 € : 2,00 €

17

P/N (SKU): 30903-0201610

Part Name: SPLIT PINS

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: Ï2Ã16

Price: 1,50 € : 1,50 €

18

P/N (SKU): 9DQV-050310-3000

Part Name: FRONT UPPER RH SWING ARM ASSY

Effective: 2022-07-11

Remarks: null

Alternative parts: 9DQV-050310-3000-0BP00

Specification: null

Price: 63,00 € : 63,00 €

19

P/N (SKU): 9DQV-050110-3000

Part Name: FRONT UPPER LH SWING ARM ASSY

Effective: 2022-07-11

Remarks: null

Alternative parts: 9DQV-050110-3000-0BP00

Specification: null

Price: 62,00 € : 62,00 €

20

P/N (SKU): 9DQV-050500-3000

Part Name: FRONT SHOCK ABSORBER ASSY

Effective: 2022-07-11

Remarks: null

Alternative parts: null

Specification: null

Price: 113,00 € : 113,00 €
