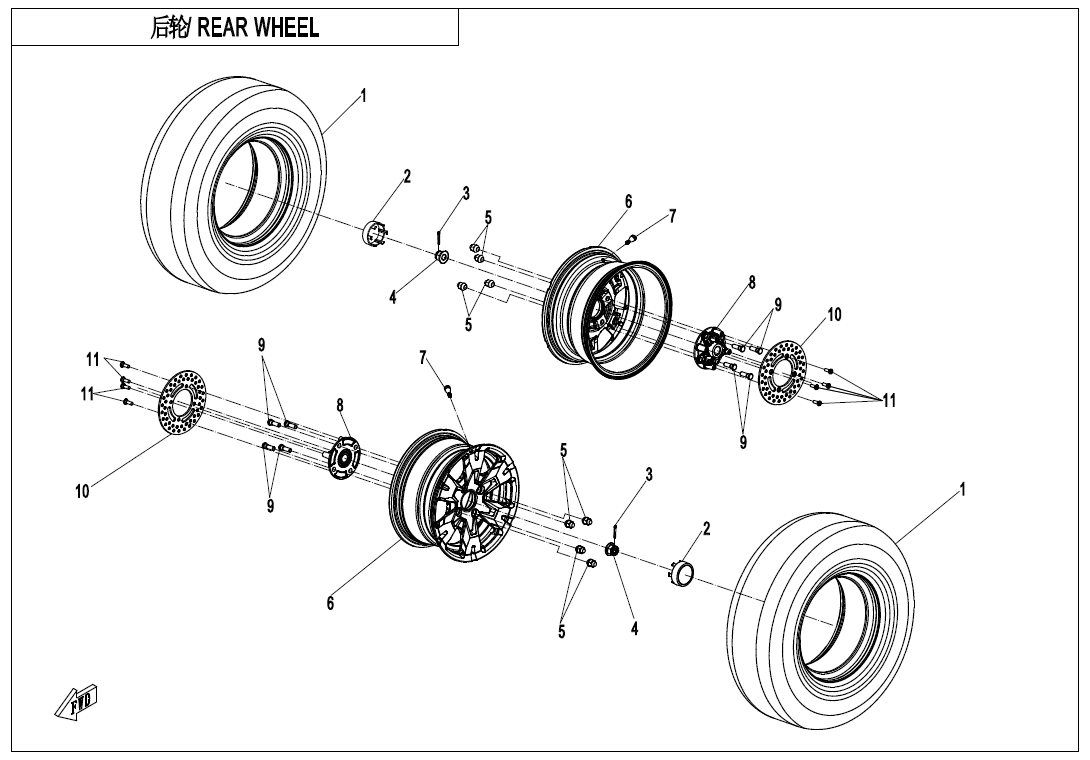

REAR WHEEL - F11

REAR WHEEL - F11

No.

01
P/N (SKU): 30703-1436
Part Name: TIRE
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Specification: NA@27x11-14@Zhengxin
Price: 307,00 € : 307,00 €
02
P/N (SKU): 5ASV-070101-6001
Part Name: DECO COVER
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Specification: ALUMINUM RIM
Price: 14,00 € : 14,00 €
-+
03
P/N (SKU): 30903-0403610
Part Name: COTTER PIN
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Specification: 40x36@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5HY0-110001
Part Name: HEX FLANGE NUT
Effective: 2021-06-22
Remarks: null
Alternative parts: 5HYV-110001-1F00
Price: 5,50 € : 5,50 €
-+
05
P/N (SKU): 5HY0-070203
Part Name: WHEEL NUT
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
06
P/N (SKU): 5HY0-110100-10000
Part Name: REAR RIM
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Specification: MATTE BLACK@14x8.0
Price: 224,00 € : 224,00 €
-+
06
P/N (SKU): 5HY0-110100-20000
Part Name: REAR RIM
Effective: 2021-06-25
Alternative parts: null
Specification: 14x8.0@MATTE BLACK@BRIGHT EDGE@ALUMINUM RIM
Price: 241,00 € : 241,00 €
07
P/N (SKU): 5190-070030-1000
Part Name: INFLATION VALVE
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
08
P/N (SKU): 5HYV-070001-1400
Part Name: FRONT WHEEL HUB
Effective: 2021-07-12
Remarks: null
Alternative parts: null
Specification: null
Price: 42,00 € : 42,00 €
09
P/N (SKU): 5HY0-070201
Part Name: WHEEL BOLT
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
10
P/N (SKU): 5HY0-080001
Part Name: FRONT BRAKE DISC
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Price: 26,00 € : 26,00 €
-+
11
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-06-22
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
