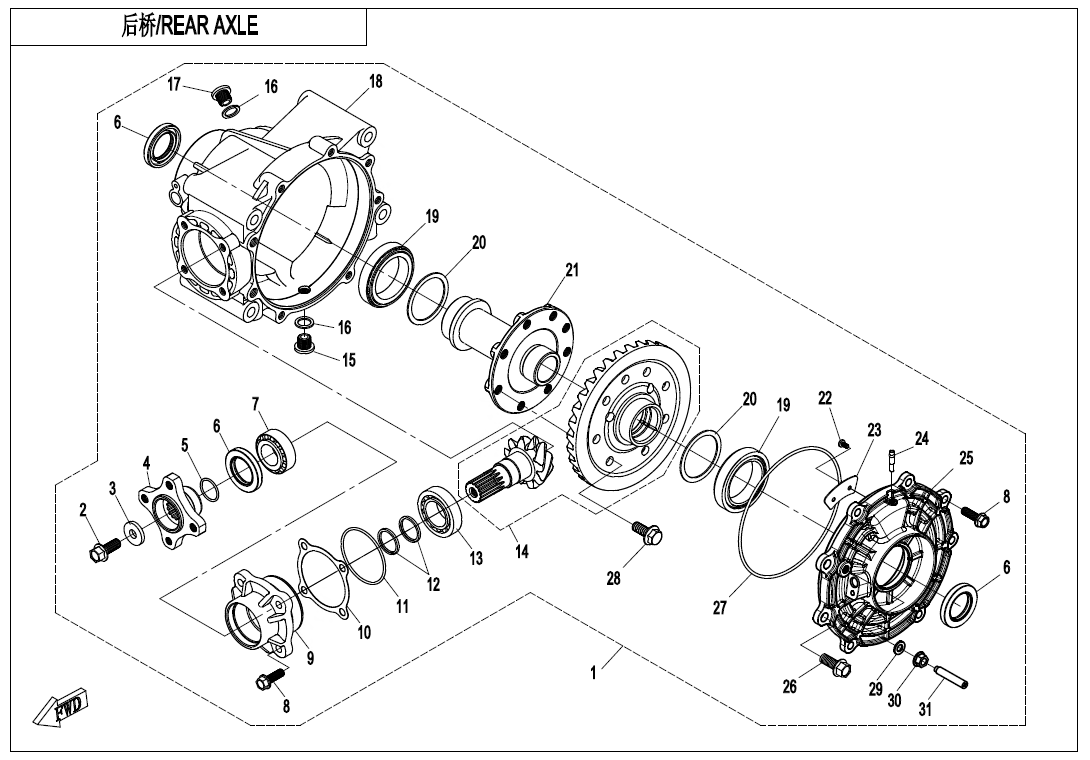

REAR AXLE(NO DIFFERENTIAL) - F33-B | 2022, UTV, CF1000UU |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): Q860-330000-40002

Part Name: REAR GEAR CASE ASSY

Effective: 2021-11-08

Alternative parts: Q860-330000-40003

Price: 620,00 € : 620,00 €

01

P/N (SKU): Q860-330000-40003

Part Name: REAR GEAR CASE ASSY

Effective: 2022-07-20

Remarks: null

Alternative parts: null

Specification: null

Price: 697,00 € : 697,00 €

02

P/N (SKU): 0GR0-062203

Part Name: BOLT

Effective: 2021-11-08

Alternative parts: null

Specification: M10Ã1.25Ã20

Price: 2,00 € : 2,00 €

02

P/N (SKU): Q860-331002

Part Name: BOLT

Effective: 2022-07-20

Alternative parts: null

Specification: M12Ã1.25Ã25

Price: 1,50 € : 1,50 €

03

P/N (SKU): 0GR0-062204

Part Name: WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 10x27.5x4

Price: 2,50 € : 2,50 €

03

P/N (SKU): 0180-331008-00001

Part Name: GASKET

Effective: 2022-07-20

Alternative parts: null

Specification: 13x27.5x4

Price: 2,00 € : 2,00 €

04

P/N (SKU): Q850-331002

Part Name: COUPLER

Effective: 2021-11-08

Alternative parts: Q850-331002-10000

Price: 38,00 € : 38,00 €

05

P/N (SKU): 0800-062205

Part Name: O-RING

Effective: 2021-11-08

Alternative parts: null

Specification: 25x2

Price: 2,00 € : 2,00 €

06

P/N (SKU): 0800-062204

Part Name: OIL SEAL

Effective: 2021-11-08

Alternative parts: null

Specification: 35x50x7

Price: 6,50 € : 6,50 €

07

P/N (SKU): 30409-02500

Part Name: TAPERED ROLLER BEARING

Effective: 2021-11-08

Alternative parts: null

Specification: GB/T297 33005_25Ã47Ã17

Price: 19,00 € : 19,00 €

08

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8Ã28

Effective: 2021-11-08

Alternative parts: 0JYA-062104

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

09

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Effective: 2021-11-08

Alternative parts: null

Price: 21,00 € : 21,00 €

10

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: T=0.30

Price: 2,00 € : 2,00 €

10

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: T=0.20

Price: 2,00 € : 2,00 €

11

P/N (SKU): Q830-310006-10000

Part Name: O-RING

Effective: 2021-11-08

Alternative parts: null

Specification: 55Ã2.5

Price: 3,00 € : 3,00 €

12

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=3.00

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.90

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.80

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.70

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.60

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.50

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.48

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: Q830-311003-00001-00700

Specification: T=2.46

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.44

Price: 1,50 € : 1,50 €

12

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: Q830-311003-00001-00500

Specification: T=2.42

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.40

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.30

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.20

Price: 2,00 € : 2,00 €

12

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4

Effective: 2021-11-08

Alternative parts: null

Specification: T=2.10

Price: 1,50 € : 1,50 €

13

P/N (SKU): 30409-03000

Part Name: TAPERED ROLLER BEARING

Effective: 2021-11-08

Alternative parts: null

Specification: GB/T297 32006_30Ã55Ã17

Price: 17,00 € : 17,00 €

14

P/N (SKU): Q860-3300A0-00002

Part Name: BEVEL GEAR ASSY, REAR GEAR CASE

Effective: 2021-11-08

Alternative parts: Q860-3300A0-00003

Price: 121,00 € : 121,00 €

14

P/N (SKU): Q860-3300A0-00003

Part Name: BEVEL GEAR ASSY, REAR GEAR CASE

Effective: 2022-07-20

Remarks: null

Alternative parts: null

Specification: null

Price: 140,00 € : 140,00 €

15

P/N (SKU): 0180-332100

Part Name: MAGNETIC DRAIN BOLT M14Ã1.25Ã12

Effective: 2021-11-08

Alternative parts: null

Specification: M14x1.25x12

Price: 5,50 € : 5,50 €

16

P/N (SKU): 0180-011006

Part Name: GASKET 14

Effective: 2021-11-08

Alternative parts: null

Specification: 14

Price: 1,50 € : 1,50 €

17

P/N (SKU): 0180-021008-00001

Part Name: BOLT

Effective: 2021-11-08

Alternative parts: null

Specification: M14Ã1.25Ã12

Price: 2,00 € : 2,00 €

18

P/N (SKU): Q860-330001-00002

Part Name: REAR GEAR CASE

Effective: 2021-11-08

Alternative parts: null

Price: 108,00 € : 108,00 €

19

P/N (SKU): 30409-05000

Part Name: TAPERED ROLLER BEARING

Effective: 2021-11-08

Alternative parts: null

Specification: GB/T297 32910 50Ã72Ã15

Price: 48,00 € : 48,00 €

20

P/N (SKU): Q820-330003-00400

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.90

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00300

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.50

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00200

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.30

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00100

Part Name: ADJUSTING WASHER 61Ã50.5

Effective: 2021-11-08

Alternative parts: null

Specification: T=0.10

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00900

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=1.00

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00800

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.98

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00700

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.96

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00600

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.94

Price: 2,00 € : 2,00 €

20

P/N (SKU): Q820-330003-00500

Part Name: ADJUSTING WASHER

Effective: 2021-11-08

Alternative parts: null

Specification: 61Ã50.5@T=0.92

Price: 2,00 € : 2,00 €

21

P/N (SKU): Q850-330003-00001

Part Name: BRACKET

Effective: 2021-11-08

Alternative parts: null

Price: 60,00 € : 60,00 €

22

P/N (SKU): 30105-040008410

Part Name: SCREW M4Ã8

Effective: 2021-11-08

Alternative parts: null

Specification: M4x8@TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

23

P/N (SKU): Q830-310022

Part Name: OIL BAFFLE

Effective: 2021-11-08

Alternative parts: null

Price: 2,00 € : 2,00 €

24

P/N (SKU): 0180-311004-0020

Part Name: BREATHER HOSE JOINT

Effective: 2021-11-08

Alternative parts: null

Price: 1,50 € : 1,50 €

25

P/N (SKU): Q860-330002-00003

Part Name: REAR GEAR CASE COVER

Effective: 2021-11-08

Alternative parts: null

Price: 31,00 € : 31,00 €

26

P/N (SKU): 0180-330004-0010

Part Name: BOLT M10x1.25x25

Effective: 2021-11-08

Alternative parts: 30001-102025810

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €

27

P/N (SKU): 0180-334002

Part Name: O-SEAL RING 151Ã3

Effective: 2021-11-08

Alternative parts: null

Specification: 151x3

Price: 3,50 € : 3,50 €

28

P/N (SKU): 0181-313100-0010

Part Name: BOLT ASSY M10x1.25x22

Effective: 2021-11-08

Alternative parts: null

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

29

P/N (SKU): 0180-334004

Part Name: GASKET

Effective: 2021-11-08

Alternative parts: null

Specification: 8.2x15x1.5

Price: 2,00 € : 2,00 €

30

P/N (SKU): 0180-334006-0010

Part Name: NUT M8

Effective: 2021-11-08

Alternative parts: null

Specification: M8

Price: 1,50 € : 1,50 €

31

P/N (SKU): 0180-334005-0010

Part Name: INNER HEX BOLT

Effective: 2021-11-08

Alternative parts: null

Specification: M8x45@GALVANIZED TRIVALENT CHROMIUM

Price: 2,00 € : 2,00 €
