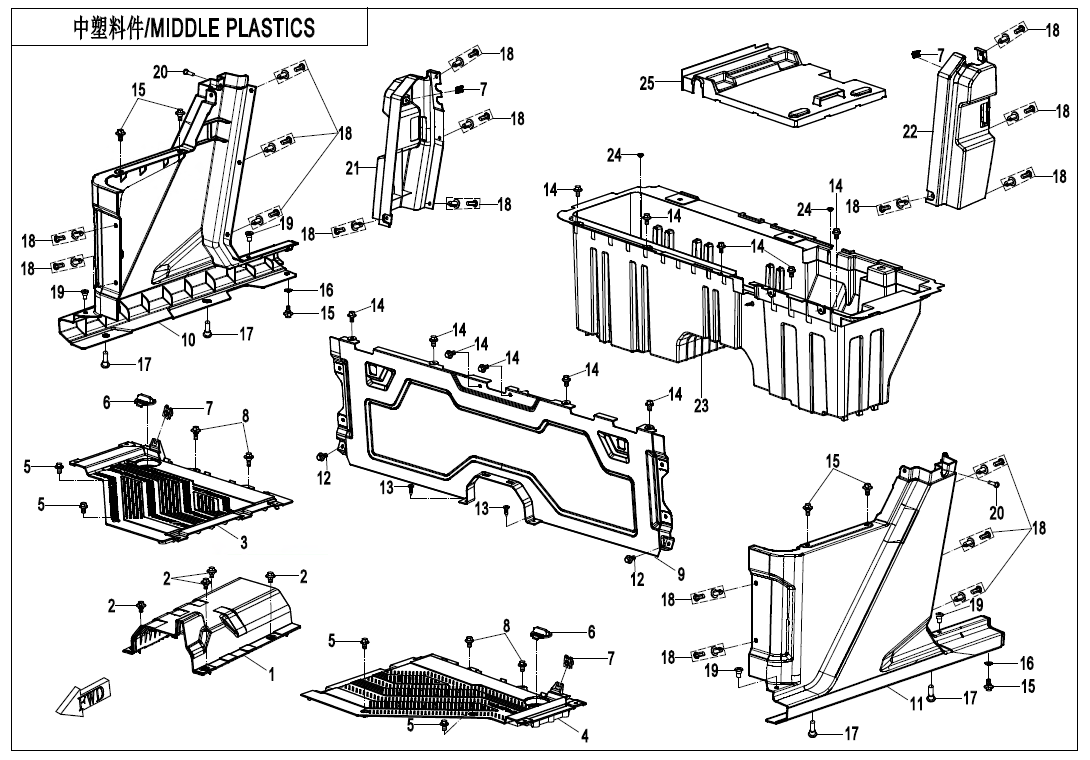

MIDDLE PLASTICS - F04-3-V3

MIDDLE PLASTICS - F04-3-V3

No.

1
P/N (SKU): 5HYV-043053-1000
Part Name: SERVICE COVER, PEDAL
Effective: 2022-10-18
Remarks: null
Alternative parts: 5HYV-043053-1001
Price: 44,00 € : 44,00 €
2
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
3
P/N (SKU): 5HYV-043052-1C00
Part Name: RH FOOT PEDAL
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
4
P/N (SKU): 5HYV-043051-1C00
Part Name: LH FOOT PEDAL
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
5
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
6
P/N (SKU): 5BY0-042032
Part Name: PLUG, PEDAL
Effective: 2022-10-18
Remarks: null
Alternative parts: 5BYV-042032-AD00
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
9
P/N (SKU): 5HY#-043061-1000-11
Part Name: FRONT LOWER BAFFLE, SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 46,00 € : 46,00 €
10
P/N (SKU): 5SYV-044014-6000
Part Name: FRONT RH SIDE PLATE
Effective: 2022-10-18
Alternative parts: 5SYV-044014-6001
Specification: null
Price: 58,00 € : 58,00 €
10
P/N (SKU): 5SYV-044014-6001
Part Name: FRONT RH PANEL
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 55,00 € : 55,00 €
-+
11
P/N (SKU): 5SYV-044013-6000
Part Name: FRONT LH SIDE PLATE
Effective: 2022-10-18
Alternative parts: 5SYV-044013-6001
Specification: null
Price: 58,00 € : 58,00 €
11
P/N (SKU): 5SYV-044013-6001
Part Name: FRONT LH PANEL
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 55,00 € : 55,00 €
12
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30301-060470
Part Name: PLAIN WASHERS
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: φ6
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 5HY0-220113
Part Name: BOLT M8x20
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: M8x20
Price: 2,00 € : 2,00 €
18
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 6NQ#-000202-6001
Part Name: CONVEX BOLT
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 6NQ#-000205-6001
Part Name: CHAIN GUARD SCREW
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5SYV-044042-6000-11
Part Name: RH UPPER PANEL, FRONT SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: 5SYV-044042-6001-11
Specification: null
Price: 15,00 € : 15,00 €
21
P/N (SKU): 5SYV-044042-6001-11
Part Name: RH UPPER PANEL, FRONT SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: 5SYV-044042-6002-11
Specification: NO DOOR
Price: 15,00 € : 15,00 €
22
P/N (SKU): 5SYV-044041-6000-11
Part Name: LH UPPER PANEL, FRONT SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
22
P/N (SKU): 5SYV-044041-6001-11
Part Name: LH UPPER PANEL, FRONT SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: 5SYV-044041-6002-11
Specification: NO DOOR
Price: 15,00 € : 15,00 €
23
P/N (SKU): 5SYV-043061-6000
Part Name: STORAGE BOX, FRONT SEAT
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 164,00 € : 164,00 €
24
P/N (SKU): 6100-030006
Part Name: ADJUSTING HOLE GASKET
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
25
P/N (SKU): 5SYV-043062-6000
Part Name: STORAGE BOX COVER
Effective: 2022-10-18
Remarks: null
Alternative parts: 5SYV-043062-6001
Specification: null
Price: 26,00 € : 26,00 €
25
P/N (SKU): 5SYV-043062-6001
Part Name: INNER PRESS PLATE, STORAGE BOX
Effective: 2022-10-18
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
