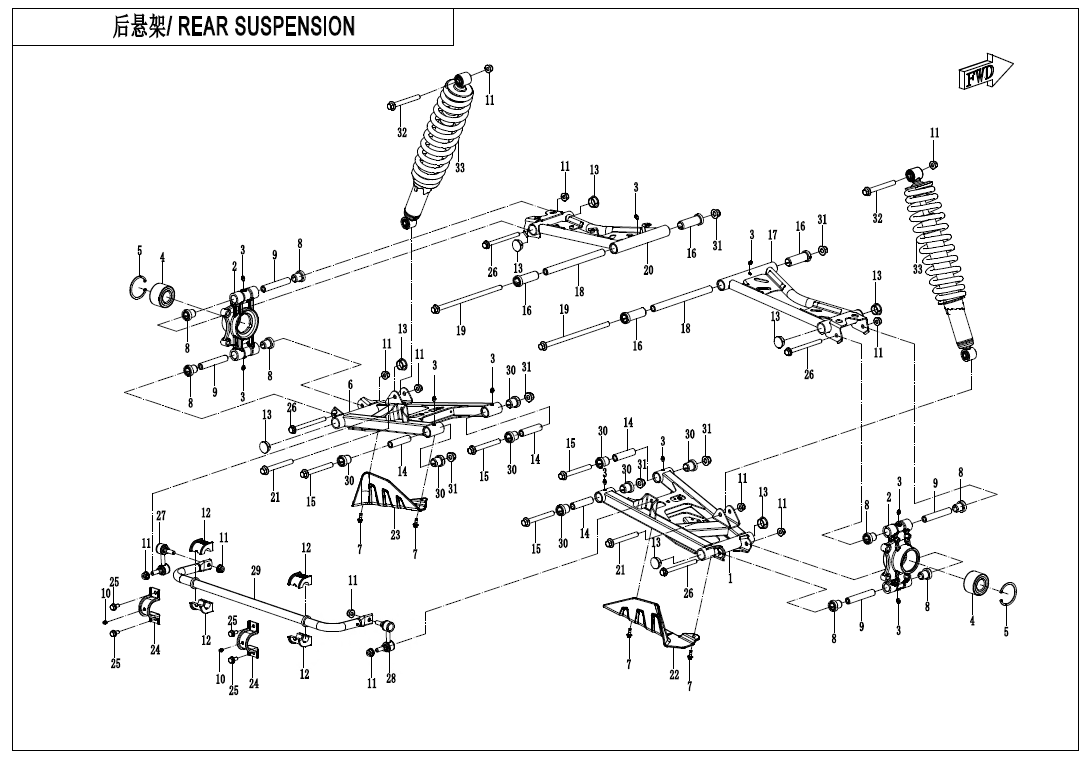

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

01
P/N (SKU): 5SYV-060210-6000
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-11-15
Alternative parts: 5SYV-060210-6001
Specification: ELECTROPHORESIS BLACK
Price: 100,10 € : 100,10 €
02
P/N (SKU): 5HY0-060703
Part Name: REAR BEARING CARRIER
Effective: 2021-11-15
Alternative parts:
Price: 73,20 € : 73,20 €
-+
03
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-11-15
Alternative parts:
Price: 0,75 € : 0,75 €
-+
04
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-11-15
Alternative parts: 30411-03081
Price: 35,60 € : 35,60 €
-+
05
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-11-15
Alternative parts:
Specification: 60
Price: 1,10 € : 1,10 €
-+
06
P/N (SKU): 5SYV-060410-6000
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-11-15
Alternative parts: 5SYV-060410-6001
Specification: ELECTROPHORESIS BLACK
Price: 100,10 € : 100,10 €
07
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-11-15
Alternative parts:
Specification: M6x14
Price: 0,40 € : 0,40 €
-+
08
P/N (SKU): 5ASV-050002-6000
Part Name: SHORT BUSHING
Effective: 2021-11-15
Alternative parts: 5ASV-050002-6001
Price: 3,30 € : 3,30 €
-+
08
P/N (SKU): 5ASV-050002-6001
Part Name: SLEEVE
Effective: 2022-10-07
Alternative parts:
Price: 3,30 € : 3,30 €
-+
09
P/N (SKU): 5HY0-060701-00001
Part Name: MIDDLE SPACER, REAR BEARING CARRIER
Effective: 2021-11-15
Alternative parts:
Price: 3,70 € : 3,70 €
-+
10
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2021-11-15
Alternative parts:
Specification: 90 DEGREE
Price: 0,75 € : 0,75 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2021-11-15
Alternative parts:
Specification: M10×1.25
Price: 0,40 € : 0,40 €
-+
12
P/N (SKU): 7000-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-11-15
Alternative parts:
Price: 3,05 € : 3,05 €
-+
13
P/N (SKU): 9060-060002
Part Name: PLUG, REAR SUSPENSION
Effective: 2021-11-15
Alternative parts:
Price: 1,10 € : 1,10 €
-+
14
P/N (SKU): 5SYV-060201-6000
Part Name: SHORT MIDDLE SPACER, SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 4,05 € : 4,05 €
-+
15
P/N (SKU): 30024-122100110
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Price: 2,60 € : 2,60 €
-+
16
P/N (SKU): 5BY0-050102
Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 2,60 € : 2,60 €
-+
17
P/N (SKU): 5SYV-060110-6000
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-11-15
Alternative parts: 5SYV-060110-6001
Specification: ELECTROPHORESIS BLACK
Price: 62,30 € : 62,30 €
18
P/N (SKU): 5SYV-050101-6000
Part Name: MIDDLE SPACER, SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 7,00 € : 7,00 €
-+
19
P/N (SKU): 5SYV-050103-6000
Part Name: SWING ARM SHAFT
Effective: 2021-11-15
Alternative parts:
Price: 7,00 € : 7,00 €
-+
20
P/N (SKU): 5SYV-060310-6000
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-11-15
Alternative parts: 5SYV-060310-6001
Specification: ELECTROPHORESIS BLACK
Price: 62,30 € : 62,30 €
21
P/N (SKU): 30006-102055110
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Price: 0,75 € : 0,75 €
-+
22
P/N (SKU): 5HYV-060201-1000
Part Name: GUARD, REAR LH SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 5,50 € : 5,50 €
-+
23
P/N (SKU): 5HYV-060401-1000
Part Name: GUARD, REAR RH SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 5,50 € : 5,50 €
-+
24
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-11-15
Alternative parts:
Price: 4,60 € : 4,60 €
-+
25
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Specification: M8×16
Price: 0,40 € : 0,40 €
-+
26
P/N (SKU): 30001-102120110
Part Name: BOLT M10x1.25x120
Effective: 2021-11-15
Alternative parts: 30006-102120810
Specification: M10x1.25x120
Price: 2,20 € : 2,20 €
27
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-11-15
Remarks: CCVI
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
27
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-11-15
Remarks: SOMIC
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
28
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-11-15
Remarks: CCVI
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
28
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-11-15
Remarks: SOMIC
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 27,50 € : 27,50 €
29
P/N (SKU): 5SYV-060610-6000
Part Name: REAR SWAY BAR
Effective: 2021-11-15
Alternative parts:
Price: 64,40 € : 64,40 €
-+
30
P/N (SKU): 5SYV-060202-6000
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-11-15
Alternative parts:
Price: 4,80 € : 4,80 €
-+
31
P/N (SKU): 30204-122910
Part Name: NUT M12x1.25
Effective: 2021-11-15
Alternative parts:
Specification: M12x1.25
Price: 0,40 € : 0,40 €
-+
32
P/N (SKU): 30006-102060110
Part Name: BOLT
Effective: 2021-11-15
Alternative parts:
Price: 1,10 € : 1,10 €
-+
33
P/N (SKU): 5SYV-060500-6000
Part Name: REAR SHOCK ABSORBER
Effective: 2021-11-15
Alternative parts: 5SYV-060500-6001
Price: 190,70 € : 190,70 €
33
P/N (SKU): 5SYV-060500-6001
Part Name: REAR SHOCK ABSORBER
Effective: 2022-03-08
Alternative parts:
Price: 210,80 € : 210,80 €
-+
