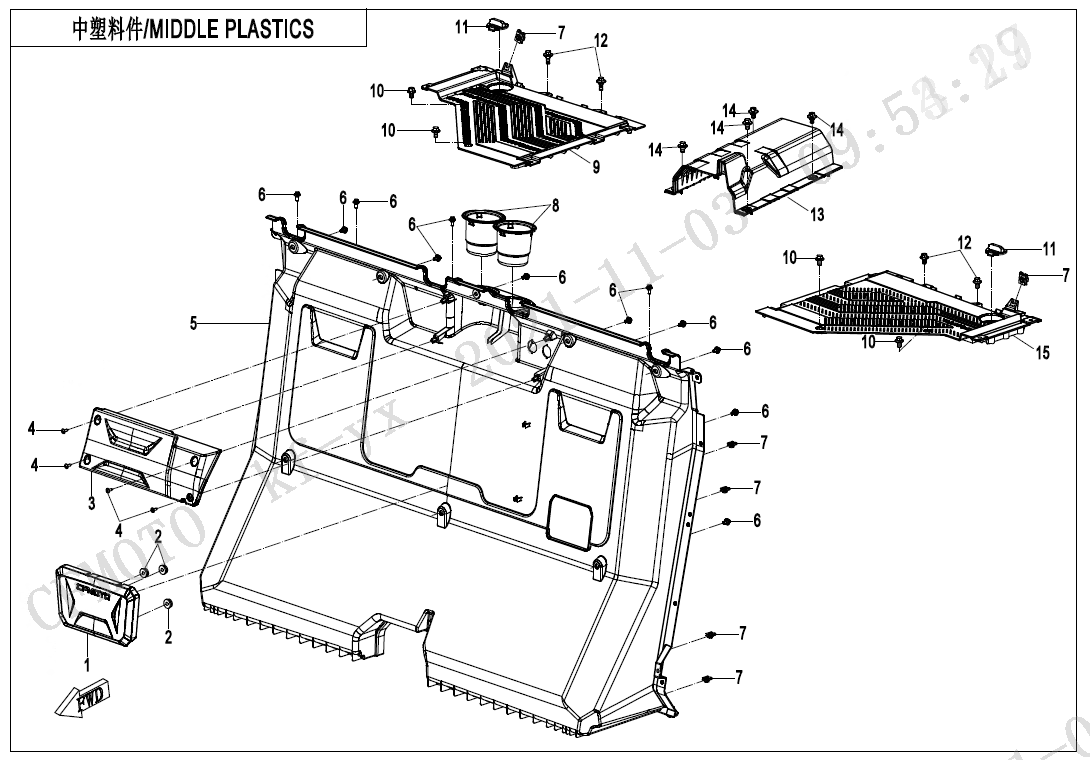

MIDDLE PLASTICS - F04-4

MIDDLE PLASTICS - F04-4

No.

1
P/N (SKU): 5SYV-044032-6000
Part Name: GUARD, FRONT MIDDLE BACKREST
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
2
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
3
P/N (SKU): 5SYV-044034-6000
Part Name: USB COVER
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
4
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW_ST4.2x13
Effective: 2021-11-15
Remarks: null
Alternative parts: 30110-421130010
Specification: PERFORMANCE GRADE 4.8_SURFACE TREATMENT: COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 5SYV-044031-6000
Part Name: BACK SEAT FRONT UPPER DAMPER
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 171,00 € : 171,00 €
6
P/N (SKU): 6NQ#-000202-6001
Part Name: CONVEX BOLT
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
7
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 5SYV-044033-6000
Part Name: BACK SEAT CUP HOLDER
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
9
P/N (SKU): 5HYV-043052-1C00
Part Name: RH FOOT PEDAL
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
10
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
11
P/N (SKU): 5BY0-042032
Part Name: PLUG, PEDAL
Effective: 2021-11-15
Remarks: null
Alternative parts: 5BYV-042032-AD00
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
13
P/N (SKU): 5HYV-043053-1000
Part Name: SERVICE COVER, PEDAL
Effective: 2021-11-15
Remarks: null
Alternative parts: 5HYV-043053-1001
Price: 44,00 € : 44,00 €
14
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
15
P/N (SKU): 5HYV-043051-1C00
Part Name: LH FOOT PEDAL
Effective: 2021-11-15
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
