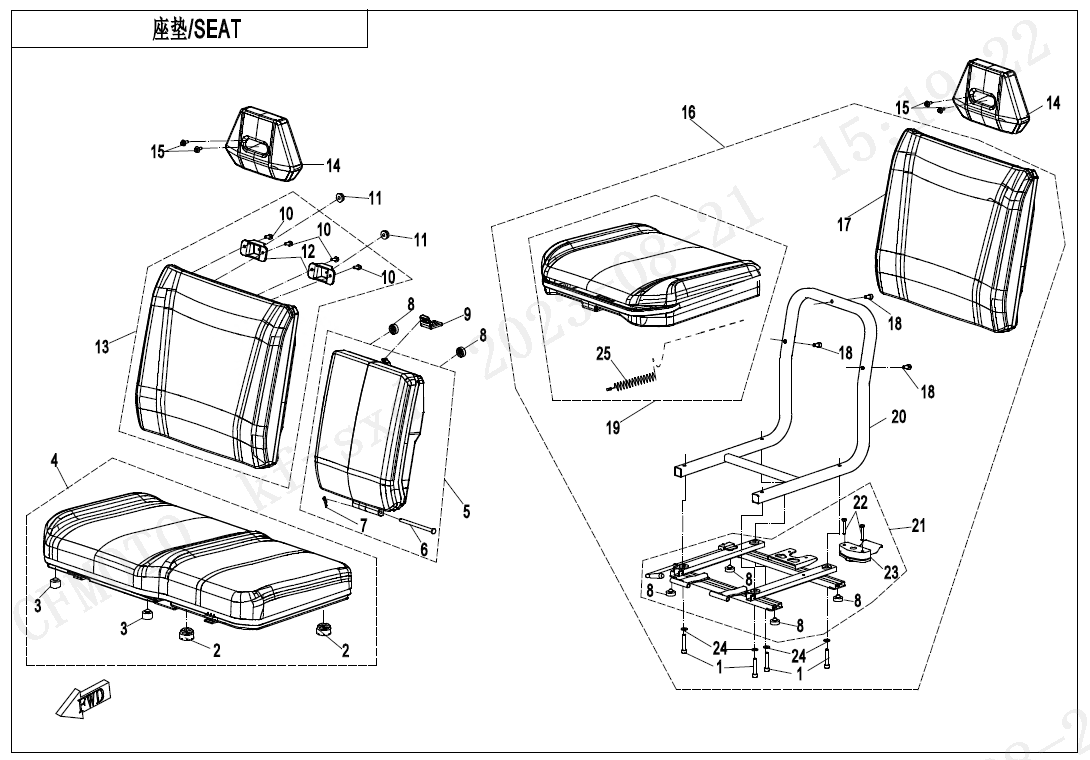

P/N (SKU): 30102-080045170
Part Name: SCREW Effective: 2021-06-28
P/N (SKU): 7020-130001
Part Name: RUBBER SLEEVE, SEAT Effective: 2021-06-28
P/N (SKU): 5HY0-132004
Part Name: RUBBER DAMPER Effective: 2021-06-28
P/N (SKU): 5HY0-132000-40000
Part Name: PASSENGER SEAT Effective: 2021-06-28
Price: 258,10 € : 258,10 €
P/N (SKU): 5HYV-134000-1C00
Part Name: BACKREST Effective: 2021-06-28
P/N (SKU): 30904-080A220
Part Name: PIN SHAFT Effective: 2021-06-28
P/N (SKU): 30910-0183220
Part Name: LOCK PIN Effective: 2021-06-28
P/N (SKU): 6KM0-130205
Part Name: RUBBER DAMPER Effective: 2021-06-28
P/N (SKU): 7020-140002
Part Name: TIE BAND, RACK COVER Effective: 2021-06-28
P/N (SKU): 30006-060016870
Part Name: BOLT Effective: 2021-06-28
Specification: M6Ã16
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT Effective: 2021-06-28
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET Effective: 2021-06-28
P/N (SKU): 5HY#-133000-1000
Part Name: BACKREST ASSY Effective: 2021-06-28
Price: 131,80 € : 131,80 €
P/N (SKU): 5HY0-135000
Part Name: HEAD REST Effective: 2021-06-28
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14 Effective: 2021-06-28
P/N (SKU): 5HY3-131000-20000
Part Name: DRIVER SEAT ASSY Effective: 2021-06-28
Price: 521,00 € : 521,00 €
P/N (SKU): 5HY0-131300-10000
Part Name: MAIN BACKREST Effective: 2021-06-28
Price: 135,50 € : 135,50 €
P/N (SKU): 30102-080016170
Part Name: SCREW M8x16 Effective: 2021-06-28
P/N (SKU): 5HY3-1312A0
Part Name: MAIN SEAT ASSY Effective: 2021-06-28
Price: 245,30 € : 245,30 €
P/N (SKU): 5HY0-131010
Part Name: SUPPORT Effective: 2021-06-28
P/N (SKU): 5HY0-131100-10000
Part Name: BOTTOM BRACKET, MAIN SEAT Effective: 2021-06-28
Price: 129,40 € : 129,40 €
P/N (SKU): 30003-060035840
Part Name: BOLT M6x35 Effective: 2021-06-28
Specification: M6x35
P/N (SKU): 5HY0-131140
Part Name: SEAT LOCK Effective: 2021-06-28
P/N (SKU): 30306-080142
Part Name: WASHER Effective: 2021-06-28
Specification: 8
P/N (SKU): 9GQS-130010
Part Name: FRONT GEAR CASE Effective: 2023-08-21
