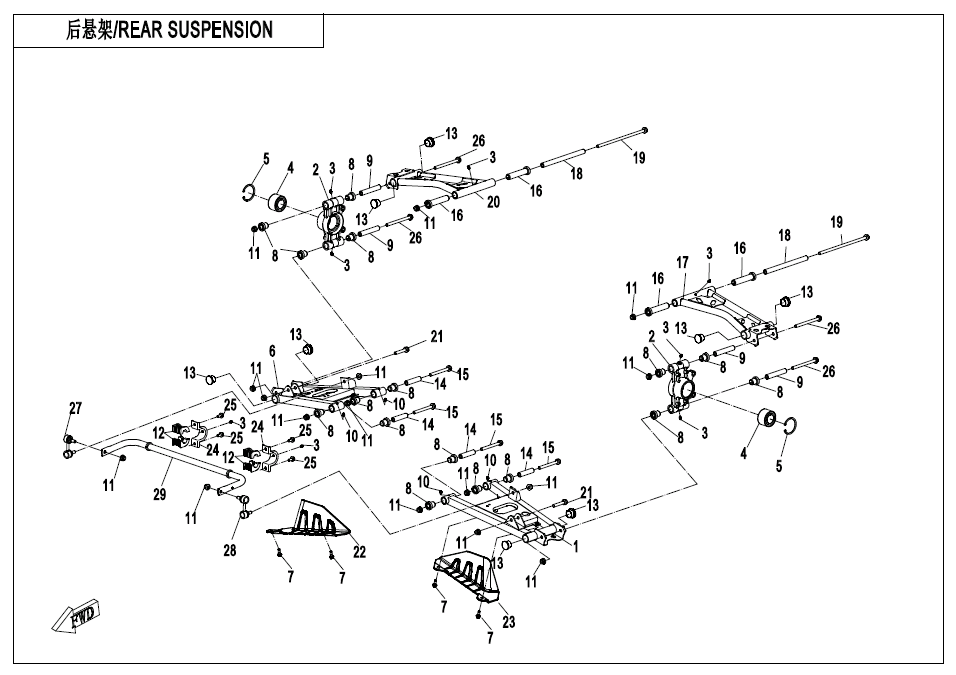

REAR SUSPENSION - F06-1

REAR SUSPENSION - F06-1

No.

01
P/N (SKU): 5HY0-060210
Part Name: REAR LOWER SWING ARM,LH
Effective: 2021-06-28
Alternative parts:
Price: 79,00 € : 79,00 €
-+
02
P/N (SKU): 5HY0-060703
Part Name: REAR BEARING CARRIER
Effective: 2021-06-28
Alternative parts:
Price: 75,00 € : 75,00 €
-+
03
P/N (SKU): 3120100
Part Name: RESERVOIR
Effective: 2021-06-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-06-28
Alternative parts:
Price: 43,00 € : 43,00 €
-+
05
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-06-28
Alternative parts:
Specification: 60
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 5HY0-060410
Part Name: REAR LOWER SWING ARM,RH
Effective: 2021-06-28
Alternative parts:
Price: 79,00 € : 79,00 €
-+
07
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-06-28
Alternative parts: 30006-060012870
Specification: M6x12
Price: 1,50 € : 1,50 €
08
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 5,50 € : 5,50 €
-+
09
P/N (SKU): 5HY0-060701-00001
Part Name: MIDDLE SPACER, REAR BEARING CARRIER
Effective: 2021-06-28
Alternative parts:
Price: 5,00 € : 5,00 €
-+
10
P/N (SKU): 3121400
Part Name: GREASE NOZZLE
Effective: 2021-06-28
Alternative parts:
Specification: 90 DEGREE
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-06-28
Alternative parts:
Specification: M10x1.25
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 7000-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-06-28
Alternative parts:
Price: 3,50 € : 3,50 €
-+
13
P/N (SKU): 9060-060002
Part Name: PLUG, REAR SUSPENSION
Effective: 2021-06-28
Alternative parts:
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 9060-060201-00002
Part Name: MIDDLE SPACER, REAR LOWER SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 3,00 € : 3,00 €
-+
15
P/N (SKU): 30001-102095110
Part Name: BOLT M10x1.25x95
Effective: 2021-06-28
Alternative parts:
Specification: M10x1.25x95
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 9060-050002
Part Name: LONG BUSHING, SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 10,00 € : 10,00 €
-+
17
P/N (SKU): 5HY0-060110
Part Name: REAR UPPER SWING ARM,LH
Effective: 2021-06-28
Alternative parts: 5HY0-060110-00001
Price: 62,00 € : 62,00 €
18
P/N (SKU): 9060-060101-00002
Part Name: MIDDLE SPACER, REAR UPPER SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 7,50 € : 7,50 €
-+
19
P/N (SKU): 4060-060101
Part Name: MOUNTING SHAFT, REAR ARM
Effective: 2021-06-28
Alternative parts:
Price: 5,00 € : 5,00 €
-+
20
P/N (SKU): 5HY0-060310
Part Name: REAR UPPER SWING ARM,RH
Effective: 2021-06-28
Alternative parts:
Price: 96,00 € : 96,00 €
-+
21
P/N (SKU): 30006-102055110
Part Name: BOLT
Effective: 2021-06-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5HYV-060201-1000
Part Name: GUARD, REAR LH SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 6,00 € : 6,00 €
-+
23
P/N (SKU): 5HYV-060401-1000
Part Name: GUARD, REAR RH SWING ARM
Effective: 2021-06-28
Alternative parts:
Price: 6,00 € : 6,00 €
-+
24
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-06-28
Alternative parts:
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 30006-080016810
Part Name: BOLT M8x16
Effective: 2021-06-28
Alternative parts:
Specification: M8x16
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30001-102120110
Part Name: BOLT M10x1.25x120
Effective: 2021-06-28
Alternative parts: 30006-102120810
Specification: M10x1.25x120
Price: 3,00 € : 3,00 €
-+
27
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-06-28
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
27
P/N (SKU): 9010-060800-1000
Part Name: BALL PIN, RH
Effective: 2021-06-28
Remarks: SOMIC
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 28,00 € : 28,00 €
28
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-06-28
Remarks: CCVI
Alternative parts:
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
28
P/N (SKU): 9010-060700-1000
Part Name: BALL PIN, LH
Effective: 2021-06-28
Remarks: SOMIC
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 77,00 € : 77,00 €
29
P/N (SKU): 5HY0-060610
Part Name: REAR SWAY BAR ASSY
Effective: 2021-06-28
Alternative parts:
Price: 65,00 € : 65,00 €
-+
