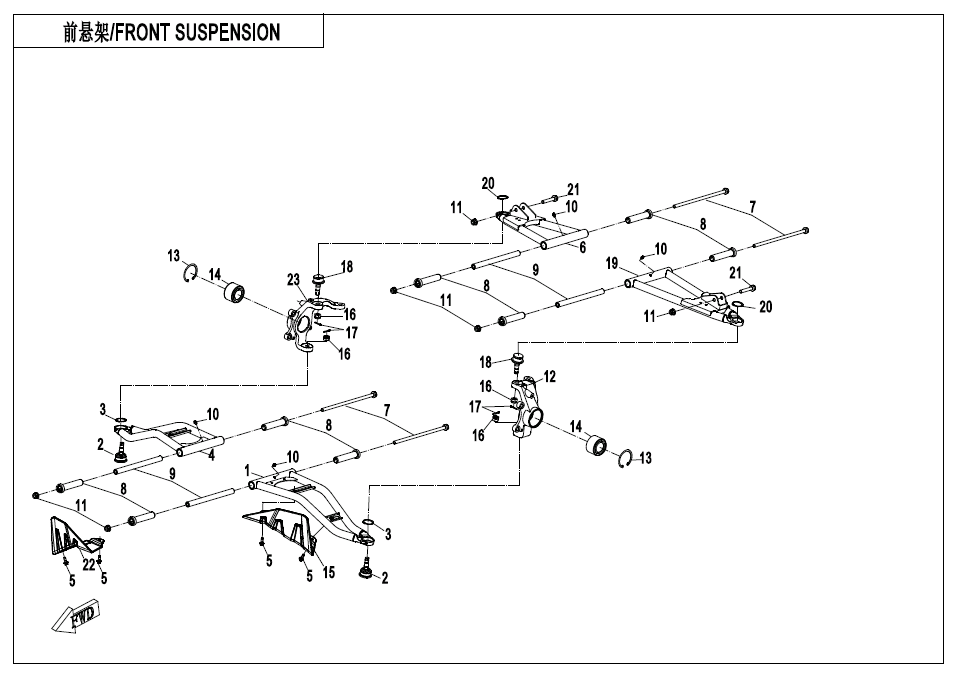

FRONT SUSPENSION - F05-1 | 2022, UTV, CF1000UTR-3 | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY0-050210

Part Name: FRONT LOWER SWING ARM,LH

Effective: 2021-06-28

Alternative parts:

Price: 59,20 € : 59,20 €

02

P/N (SKU): 9060-050900-10000

Part Name: BALL PIN ASSY

Effective: 2021-06-28

Remarks: CCVI

Alternative parts:

Specification: CCVI

Price: 21,60 € : 21,60 €

02

P/N (SKU): 9060-050900

Part Name: BALL PIN ASSY

Effective: 2021-06-28

Remarks: SOMIC

Alternative parts:

Specification: SOMIC

Price: 33,10 € : 33,10 €

03

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT 34

Effective: 2021-06-28

Alternative parts:

Specification: 34

Price: 0,40 € : 0,40 €

04

P/N (SKU): 5HY0-050410

Part Name: FRONT LOWER SWING ARM,RH

Effective: 2021-06-28

Alternative parts:

Price: 59,80 € : 59,80 €

05

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Effective: 2021-06-28

Alternative parts: 30006-060012870

Specification: M6x12

Price: 0,40 € : 0,40 €

06

P/N (SKU): 5HY0-050310

Part Name: FRONT UPPER SWING ARM,RH

Effective: 2021-06-28

Alternative parts:

Price: 60,10 € : 60,10 €

07

P/N (SKU): 4060-060101

Part Name: MOUNTING SHAFT, REAR ARM

Effective: 2021-06-28

Alternative parts:

Price: 4,00 € : 4,00 €

08

P/N (SKU): 9060-050002

Part Name: LONG BUSHING, SWING ARM

Effective: 2021-06-28

Alternative parts:

Price: 9,70 € : 9,70 €

09

P/N (SKU): 9060-060101-00002

Part Name: MIDDLE SPACER, REAR UPPER SWING ARM

Effective: 2021-06-28

Alternative parts:

Price: 5,15 € : 5,15 €

10

P/N (SKU): 3120100

Part Name: RESERVOIR

Effective: 2021-06-28

Alternative parts:

Price: 0,75 € : 0,75 €

11

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Effective: 2021-06-28

Alternative parts:

Specification: M10x1.25

Price: 0,40 € : 0,40 €

12

P/N (SKU): 5HY0-050701-10000

Part Name: LH STEERING KNUCKLE

Effective: 2021-06-28

Alternative parts:

Price: 59,70 € : 59,70 €

13

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Effective: 2021-06-28

Alternative parts:

Specification: 60

Price: 1,10 € : 1,10 €

14

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Effective: 2021-06-28

Alternative parts:

Price: 35,60 € : 35,60 €

15

P/N (SKU): 5ASV-050201-6000

Part Name: GUARD, FRONT LH SWING ARM

Effective: 2021-06-28

Alternative parts:

Price: 5,15 € : 5,15 €

16

P/N (SKU): 30219-122810

Part Name: NUT M12x1.25

Effective: 2021-06-28

Alternative parts:

Specification: M12x1.25

Price: 0,75 € : 0,75 €

17

P/N (SKU): 30903-0322210

Part Name: COTTER PIN

Effective: 2021-06-28

Alternative parts:

Specification: 3.2x22

Price: 0,40 € : 0,40 €

18

P/N (SKU): 9030-050600-10000

Part Name: MAIN PIN ASSY

Effective: 2021-06-28

Remarks: CCVI

Alternative parts:

Specification: CCVI

Price: 20,20 € : 20,20 €

18

P/N (SKU): 9030-050600

Part Name: MAIN PIN ASSY

Effective: 2021-06-28

Remarks: SOMIC

Alternative parts: 9030-050600-10000

Specification: SOMIC

Price: 33,10 € : 33,10 €

19

P/N (SKU): 5HY0-050110

Part Name: FRONT UPPER SWING ARM,LH

Effective: 2021-06-28

Alternative parts:

Price: 58,90 € : 58,90 €

20

P/N (SKU): 30801-03205

Part Name: CIRCLIPS FOR SHAFT 32

Effective: 2021-06-28

Alternative parts:

Specification: 32 A-TYPE

Price: 0,40 € : 0,40 €

21

P/N (SKU): 30006-102055110

Part Name: BOLT

Effective: 2021-06-28

Alternative parts:

Price: 0,75 € : 0,75 €

22

P/N (SKU): 5ASV-050401-6000

Part Name: GUARD, FRONT RH SWING ARM

Effective: 2021-06-28

Alternative parts:

Price: 5,15 € : 5,15 €

23

P/N (SKU): 5HY0-050801-10000

Part Name: RH STEERING KNUCKLE

Effective: 2021-06-28

Alternative parts:

Price: 59,70 € : 59,70 €
