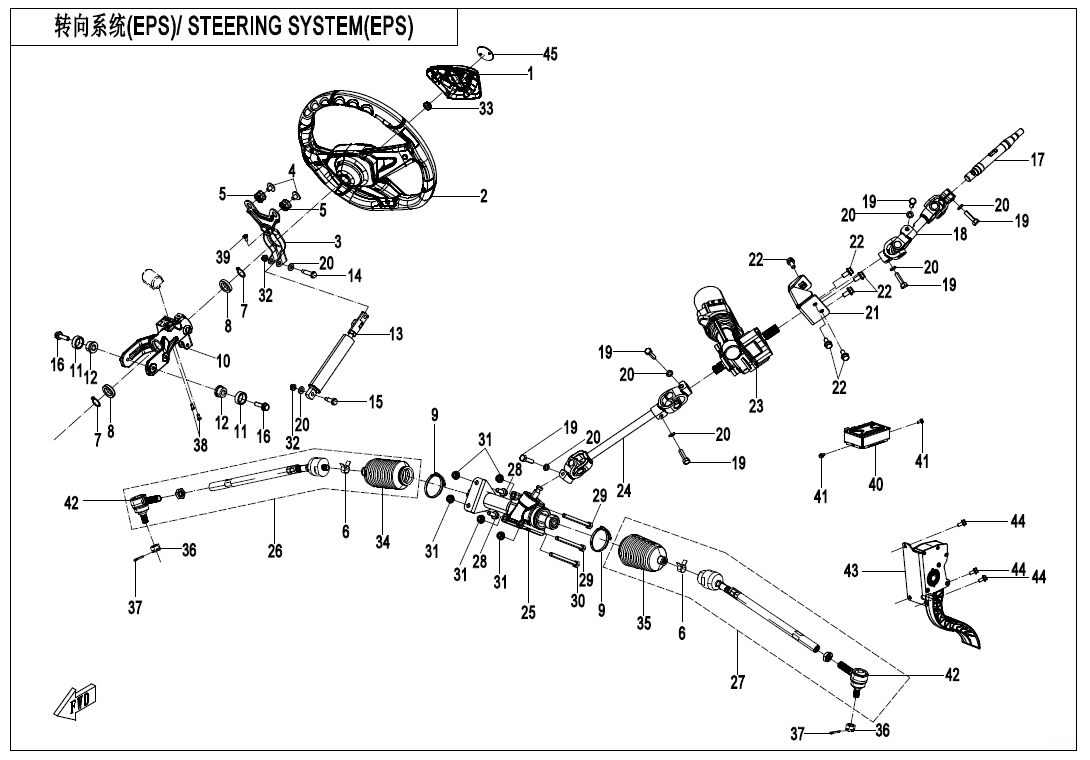

STEERING SYSTEM - F10

STEERING SYSTEM - F10

No.

01
P/N (SKU): 5BYV-102001-A100
Part Name: STEERING WHEEL PRESS COVER
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
02
P/N (SKU): 5BYV-102100-A100
Part Name: STEERING WHEEL
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 113,00 € : 113,00 €
03
P/N (SKU): 5BYV-103501-A100
Part Name: MOUNTING BRACKET, DASHBOARD
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 7,00 € : 7,00 €
04
P/N (SKU): 5020-031002
Part Name: RUBBER SLEEVE LINER
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: FOR FRONT LICENSE BRACKET
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 5BY0-104102
Part Name: CLAMP
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
07
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: 20
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30400-02005
Part Name: DEEP GROOVE BALL BEARING
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
09
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
10
P/N (SKU): 5BY0-102004
Part Name: STEERING WHEEL BRACKET
Effective: 2022-02-26
Remarks: null
Alternative parts: 5BYV-102004-AD00
Specification: FOR STEERING WHEEL LOCK
Price: 34,00 € : 34,00 €
11
P/N (SKU): 9060-100008-00001
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
13
P/N (SKU): 5BY0-100200-00001
Part Name: GAS SPRING ASSY
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 38,00 € : 38,00 €
14
P/N (SKU): 9060-102002-00001
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2022-02-26
Remarks: null
Alternative parts: 5HYV-103001-6000
Price: 2,00 € : 2,00 €
15
P/N (SKU): 9060-102003-00002
Part Name: AIR SPRING LOWER FIXED BOLT
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
16
P/N (SKU): 30006-080030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
17
P/N (SKU): 7000-100001
Part Name: STEERING COLUMN
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
18
P/N (SKU): 5BY0-103100
Part Name: UPPER STEERING UNIVERSAL SHAFT
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 59,00 € : 59,00 €
-+
19
P/N (SKU): 30004-080030810
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M8x30
Price: 1,50 € : 1,50 €
20
P/N (SKU): 30303-080112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5BY0-103400
Part Name: MOUNTING BRACKET, EPS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 17,00 € : 17,00 €
22
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
23
P/N (SKU): 7030-106200-00001
Part Name: EPS ASSY
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 607,00 € : 607,00 €
-+
24
P/N (SKU): 5BY0-103200
Part Name: LOWER STEERING UNIVERSAL SHAFT
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 63,00 € : 63,00 €
25
P/N (SKU): 5BY0-104060
Part Name: STEERING MOTOR
Effective: 2022-02-26
Remarks: null
Alternative parts: 5BYV-104060-1000
Price: 110,00 € : 110,00 €
26
P/N (SKU): 5BYV-104200-A100
Part Name: RH STEERING ROD ASSY
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 83,00 € : 83,00 €
27
P/N (SKU): 5BYV-104100-A100
Part Name: LH STEERING ROD ASSY
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 83,00 € : 83,00 €
28
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30019-080090810
Part Name: HEXAGON HEAD BOLTS
Effective: 2022-02-26
Alternative parts: null
Specification: M8x90@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
30
P/N (SKU): 30006-080080810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: 30006-080080840
Specification: M8x80@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5BY0-104201
Part Name: RH PROTECTION SLEEVE, TIE ROD
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
35
P/N (SKU): 5BY0-104101
Part Name: LH PROTECTION SLEEVE, TIE ROD
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 17,00 € : 17,00 €
-+
36
P/N (SKU): 30219-122810
Part Name: HEXAGON THIN SLOTTED NUTS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 30107-060012410
Part Name: CROSS-RECESSED COUNTERSUNK HEAD SCREWS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M6x12@COLOR ZINC-PLATED
Price: 2,00 € : 2,00 €
39
P/N (SKU): 30105-050010410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: M5x10
Price: 1,50 € : 1,50 €
40
P/N (SKU): 5BY0-150800
Part Name: EPS CONTROLLER
Effective: 2022-02-26
Remarks: null
Alternative parts: 5BYV-150810-1300
Price: 336,00 € : 336,00 €
-+
40
P/N (SKU): 5BYV-150810-1300
Part Name: EPS CONTROLLER
Effective: 2022-11-09
Remarks: null
Alternative parts: null
Specification: null
Price: 326,00 € : 326,00 €
41
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
42
P/N (SKU): 5BY0-104120
Part Name: BALL JOINT, STEERING SQM
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
43
P/N (SKU): 5BYV-152800-1000-M1
Part Name: E-THROTTLE PEDAL
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 136,00 € : 136,00 €
-+
44
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
45
P/N (SKU): 5ASV-190019-6000
Part Name: CFMOTO LOGO
Effective: 2022-02-26
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
