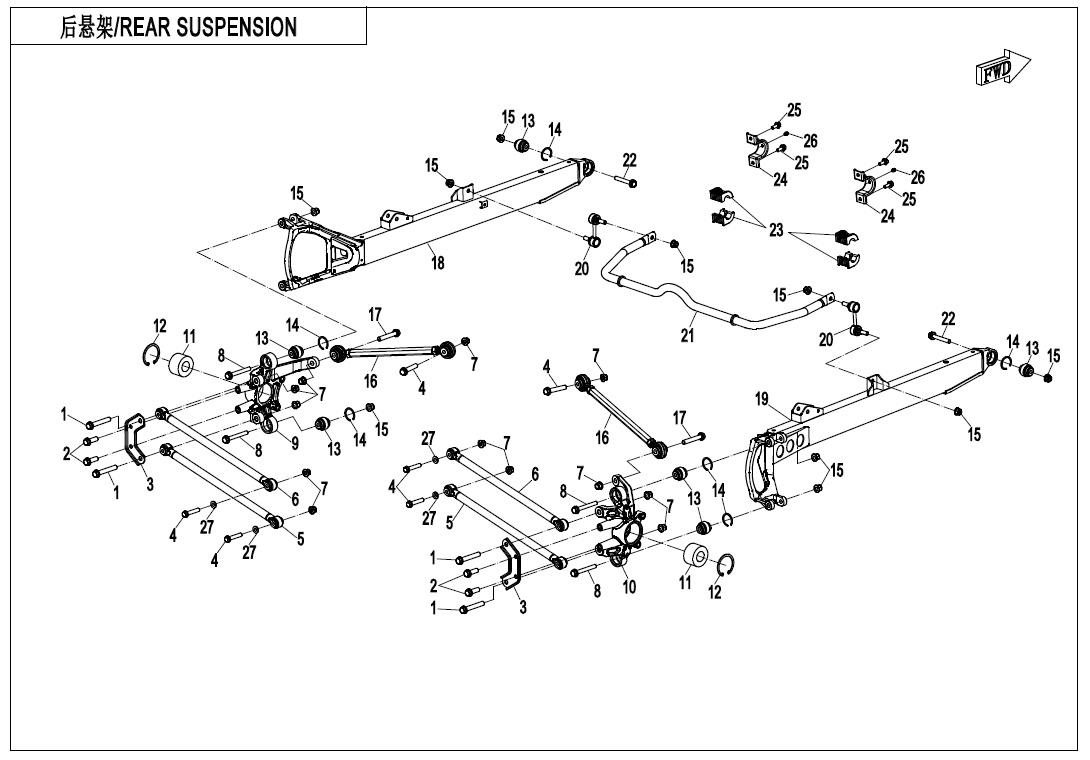

REAR SUSPENSION - F06-1

REAR SUSPENSION - F06-1

No.

01
P/N (SKU): 5BY0-060703
Part Name: REAR TIE ROD MOUNTING SHAFT
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
02
P/N (SKU): 30006-102030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M10×1.25×30
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 5BY0-060702
Part Name: REAR WHEEL SHAFT CARRIER MOUNTING BRACKET
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 6,00 € : 6,00 €
04
P/N (SKU): 30001-122060160
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M10x1.25x60
Price: 3,50 € : 3,50 €
05
P/N (SKU): 5BYA-060400
Part Name: REAR WSING ARM LOWER TIE ROD
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 75,00 € : 75,00 €
-+
06
P/N (SKU): 5BYA-060300
Part Name: REAR WSING ARM UPPER TIE ROD
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 84,00 € : 84,00 €
-+
07
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 30006-102080110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
09
P/N (SKU): 5BY0-060701
Part Name: REAR LH WHEEL SHAFT SUPPORT
Effective: 2021-06-21
Alternative parts: 5BYV-060701-1000
Price: 103,00 € : 103,00 €
-+
09
P/N (SKU): 5BYV-060701-1000
Part Name: REAR LH WHEEL SHAFT SUPPORT
Effective: 2022-03-21
Remarks: null
Alternative parts: null
Specification: null
Price: 103,00 € : 103,00 €
10
P/N (SKU): 5BY0-060801
Part Name: REAR RH AXLE SEAT
Effective: 2021-06-21
Alternative parts: 5BYV-060801-1000
Price: 103,00 € : 103,00 €
-+
10
P/N (SKU): 5BYV-060801-1000
Part Name: SUPPORT, REAR RH WHEEL SHAFT
Effective: 2022-03-21
Remarks: null
Alternative parts: null
Specification: null
Price: 103,00 € : 103,00 €
11
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-06-21
Remarks: null
Alternative parts: 30411-03081
Price: 43,00 € : 43,00 €
12
P/N (SKU): 30800-06005
Part Name: CIRCLIPS FOR HOLES
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: 60
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 5BY0-060120
Part Name: BEARING, REAR SWING ARM
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 24,00 € : 24,00 €
-+
14
P/N (SKU): 5BY0-060102
Part Name: BEARING RETAINER, SWING ARM
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
15
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5BYA-060900
Part Name: REAR SWING ARM ADJUSTING LEVER ASSY
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 77,00 € : 77,00 €
-+
17
P/N (SKU): 30001-122070160
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M12x1.25x70
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 5BYA-060110
Part Name: REAR LH SWING ARM ASSY
Effective: 2021-06-21
Alternative parts: 5BYV-060110-2000
Specification: ELECTROPHORESIS BLACK
Price: 191,00 € : 191,00 €
-+
18
P/N (SKU): 5BYV-060110-2000
Part Name: REAR LH SWING ARM ASSY
Effective: 2022-03-29
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 330,00 € : 330,00 €
19
P/N (SKU): 5BYA-060210
Part Name: REAR RH SWING ARM ASSY
Effective: 2021-06-21
Alternative parts: 5BYV-060210-2000
Price: 191,00 € : 191,00 €
-+
19
P/N (SKU): 5BYV-060210-2000
Part Name: REAR RH SWING ARM ASSY
Effective: 2022-03-29
Remarks: null
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 330,00 € : 330,00 €
20
P/N (SKU): 5BYA-060620
Part Name: SWAY BAR BALL PIN
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 27,00 € : 27,00 €
-+
21
P/N (SKU): 5BYA-060610
Part Name: REAR SWAY BAR ASSY
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 69,00 € : 69,00 €
-+
22
P/N (SKU): 30006-102060110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 5BYA-060003
Part Name: SEAT, SWAY BAR
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
24
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
26
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30306-120112
Part Name: PLAIN WASHERS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: φ12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
