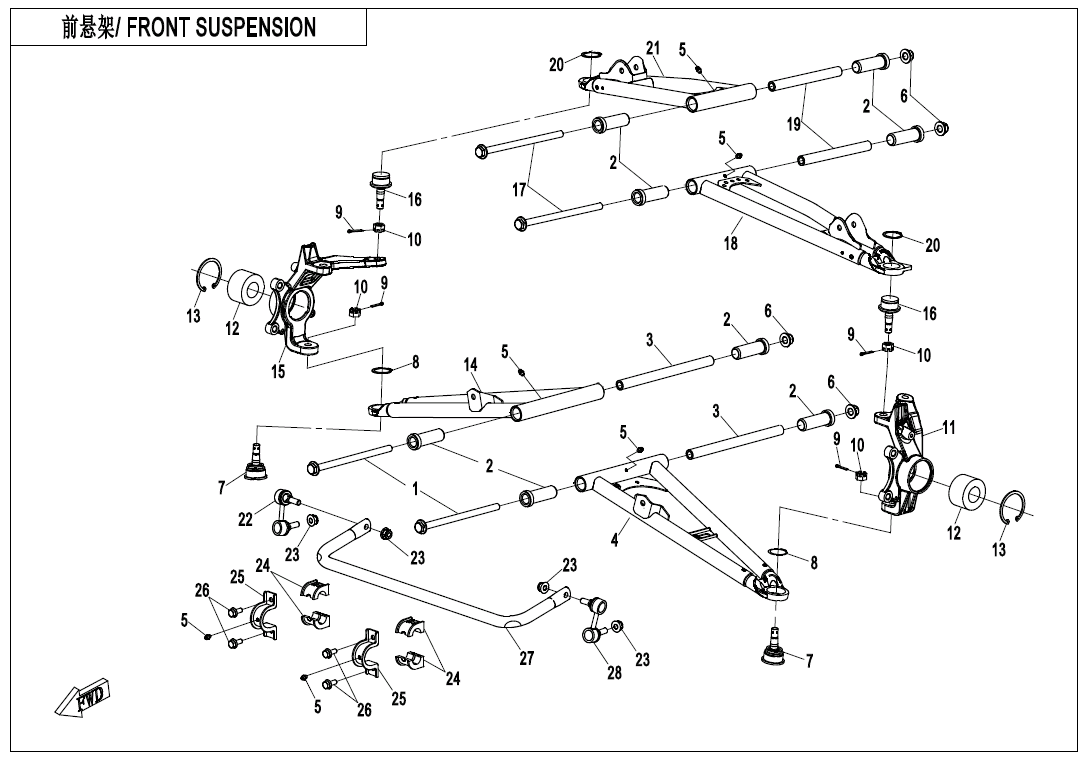

FRONT SUSPENSION - F05-1

No.

01
P/N (SKU): 5BY0-050203
Part Name: MOUNTING SHAFT, FRONT LOWER SWING ARM
Effective: 2021-06-21
Alternative parts:
Price: 6,60 € : 6,60 €
-+
02
P/N (SKU): 5BY0-050102
Part Name: DAMPING SLEEVE, FRONT UPPER SWING ARM
Effective: 2021-06-21
Alternative parts:
Price: 2,60 € : 2,60 €
-+
03
P/N (SKU): 5BY0-050201
Part Name: MIDDLE SPACER, FRONT LOWER SWING ARM
Effective: 2021-06-21
Alternative parts:
Price: 8,80 € : 8,80 €
-+
04
P/N (SKU): 5BYA-050210
Part Name: FRONT LOWER SWING ARM ASSY., LH
Effective: 2021-06-21
Alternative parts:
Price: 57,10 € : 57,10 €
-+
05
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-06-21
Alternative parts:
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Effective: 2021-06-21
Alternative parts:
Specification: M12x1.25
Price: 1,05 € : 1,05 €
-+
07
P/N (SKU): 9060-050900-10000
Part Name: BALL PIN ASSY
Effective: 2021-06-21
Alternative parts:
Specification: CCVI
Price: 21,60 € : 21,60 €
-+
08
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-06-21
Alternative parts:
Specification: 34
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2021-06-21
Alternative parts:
Specification: 3.2x22
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 30219-122810
Part Name: NUT M12x1.25
Effective: 2021-06-21
Alternative parts:
Specification: M12x1.25
Price: 0,95 € : 0,95 €
-+
11
P/N (SKU): 5BYA-050701
Part Name: LH STEERING KNUCKLE
Effective: 2021-06-21
Alternative parts:
Price: 60,10 € : 60,10 €
-+
12
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-06-21
Alternative parts: 30411-03081
Price: 41,00 € : 41,00 €
-+
13
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-06-21
Alternative parts:
Specification: 60
Price: 1,25 € : 1,25 €
-+
14
P/N (SKU): 5BYA-050410
Part Name: FRONT LOWER SWING ARM ASSY., RH
Effective: 2021-06-21
Alternative parts:
Price: 57,10 € : 57,10 €
-+
15
P/N (SKU): 5BYA-050801
Part Name: RH STEERING KNUCKLE
Effective: 2021-06-21
Alternative parts:
Price: 60,10 € : 60,10 €
-+
16
P/N (SKU): 9030-050600-10000
Part Name: MAIN PIN ASSY
Effective: 2021-06-21
Alternative parts:
Specification: CCVI
Price: 20,20 € : 20,20 €
-+
17
P/N (SKU): 5BY0-050103
Part Name: MOUNTING SHAFT, FRONT UPPER SWING ARM
Effective: 2021-06-21
Alternative parts:
Price: 5,15 € : 5,15 €
-+
18
P/N (SKU): 5BYA-050110
Part Name: FRONT UPPER SWING ARM ASSY., LH
Effective: 2021-06-21
Alternative parts: 5BYV-050110-C000
Price: 57,10 € : 57,10 €
19
P/N (SKU): 5BY0-050101
Part Name: MIDDLE SPACER, FRONT UPPER SWING ARM
Effective: 2021-06-21
Alternative parts:
Price: 7,35 € : 7,35 €
-+
20
P/N (SKU): 30801-03205
Part Name: CIRCLIPS FOR SHAFT
Effective: 2021-06-21
Alternative parts:
Specification: 32 A-TYPE
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 5BYA-050310
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2021-06-21
Alternative parts: 5BYV-050310-C000
Specification: ELECTROPHORESIS BLAC
Price: 57,10 € : 57,10 €
-+
22
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-06-21
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
23
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
24
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-06-21
Alternative parts:
Price: 2,20 € : 2,20 €
-+
25
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-06-21
Alternative parts:
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-06-21
Alternative parts:
Specification: M8x16
Price: 0,55 € : 0,55 €
-+
27
P/N (SKU): 5BYA-050610
Part Name: FRONT SWAY BAR
Effective: 2021-06-21
Alternative parts:
Price: 57,10 € : 57,10 €
-+
28
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-06-21
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
