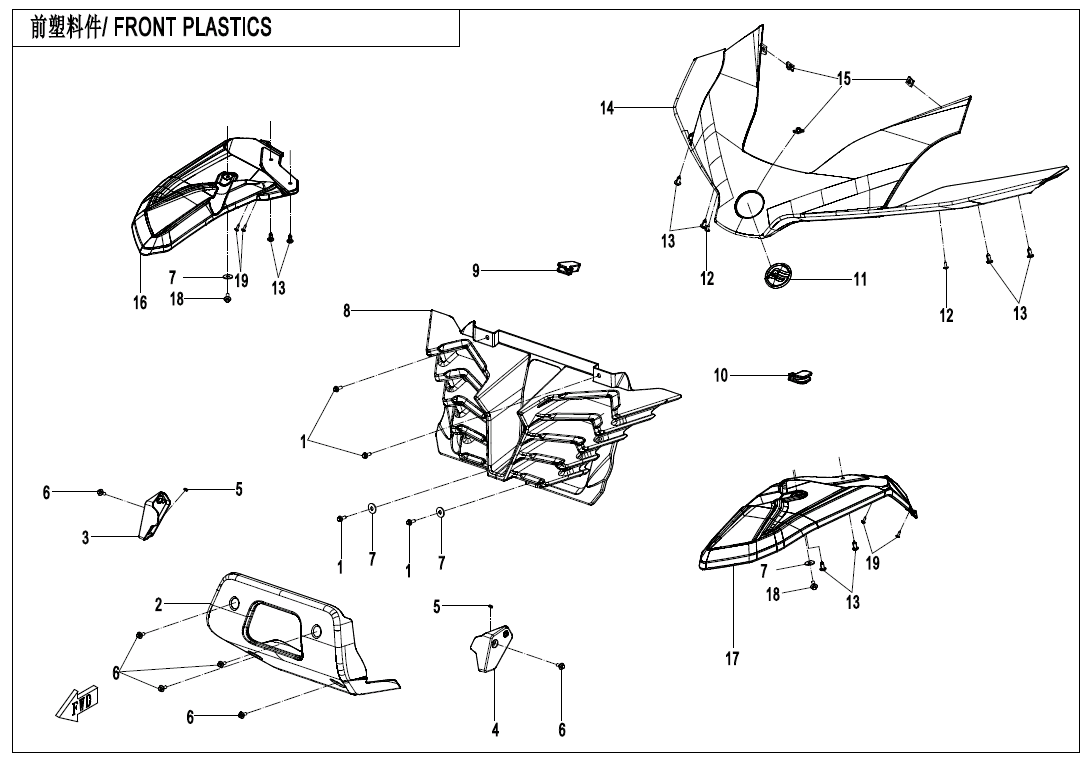

FRONT PLASTIC - F04-1

FRONT PLASTIC - F04-1

No.

01
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
02
P/N (SKU): 5BY0-041084
Part Name: DECO GUARD, WINCH
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 30,00 € : 30,00 €
03
P/N (SKU): 5BY0-041013
Part Name: FRONT RH REFLECTOR LOCK SEAT
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
04
P/N (SKU): 5BY0-041012
Part Name: LOCK SEAT, LH FRONT REFLECTOR
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
05
P/N (SKU): 6090-040403
Part Name: PANEL CUSHION SLEEVE
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
06
P/N (SKU): 5HY#-040001-1000
Part Name: BOLT M6x14
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
07
P/N (SKU): 30309-060870
Part Name: PLAIN WASHERS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: φ6
Price: 1,50 € : 1,50 €
08
P/N (SKU): 5BY0-041011
Part Name: VENTILATION GRID
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 47,00 € : 47,00 €
09
P/N (SKU): 5BY0-041035
Part Name: FRONT RH HEADLIGHT SUPPORT MAT
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
10
P/N (SKU): 5BY0-041034
Part Name: SUPPORT MAT, LH HEADLIGHT
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
11
P/N (SKU): 7030-190001
Part Name: CFMOTO LOGO
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: BIG
Price: 26,00 € : 26,00 €
-+
12
P/N (SKU): 30110-481130010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-06-21
Remarks: null
Alternative parts: 30110-480130010
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 5BY0-041021-0VF00
Part Name: HEADLIGHT PANEL
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: MERCURY SILVER
Price: 104,00 € : 104,00 €
14
P/N (SKU): 5BY0-041021-0R400
Part Name: HEADLIGHT PANEL
Effective: 2021-06-21
Remarks: null
Alternative parts: 5ASV-190019-6000+5BYV-041021-A100-0R400
Specification: FIRE RED
Price: 90,00 € : 90,00 €
14
P/N (SKU): 5BY0-041021-0H900
Part Name: HEADLIGHT PANEL
Effective: 2021-06-21
Remarks: null
Alternative parts: 5ASV-190019-6000+5BYV-041021-A100-0H900
Specification: GHOST GREY
Price: 90,00 € : 90,00 €
15
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5BY0-043032-10000
Part Name: FRONT RH WHEEL FENDER FRONT PART
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 26,00 € : 26,00 €
17
P/N (SKU): 5BY0-043031-10000
Part Name: FRONT PART, LH FRONT WHEEL FENDER
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Price: 26,00 € : 26,00 €
18
P/N (SKU): 30006-060012870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 30110-480160070
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-06-21
Remarks: null
Alternative parts: null
Specification: ST 4.8x16@BLACK ZINC
Price: 2,00 € : 2,00 €
