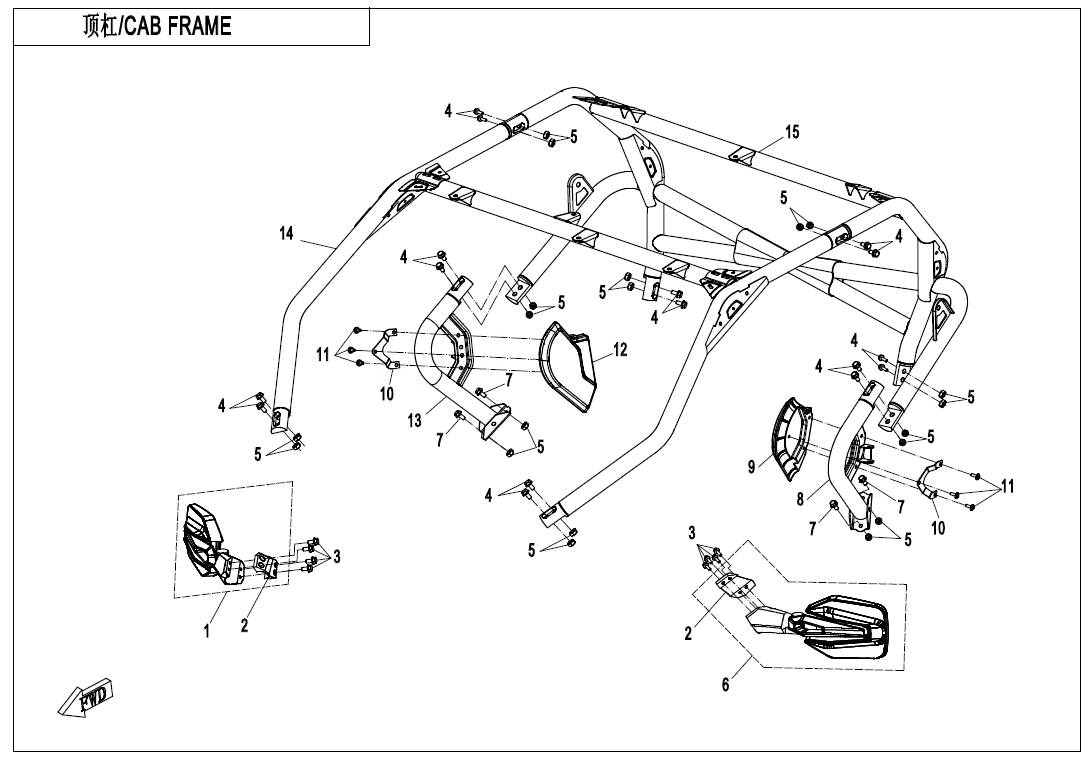

CAB FRAME(FOR 3-POINT SEAT BELT) - F23

CAB FRAME(FOR 3-POINT SEAT BELT) - F23

No.

01
P/N (SKU): 5BY0-260120
Part Name: RH REAR VIEW MIRROR ASSY.
Effective: 2021-06-21
Alternative parts:
Price: 111,00 € : 111,00 €
-+
02
P/N (SKU): 5BY0-260124
Part Name: MOUNT SEAT 2
Effective: 2021-06-21
Alternative parts:
Price: 33,00 € : 33,00 €
-+
03
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2021-06-21
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9010-300001
Part Name: BOLT M10x1.25x30
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25x30
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 30203-102110
Part Name: NUT M10x1.25
Effective: 2021-06-21
Alternative parts:
Specification: M10x1.25
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 5BY0-260110
Part Name: LH REAR VIEW MIRROR ASSY.
Effective: 2021-06-21
Alternative parts:
Price: 111,00 € : 111,00 €
-+
07
P/N (SKU): 30006-080016810
Part Name: BOLT M8x16
Effective: 2021-06-21
Alternative parts:
Specification: M8x16
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 5BY0-230200-0B000
Part Name: LH PROTECTING PIPE, PASSENGER
Effective: 2021-06-21
Alternative parts:
Specification: MATTE BLACK
Price: 72,00 € : 72,00 €
-+
09
P/N (SKU): 5BY0-230020
Part Name: CUSHION MAT, LH ARMREST
Effective: 2021-06-21
Alternative parts:
Price: 38,00 € : 38,00 €
-+
10
P/N (SKU): 5BY0-230001
Part Name: BRACKET, BUMPER CUSHION MAT
Effective: 2021-06-21
Alternative parts:
Price: 15,00 € : 15,00 €
-+
11
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2021-06-21
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5BY0-230030
Part Name: CUSHION MAT, RH ARMREST
Effective: 2021-06-21
Alternative parts:
Price: 38,00 € : 38,00 €
-+
13
P/N (SKU): 5BY0-230300-0B000
Part Name: RH PROTECTING PIPE, PASSENGER
Effective: 2021-06-21
Alternative parts:
Specification: MATTE BLACK
Price: 64,00 € : 64,00 €
-+
14
P/N (SKU): 5BY0-230400-0B000
Part Name: FRONT FRAME, CAB
Effective: 2021-06-21
Alternative parts: 5BYV-230400-1B000
Price: 332,00 € : 332,00 €
15
P/N (SKU): 5BY0-230500-0B000
Part Name: REAR FRAME, CAB
Effective: 2021-06-21
Alternative parts: 5BYV-230500-1000-0BY00
Price: 499,00 € : 499,00 €
