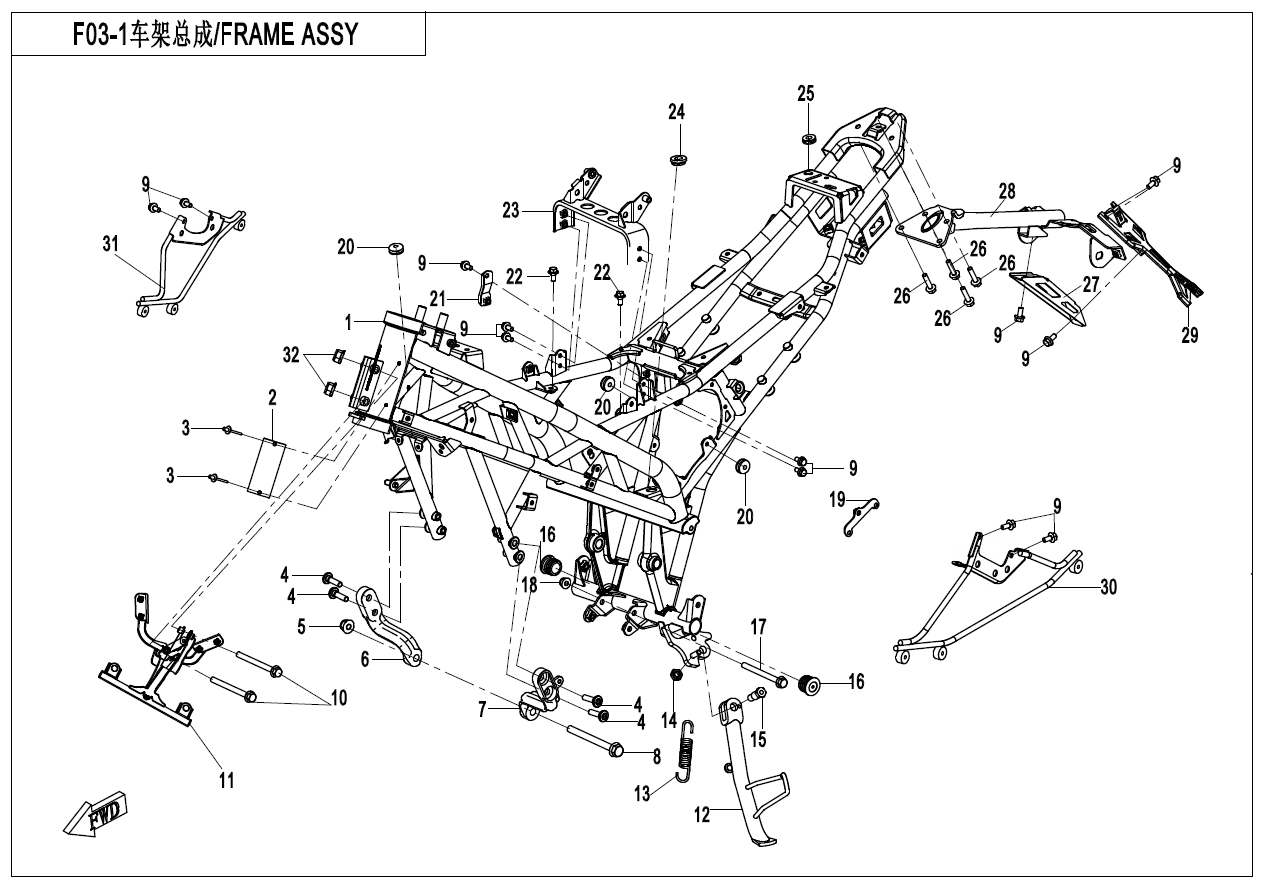

FRAME - F03-1

FRAME - F03-1

No.

01
P/N (SKU): 6KMV-031000-8700-01-0BP00
Part Name: FRAME ASSY
Effective: 2021-08-19
Alternative parts: 6KMV-031000-8701-01-0BP00
Specification: MAUD SPIRIT BLACK
Price: 855,90 € : 855,90 €
01
P/N (SKU): 6KMV-031000-8700-01-0VG00
Part Name: FRAME ASSY
Effective: 2021-08-19
Alternative parts: 6KMV-031000-8701-01-0VG00
Specification: NEBULA WHITE+ELECTROPHORESIS BLACK
Price: 957,70 € : 957,70 €
02
P/N (SKU): 6KNV-190011-A000
Part Name: VEHICLE PLATE
Effective: 2021-08-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
03
P/N (SKU): 30902-0400820
Part Name: BLIND RIVET
Effective: 2021-08-19
Alternative parts: 30902-0401320
Specification: 4x8
Price: 0,55 € : 0,55 €
04
P/N (SKU): A000-140107
Part Name: BOLT M8
Effective: 2021-08-19
Alternative parts: 6KM0-140107
Specification: M8
Price: 3,70 € : 3,70 €
05
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-08-19
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 6KM0-030006-1B200
Part Name: RH MOUNTING BRACKET, ENGINE
Effective: 2021-08-19
Alternative parts:
Specification: MATTE BLACK
Price: 21,60 € : 21,60 €
-+
07
P/N (SKU): 6KM0-030005-1B200
Part Name: LH MOUNTING BRACKET, ENGINE
Effective: 2021-08-19
Alternative parts:
Specification: MATTE BLACK
Price: 21,60 € : 21,60 €
-+
08
P/N (SKU): 30006-102110110
Part Name: BOLT M10x1.25x110
Effective: 2021-08-19
Alternative parts:
Specification: M10x1.25x110
Price: 2,05 € : 2,05 €
-+
09
P/N (SKU): 30006-060012870
Part Name: BOLT M6x12
Effective: 2021-08-19
Alternative parts:
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
10
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2021-08-19
Alternative parts:
Specification: M6x25
Price: 0,55 € : 0,55 €
-+
11
P/N (SKU): 6KM#-030400-8001-0B200
Part Name: FRONT BRACKET
Effective: 2021-08-19
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 66,20 € : 66,20 €
-+
12
P/N (SKU): 6KM0-030310-0B200
Part Name: SIDE BRACKET ASSY
Effective: 2021-08-19
Alternative parts:
Specification: MATTE BLACK
Price: 9,55 € : 9,55 €
-+
13
P/N (SKU): 6090-030006
Part Name: SPRING, SIDE STAND
Effective: 2021-08-19
Alternative parts: FA8V-030006-1000
Price: 1,25 € : 1,25 €
14
P/N (SKU): 30208-102010
Part Name: NUT M10x1.25
Effective: 2021-08-19
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 6KMV-030006-8500
Part Name: SIDE BRACKET BOLT
Effective: 2021-08-19
Alternative parts:
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 6KJ0-030503
Part Name: RUBBER PLUG
Effective: 2021-08-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
17
P/N (SKU): 30006-080090810
Part Name: BOLT M8x90
Effective: 2021-08-19
Alternative parts:
Specification: M8x90
Price: 0,95 € : 0,95 €
-+
18
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-08-19
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
19
P/N (SKU): 6KM0-030030-0B200
Part Name: BRACKET, CANISTER
Effective: 2021-08-19
Alternative parts:
Specification: MATTE BLACK
Price: 9,90 € : 9,90 €
-+
20
P/N (SKU): A000-040302
Part Name: RUBBER DAMPER
Effective: 2021-08-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
21
P/N (SKU): 6KM0-030050-0B200
Part Name: ABS BRACKET
Effective: 2021-08-19
Alternative parts:
Specification: MATTE BLACK
Price: 2,60 € : 2,60 €
-+
22
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-08-19
Alternative parts:
Specification: M6x14
Price: 0,55 € : 0,55 €
-+
23
P/N (SKU): 6KM0-030100-2B200
Part Name: REAR MOUNTING ASSY,FUEL TANK
Effective: 2021-08-19
Remarks: Used with6KM0-041601-2H300 and 6KM0-041701-2H300 (or with 6KM0-041601-2H70 and 6KM0-041701-2H700)
Alternative parts:
Specification: MATTE BLACK
Price: 18,00 € : 18,00 €
-+
24
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2021-08-19
Alternative parts:
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2021-08-19
Alternative parts:
Price: 0,95 € : 0,95 €
-+
26
P/N (SKU): 30006-080045810
Part Name: BOLT M8x45
Effective: 2021-08-19
Alternative parts:
Specification: M8x45
Price: 0,95 € : 0,95 €
-+
27
P/N (SKU): 6KJ0-030601-0BP00
Part Name: BRACKET, REAR LICENSE
Effective: 2021-08-19
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 7,00 € : 7,00 €
-+
28
P/N (SKU): 6NT1-030100-0BP00
Part Name: BRACKET, REAR FENDER
Effective: 2021-08-19
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 18,30 € : 18,30 €
-+
29
P/N (SKU): 6KM#-030110-8000-0BP00
Part Name: BRAKCET, REAR LICENSE
Effective: 2021-08-19
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 11,80 € : 11,80 €
-+
30
P/N (SKU): 6KM#-030040-8002-0B200
Part Name: LH BRACKET, DEFLECTOR
Effective: 2021-08-19
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 17,60 € : 17,60 €
-+
31
P/N (SKU): 6KM#-030050-8002-0B200
Part Name: RH BRACKET, DEFLECTOR
Effective: 2021-08-19
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 17,60 € : 17,60 €
-+
32
P/N (SKU): 30206-080510
Part Name: NUT M8
Effective: 2021-08-19
Alternative parts:
Specification: M8
Price: 0,55 € : 0,55 €
-+
