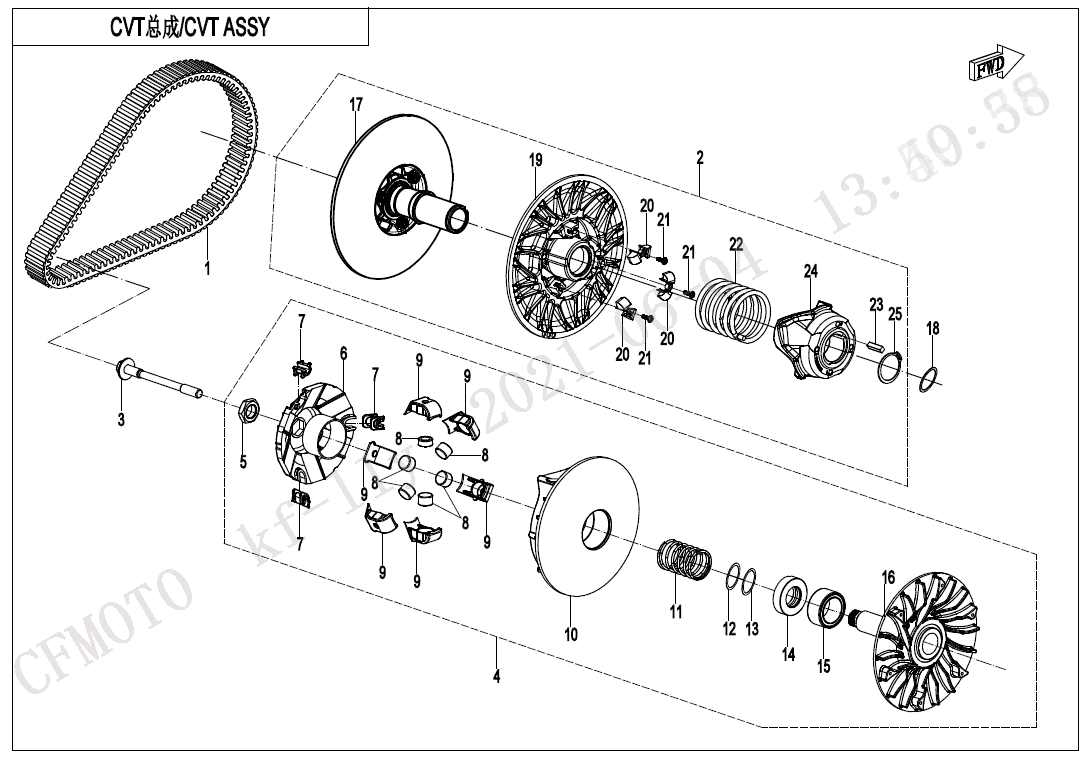

CVT ASSY(FOR MECHANICAL DOWNHILL BRAKING) - E05-B | 2022,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0JWA-055000-10000

Part Name: TOOTHED DRIVE BELT

Effective: 2021-06-18

Alternative parts:

Price: 198,00 € : 198,00 €

02

P/N (SKU): 0JYA-052000-50000

Part Name: DRIVEN PULLEY ASSY.

Effective: 2021-06-18

Alternative parts: 0JYA-052000-50001

Price: 629,60 € : 629,60 €

03

P/N (SKU): 0JY0-050001-00001

Part Name: BOLT, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 5,10 € : 5,10 €

04

P/N (SKU): 0JYA-051000-50000

Part Name: DRIVE PULLEY ASSY.

Effective: 2021-06-18

Remarks: FOR DOWNHILL BRAKING

Alternative parts: 0JYA-051000-50001

Price: 869,90 € : 869,90 €

05

P/N (SKU): 0JYA-051013-10000

Part Name: NUT, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts: 0JYA-051013-10001

Specification: CVtech

Price: 65,60 € : 65,60 €

06

P/N (SKU): 0JYA-051006-10000

Part Name: THRUST COLLAR

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 202,40 € : 202,40 €

07

P/N (SKU): 0JYA-051004-10000

Part Name: NYLON PARTS, THRUST DISC

Effective: 2021-06-18

Alternative parts:

Price: 9,15 € : 9,15 €

08

P/N (SKU): 0JYA-051001

Part Name: WEIGHT ROLLER

Effective: 2021-06-18

Alternative parts:

Specification: 20G

Price: 25,70 € : 25,70 €

09

P/N (SKU): 0GR0-051005

Part Name: NYLON PROTECTOR, WEIGHT ROLLER

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 16,90 € : 16,90 €

10

P/N (SKU): 0JYA-051100

Part Name: MOVING PLATE ASSY, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 339,50 € : 339,50 €

11

P/N (SKU): 0JY0-051002

Part Name: SPRING,DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 35,20 € : 35,20 €

12

P/N (SKU): 0GR0-051009-10000

Part Name: NYLON WASHER

Effective: 2021-06-18

Alternative parts:

Price: 11,80 € : 11,80 €

13

P/N (SKU): 0GR0-051011

Part Name: STEEL WASHER

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

14

P/N (SKU): 0GR0-051001

Part Name: SPRING SEAT

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 56,80 € : 56,80 €

15

P/N (SKU): 0JYA-051210

Part Name: ONE-WAY BEARING, DRIVE PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 148,00 € : 148,00 €

16

P/N (SKU): 0JYA-051200

Part Name: DRIVE FIXED PULLEY ASSY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 520,40 € : 520,40 €

17

P/N (SKU): 0JYA-052011

Part Name: FIXED SHEAVE, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 342,30 € : 342,30 €

18

P/N (SKU): 1F30-060002-00500

Part Name: ADJUSTING WASHER 20.2X28 T=1.5

Effective: 2021-06-18

Alternative parts:

Specification: T=1.5

Price: 0,95 € : 0,95 €

19

P/N (SKU): 0JYA-052010

Part Name: SLIDING SHEAVE, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 241,90 € : 241,90 €

20

P/N (SKU): 0GR0-052005

Part Name: NYLON BLOCK

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

21

P/N (SKU): 0GR0-052006

Part Name: SCREW

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 2,95 € : 2,95 €

22

P/N (SKU): 0JYA-052008

Part Name: SPRING, DRIVEN PULLEY

Effective: 2021-06-18

Alternative parts:

Price: 46,90 € : 46,90 €

23

P/N (SKU): 0GR0-052003

Part Name: TAPER KEY

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 2,95 € : 2,95 €

24

P/N (SKU): 0JYA-052009

Part Name: CAM PLATE

Effective: 2021-06-18

Alternative parts:

Price: 106,20 € : 106,20 €

25

P/N (SKU): 0GR0-052004

Part Name: CIRCLIP

Effective: 2021-06-18

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €
