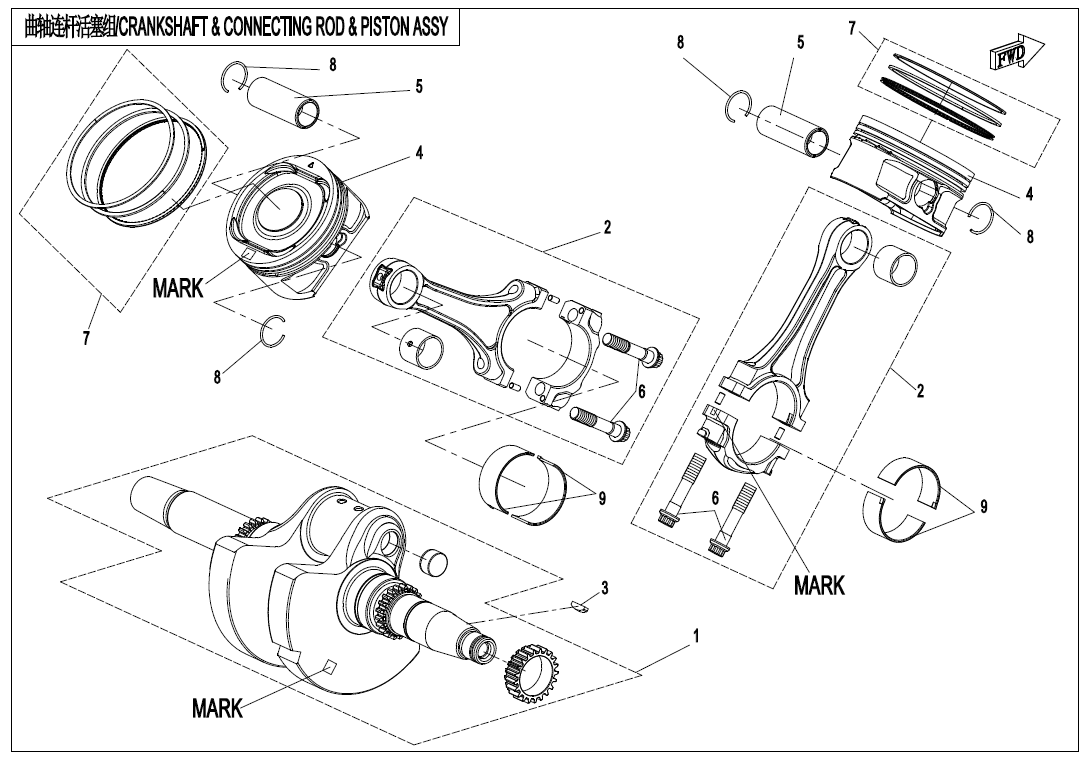

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04-V2

CRANKSHAFT @^ CONNECTING ROD @^ PISTON ASSY. - E04-V2

No.

01
P/N (SKU): 0JYA-041000-10012
Part Name: CRANKSHAFT ASSY
Effective: 2021-06-18
Remarks: MARK A
Alternative parts:
Specification: MARK A
Price: 478,60 € : 478,60 €
-+
01
P/N (SKU): 0JYA-041000-10022
Part Name: CRANKSHAFT ASSY
Effective: 2021-06-18
Remarks: MARK B
Alternative parts: 0JYA-041000-10024/0JYA-041000-10025
Specification: MARK B
Price: 478,60 € : 478,60 €
-+
01
P/N (SKU): 0JYA-041000-10014
Part Name: CRANKSHAFT ASSY
Effective: 2023-03-15
Alternative parts: 0JYA-041000-10015
Price: 485,90 € : 485,90 €
01
P/N (SKU): 0JYA-041000-10024
Part Name: CRANKSHAFT ASSY
Effective: 2023-03-15
Alternative parts: 0JYA-041000-10025
Price: 486,20 € : 486,20 €
02
P/N (SKU): 0JY0-041000-00021
Part Name: CONNECTING ROD ASSY
Effective: 2021-06-18
Remarks: MARK II
Alternative parts: 0JY0-041000-00022
Specification: MARK 2
Price: 90,00 € : 90,00 €
-+
02
P/N (SKU): 0JY0-041000-00011
Part Name: CONNECTING ROD ASSY
Effective: 2021-06-18
Remarks: MARK I
Alternative parts: 0JY0-041000-00012
Specification: MARK 1
Price: 90,00 € : 90,00 €
-+
03
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2021-06-18
Alternative parts:
Price: 2,05 € : 2,05 €
-+
04
P/N (SKU): 0JYA-040001-00011
Part Name: PISTON
Effective: 2021-06-18
Remarks: MARK Ⅰ
Alternative parts: 0JYA-040001-00012
Specification: MARK 1
Price: 71,20 € : 71,20 €
-+
04
P/N (SKU): 0JYA-040001-00021
Part Name: PISTON
Effective: 2021-06-18
Remarks: MARK Ⅱ
Alternative parts: 0JYA-040001-00022
Specification: MARK 2
Price: 71,20 € : 71,20 €
-+
04
P/N (SKU): 0JYA-040001-00012
Part Name: PISTON
Effective: 2022-01-10
Alternative parts:
Specification: MARK1
Price: 37,40 € : 37,40 €
-+
04
P/N (SKU): 0JYA-040001-00022
Part Name: PISTON
Effective: 2022-01-10
Alternative parts:
Specification: MARK 2
Price: 37,40 € : 37,40 €
-+
05
P/N (SKU): 0800-040002
Part Name: PISTON PIN
Effective: 2021-06-18
Alternative parts: 0800-040002-00001
Price: 8,05 € : 8,05 €
06
P/N (SKU): 0800-042004
Part Name: CONNECTING ROD BOLT
Effective: 2021-06-18
Alternative parts:
Price: 1,25 € : 1,25 €
-+
07
P/N (SKU): 0JYA-0400B0
Part Name: PISTON RING ASSY
Effective: 2021-06-18
Remarks: ATG,OPTIONAL
Alternative parts: 0800-0400A0
Specification: SUPPLIERS:ATG
Price: 23,10 € : 23,10 €
07
P/N (SKU): 0800-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-06-18
Alternative parts:
Specification: SUPPLIERS:DY
Price: 43,80 € : 43,80 €
-+
08
P/N (SKU): 0800-040005
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-06-18
Alternative parts:
Price: 1,65 € : 1,65 €
-+
09
P/N (SKU): 0JY0-040003-00032
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2021-06-18
Remarks: YELLOW
Alternative parts:
Specification: YELLOW@THICK
Price: 6,60 € : 6,60 €
-+
09
P/N (SKU): 0JY0-040003-00022
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2021-06-18
Remarks: BLACK
Alternative parts:
Specification: BLACK@MIDDLE
Price: 6,60 € : 6,60 €
-+
09
P/N (SKU): 0JY0-040003-00012
Part Name: CONNECTING ROD PLAIN BEARING
Effective: 2021-06-18
Remarks: RED
Alternative parts:
Specification: RED@THIN
Price: 6,60 € : 6,60 €
-+
