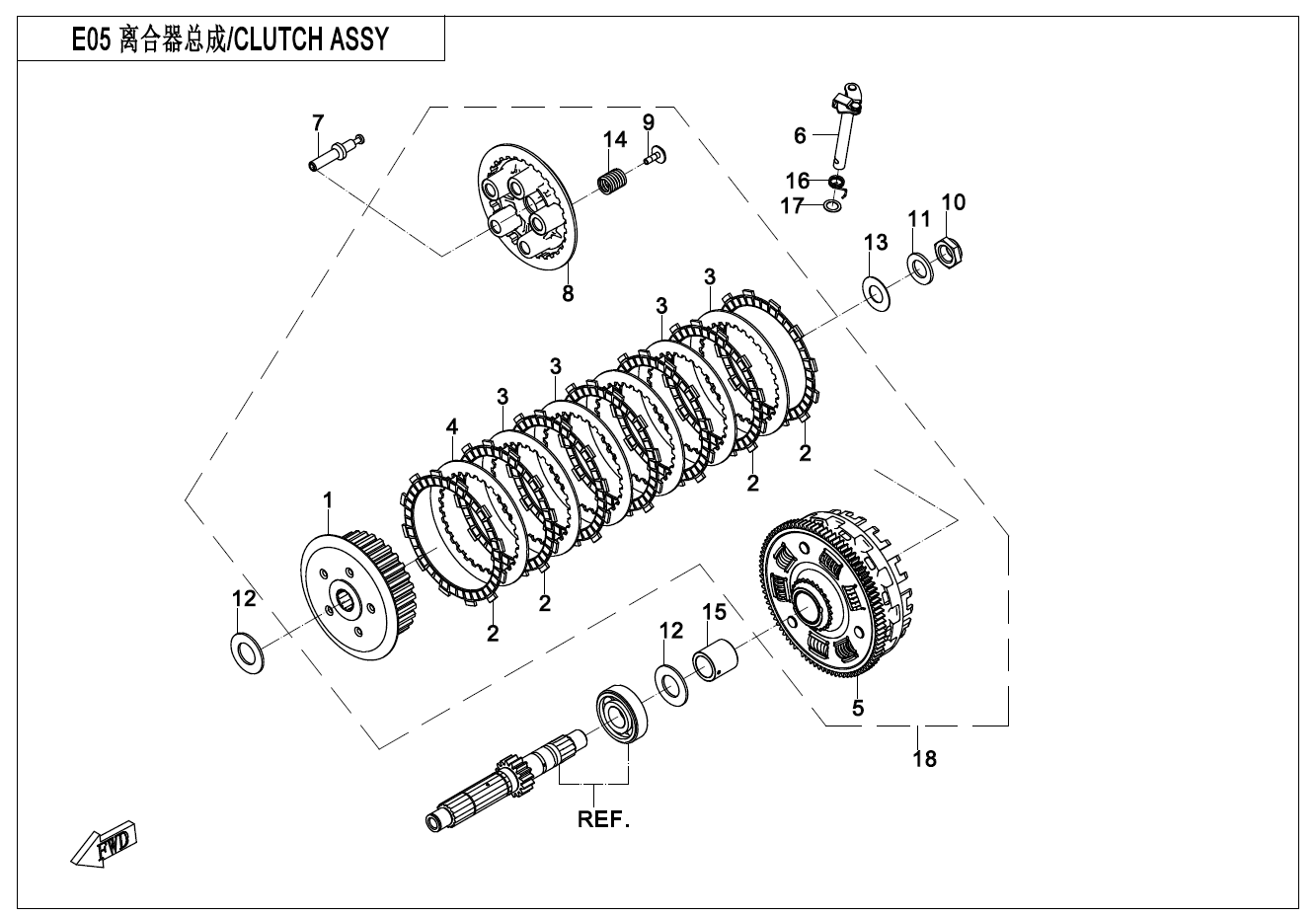

CLUTCH - E05

CLUTCH - E05

No.

01
P/N (SKU): 0700-050100
Part Name: CENTRAL SLEEVE
Effective: 2021-07-01
Alternative parts:
Price: 27,90 € : 27,90 €
-+
02
P/N (SKU): 0700-050200
Part Name: FRICTION PLATE
Effective: 2021-07-01
Alternative parts:
Price: 21,30 € : 21,30 €
-+
03
P/N (SKU): 0700-050001
Part Name: STEEL PLATE B
Effective: 2021-07-01
Alternative parts:
Specification: t=2.5
Price: 5,50 € : 5,50 €
-+
04
P/N (SKU): 0700-050005
Part Name: STEEL PLATE A
Effective: 2021-07-01
Alternative parts:
Specification: t=2.0
Price: 5,50 € : 5,50 €
-+
05
P/N (SKU): 0700-051000
Part Name: HOUSING ASSY
Effective: 2021-07-01
Alternative parts:
Price: 167,50 € : 167,50 €
-+
06
P/N (SKU): 0700-013200-20000
Part Name: CONTROL SHAFT, CLUTCH
Effective: 2021-07-01
Alternative parts:
Price: 16,97 € : 16,97 €
-+
07
P/N (SKU): 0700-050004
Part Name: TIE-ROD
Effective: 2021-07-01
Alternative parts:
Price: 4,80 € : 4,80 €
-+
08
P/N (SKU): 0700-0500B0
Part Name: OPERATING PAD, CLUTCH
Effective: 2021-07-01
Alternative parts:
Price: 22,70 € : 22,70 €
-+
09
P/N (SKU): 0700-050300
Part Name: BOLT M6x20
Effective: 2021-07-01
Alternative parts:
Specification: M6x20
Price: 2,70 € : 2,70 €
-+
10
P/N (SKU): 0700-061002-00002
Part Name: NUT
Effective: 2021-07-01
Alternative parts:
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 0700-061003
Part Name: CIRCLIP 20
Effective: 2021-07-01
Alternative parts:
Specification: 20
Price: 2,70 € : 2,70 €
-+
12
P/N (SKU): 0700-061005
Part Name: WASHER 25.5x47x2.5
Effective: 2021-07-01
Alternative parts:
Specification: 25.5x47x2.5
Price: 2,40 € : 2,40 €
-+
13
P/N (SKU): 0A70-011007
Part Name: WASHER 20x40x1
Effective: 2021-07-01
Alternative parts:
Specification: 20x40x1
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 0700-050002
Part Name: PRESS SPRING
Effective: 2021-07-01
Alternative parts:
Price: 1,80 € : 1,80 €
-+
15
P/N (SKU): 0700-061004-00010
Part Name: AXLE SLEEVE, CLUTCH
Effective: 2021-07-01
Alternative parts:
Price: 10,62 € : 10,62 €
-+
16
P/N (SKU): 0700-013006-10000
Part Name: RETURN SPRING, CLUTCH LEVER
Effective: 2021-07-01
Alternative parts:
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 0700-013007-10000
Part Name: WASHER 12.5x18.5x0.6
Effective: 2021-07-01
Alternative parts: 0700-013007
Price: 1,30 € : 1,30 €
18
P/N (SKU): 0700-052000-00010
Part Name: CLUTCH SUB ASSY
Effective: 2021-07-01
Alternative parts:
Specification: MARK A_MATCHED WITH PRIMARY DRIVEN GEAR A
Price: 338,90 € : 338,90 €
-+
18
P/N (SKU): 0700-052000-00020
Part Name: CLUTCH SUB ASSY
Effective: 2021-07-01
Alternative parts:
Specification: MARK B_MATCHED WITH PRIMARY DRIVEN GEAR B
Price: 329,10 € : 329,10 €
-+
