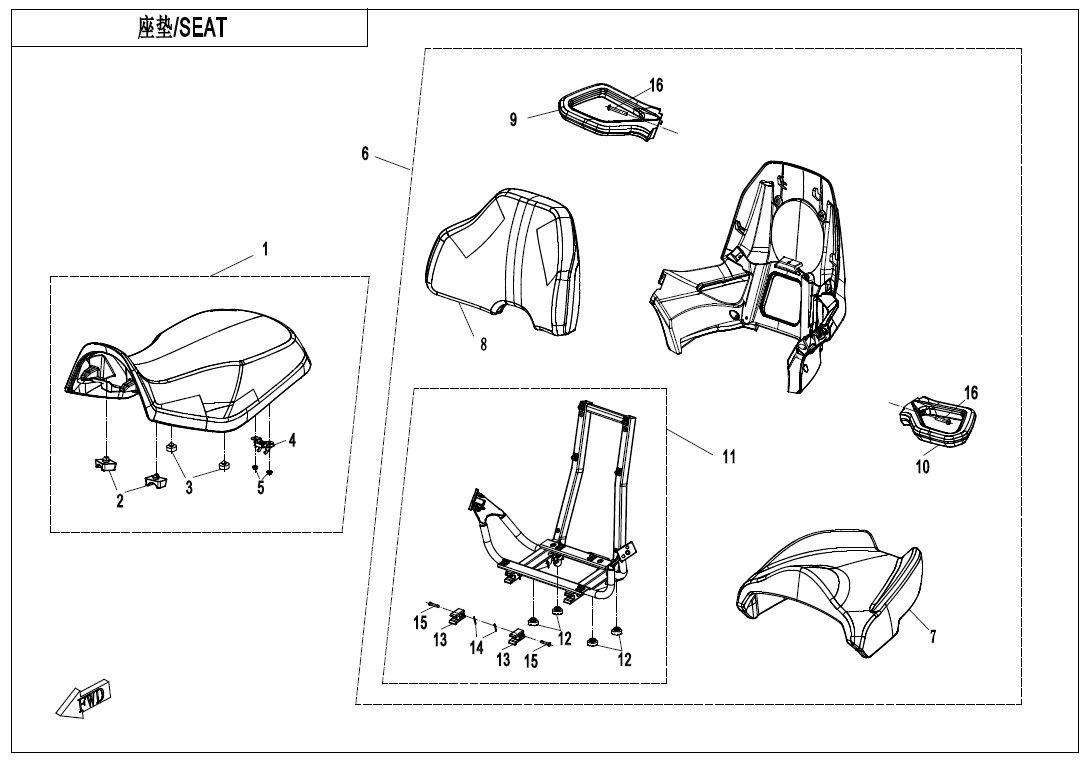

SEAT(BLACK) - F13-A

SEAT(BLACK) - F13-A

No.

01
P/N (SKU): 9AWV-131000-2C00
Part Name: FRONT SEAT ASSY
Effective: 2021-07-03
Alternative parts:
Price: 110,80 € : 110,80 €
-+
02
P/N (SKU): 7020-131001
Part Name: HEAT INSULATION GASKET, MAIN SEAT
Effective: 2021-07-03
Alternative parts:
Price: 21,30 € : 21,30 €
-+
03
P/N (SKU): 8030-130211
Part Name: RUBBER DAMPER
Effective: 2021-07-03
Alternative parts:
Price: 1,05 € : 1,05 €
-+
04
P/N (SKU): 9010-130110
Part Name: HOOK, FRONT SEAT
Effective: 2021-07-03
Alternative parts:
Price: 6,55 € : 6,55 €
-+
05
P/N (SKU): 30202-060110
Part Name: NUT M6
Effective: 2021-07-03
Alternative parts: 30204-060810
Specification: M6
Price: 0,55 € : 0,55 €
-+
06
P/N (SKU): 9AWV-132000-2E00
Part Name: REAR SEAT ASSY
Effective: 2021-07-03
Alternative parts:
Price: 391,40 € : 391,40 €
-+
07
P/N (SKU): 9AWV-132000-2E00-20
Part Name: REAR SEAT ASSY
Effective: 2021-07-03
Alternative parts:
Price: 82,10 € : 82,10 €
-+
08
P/N (SKU): 9AWV-132000-2E00-21
Part Name: REAR BACKREST ASSY
Effective: 2021-07-03
Alternative parts:
Price: 120,50 € : 120,50 €
-+
09
P/N (SKU): 9AWA-132500-10000
Part Name: RH ARMREST
Effective: 2021-07-03
Alternative parts:
Price: 72,30 € : 72,30 €
-+
10
P/N (SKU): 9AWA-132400-10000
Part Name: LH ARMREST
Effective: 2021-07-03
Alternative parts:
Price: 72,30 € : 72,30 €
-+
11
P/N (SKU): 9AWA-132300-10000
Part Name: REAR SEAT BRACKET ASSY
Effective: 2021-07-03
Alternative parts:
Price: 112,30 € : 112,30 €
-+
12
P/N (SKU): 9AWA-132334-10000
Part Name: RUBBER DAMPER
Effective: 2021-07-03
Alternative parts:
Price: 4,40 € : 4,40 €
-+
13
P/N (SKU): 9AWA-132333
Part Name: LIMIT BLOCK
Effective: 2021-07-03
Alternative parts:
Price: 2,20 € : 2,20 €
-+
14
P/N (SKU): 30903-0161610
Part Name: COTTER PIN
Effective: 2021-07-03
Alternative parts:
Specification: 16x16
Price: 0,55 € : 0,55 €
-+
15
P/N (SKU): 30904-0603010
Part Name: PIN SHAFT
Effective: 2021-07-03
Alternative parts:
Specification: 60x30
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 30121-100045170
Part Name: SCREW M10x45
Effective: 2021-07-03
Alternative parts:
Specification: M10x45
Price: 1,50 € : 1,50 €
-+
