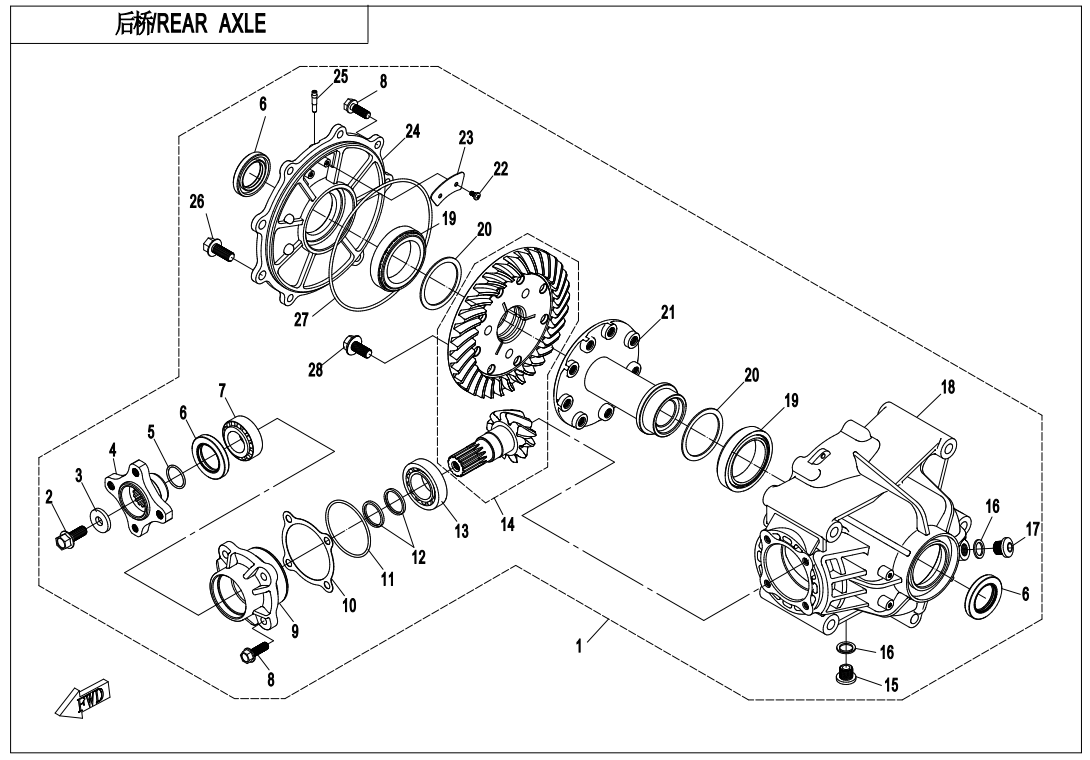

REAR AXLE(NO DIFFERENTIAL) - F33-C

REAR AXLE(NO DIFFERENTIAL) - F33-C

No.

01
P/N (SKU): Q850-330000-20001
Part Name: REAR GEAR CASE ASSY
Effective: 2021-07-03
Alternative parts:
Price: 597,00 € : 597,00 €
-+
02
P/N (SKU): 0GR0-062203
Part Name: BOLT M10x1.25x20
Effective: 2021-07-03
Alternative parts:
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 0GR0-062204
Part Name: WASHER 10x27.5x4
Effective: 2021-07-03
Alternative parts:
Specification: 10x27.5x4
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): Q850-331002
Part Name: COUPLER
Effective: 2021-07-03
Alternative parts:
Price: 38,00 € : 38,00 €
-+
05
P/N (SKU): 0800-062205
Part Name: O-SEAL RING 25x2
Effective: 2021-07-03
Alternative parts:
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 0800-062204
Part Name: OIL SEAL 35x50x7
Effective: 2021-07-03
Alternative parts:
Specification: 35x50x7
Price: 6,50 € : 6,50 €
-+
07
P/N (SKU): 30409-02500
Part Name: BEARING
Effective: 2021-07-03
Alternative parts:
Specification: 33005(25x47x17)
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 0110-060011-0010
Part Name: BOLT M8x28
Effective: 2021-07-03
Alternative parts: 0JYA-062104
Specification: M8x28
Price: 2,00 € : 2,00 €
09
P/N (SKU): Q830-311002-00001
Part Name: BEARING SEAT
Effective: 2021-07-03
Alternative parts:
Price: 21,00 € : 21,00 €
-+
10
P/N (SKU): Q830-310023-00200
Part Name: ADJUSTING WASHER T=0.30
Effective: 2021-07-03
Alternative parts:
Specification: T=0.30
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): Q830-310023-00100
Part Name: ADJUSTING WASHER T=0.20
Effective: 2021-07-03
Alternative parts:
Specification: T=0.20
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): Q830-310006-10000
Part Name: O-RING 55x2.5
Effective: 2021-07-03
Alternative parts:
Specification: 55x2.5
Price: 3,00 € : 3,00 €
-+
12
P/N (SKU): Q830-311003-00400
Part Name: ADJUSTING WASHER 32x25.4 T=2.40
Effective: 2021-07-03
Alternative parts:
Specification: T=2.40
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00500
Part Name: ADJUSTING WASHER 32x25.4 T=2.42
Effective: 2021-07-03
Alternative parts:
Specification: T=2.42
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00600
Part Name: ADJUSTING WASHER 32x25.4 T=2.44
Effective: 2021-07-03
Alternative parts:
Specification: T=2.44
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): Q830-311003-00700
Part Name: ADJUSTING WASHER 32x25.4 T=2.46
Effective: 2021-07-03
Alternative parts:
Specification: T=2.46
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00800
Part Name: ADJUSTING WASHER 32x25.4 T=2.48
Effective: 2021-07-03
Alternative parts:
Specification: T=2.48
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00900
Part Name: ADJUSTING WASHER 32x25.4 T=2.50
Effective: 2021-07-03
Alternative parts:
Specification: T=2.50
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-01000
Part Name: ADJUSTING WASHER 32x25.4 T=2.60
Effective: 2021-07-03
Alternative parts:
Specification: T=2.60
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-01100
Part Name: ADJUSTING WASHER 32x25.4 T=2.70
Effective: 2021-07-03
Alternative parts:
Specification: T=2.70
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-01200
Part Name: ADJUSTING WASHER 32x25.4 T=2.80
Effective: 2021-07-03
Alternative parts:
Specification: T=2.80
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-01300
Part Name: ADJUSTING WASHER 32x25.4 T=2.90
Effective: 2021-07-03
Alternative parts:
Specification: T=2.90
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-01400
Part Name: ADJUSTING WASHER 32x25.4 T=3.00
Effective: 2021-07-03
Alternative parts:
Specification: T=3.00
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00300
Part Name: ADJUSTING WASHER 32x25.4 T=2.30
Effective: 2021-07-03
Alternative parts:
Specification: T=2.30
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00200
Part Name: ADJUSTING WASHER 32x25.4 T=2.20
Effective: 2021-07-03
Alternative parts:
Specification: T=2.20
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): Q830-311003-00100
Part Name: ADJUSTING WASHER 32x25.4 T=2.10
Effective: 2021-07-03
Alternative parts:
Specification: T=2.10
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 30409-03000
Part Name: BEARING
Effective: 2021-07-03
Alternative parts:
Specification: 32006(30x55x17)
Price: 17,00 € : 17,00 €
-+
14
P/N (SKU): Q850-3300A0-00002
Part Name: BEVEL GEAR ASSY, REAR GEAR CASE
Effective: 2021-07-03
Alternative parts:
Price: 134,00 € : 134,00 €
-+
15
P/N (SKU): 0180-332100
Part Name: OIL DRAIN BOLT M14x1.25x12, MAGNETIC
Effective: 2021-07-03
Alternative parts:
Specification: M14x1.25x12
Price: 5,50 € : 5,50 €
-+
16
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2021-07-03
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0180-021008-0010
Part Name: BOLT M14x1.25x12
Effective: 2021-07-03
Alternative parts:
Specification: M14x1.25x12
Price: 4,50 € : 4,50 €
-+
18
P/N (SKU): Q850-330001-00001
Part Name: REAR GEAR CASE
Effective: 2021-07-03
Alternative parts:
Price: 106,00 € : 106,00 €
-+
19
P/N (SKU): 30409-05000
Part Name: BEARING
Effective: 2021-07-03
Alternative parts:
Price: 48,00 € : 48,00 €
-+
20
P/N (SKU): Q820-330003-00100
Part Name: ADJUSTING WASHER 61x50.5 T=0.10
Effective: 2021-07-03
Alternative parts:
Specification: T=0.10
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00200
Part Name: ADJUSTING WASHER 61x50.5 T=0.30
Effective: 2021-07-03
Alternative parts:
Specification: T=0.30
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00300
Part Name: ADJUSTING WASHER 61x50.5 T=0.50
Effective: 2021-07-03
Alternative parts:
Specification: T=0.50
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00900
Part Name: ADJUSTING WASHER 61x50.5 T=1.00
Effective: 2021-07-03
Alternative parts:
Specification: T=1.00
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00800
Part Name: ADJUSTING WASHER 61x50.5 T=0.98
Effective: 2021-07-03
Alternative parts:
Specification: T=0.98
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00700
Part Name: ADJUSTING WASHER 61x50.5 T=0.96
Effective: 2021-07-03
Alternative parts:
Specification: T=0.96
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00600
Part Name: ADJUSTING WASHER 61x50.5 T=0.94
Effective: 2021-07-03
Alternative parts:
Specification: T=0.94
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00500
Part Name: ADJUSTING WASHER 61x50.5 T=0.92
Effective: 2021-07-03
Alternative parts:
Specification: T=0.92
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): Q820-330003-00400
Part Name: ADJUSTING WASHER 61x50.5 T=0.90
Effective: 2021-07-03
Alternative parts:
Specification: T=0.90
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): Q850-330003-00001
Part Name: MOUNTING BASE
Effective: 2021-07-03
Alternative parts:
Price: 60,00 € : 60,00 €
-+
22
P/N (SKU): 30105-040008410
Part Name: SCREW M4x8
Effective: 2021-07-03
Alternative parts:
Specification: M4x8
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): Q830-310022
Part Name: OIL GUARD
Effective: 2021-07-03
Alternative parts:
Price: 2,00 € : 2,00 €
-+
24
P/N (SKU): Q850-330002-00001
Part Name: REAR GEAR CASE COVER
Effective: 2021-07-03
Alternative parts: Q850-330002-00002
Price: 23,00 € : 23,00 €
-+
25
P/N (SKU): 0180-311004-0020
Part Name: JOINT, BREATHER HOSE
Effective: 2021-07-03
Alternative parts:
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0180-330004-0010
Part Name: BOLT M10x1.25x25
Effective: 2021-07-03
Alternative parts: 30001-102025810
Specification: M10x1.25x25
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 0180-334002
Part Name: O-SEAL RING 151x3
Effective: 2021-07-03
Alternative parts:
Specification: 151x3
Price: 3,50 € : 3,50 €
-+
28
P/N (SKU): 0181-313100-0010
Part Name: BOLT M10x1.25x22
Effective: 2021-07-03
Alternative parts:
Specification: M10x1.25x22
Price: 1,50 € : 1,50 €
-+
