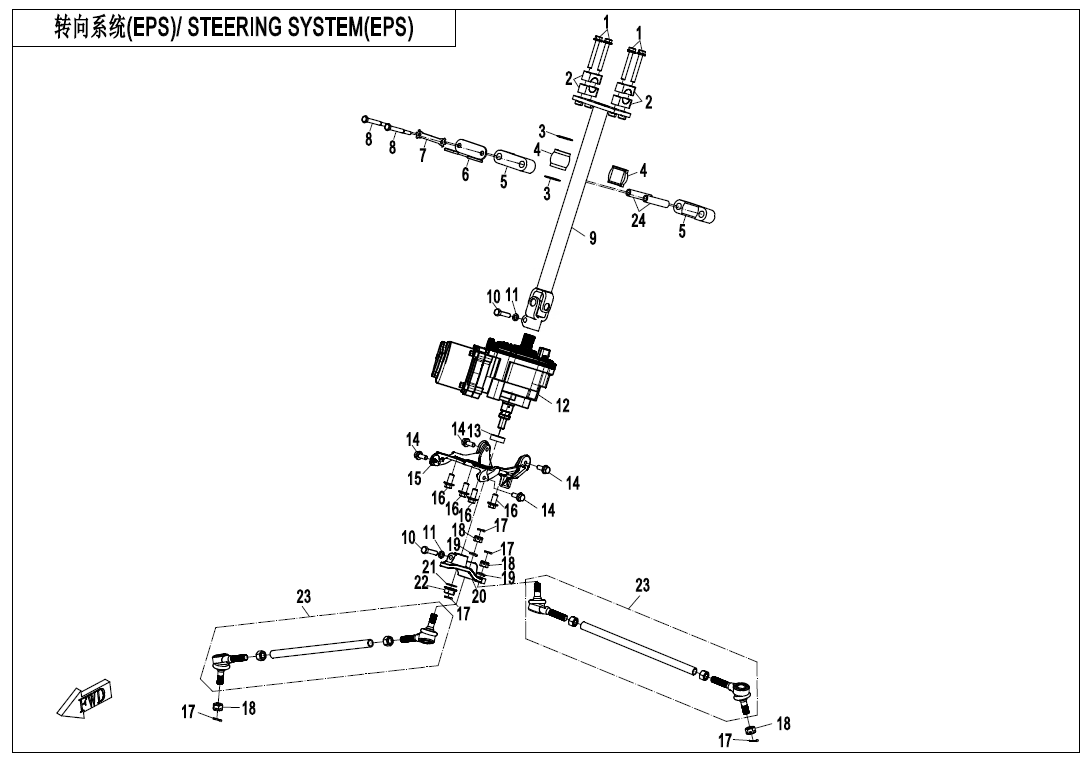

STEERING SYSTEM(EPS) - F10-2-B | 2022, ATV, CF800ATR-3 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 30006-080060810

Part Name: BOLT M8x60

Effective: 2021-07-19

Alternative parts:

Specification: M8x60

Price: 2,00 € : 2,00 €

02

P/N (SKU): 9DSV-100001-6K00

Part Name: HANDLEBAR BLOCK

Effective: 2021-07-19

Alternative parts: 9DSV-100001-6K01

Price: 8,80 € : 8,80 €

03

P/N (SKU): 30502-032800N

Part Name: O-RING

Effective: 2021-07-19

Alternative parts:

Specification: 32x1.8

Price: 1,00 € : 1,00 €

04

P/N (SKU): 7020-100602

Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2021-07-19

Alternative parts:

Price: 8,60 € : 8,60 €

05

P/N (SKU): 7020-100601-00001

Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2021-07-19

Alternative parts:

Price: 4,60 € : 4,60 €

06

P/N (SKU): 7020-100610-10000

Part Name: LINKING PLATE ASSY

Effective: 2021-07-19

Alternative parts:

Price: 2,80 € : 2,80 €

07

P/N (SKU): 7020-100603

Part Name: LOCKING PIECE

Effective: 2021-07-19

Alternative parts:

Price: 1,00 € : 1,00 €

08

P/N (SKU): 30003-080075810

Part Name: BOLT M8x75

Effective: 2021-07-19

Alternative parts:

Specification: M8x75

Price: 1,00 € : 1,00 €

09

P/N (SKU): 9AWV-102100-7400

Part Name: STEERING SHAFT, EPS

Effective: 2021-07-19

Alternative parts:

Price: 58,36 € : 58,36 €

10

P/N (SKU): 9CR6-102003

Part Name: BOLT M8x35

Effective: 2021-07-19

Alternative parts:

Specification: M8x35

Price: 2,70 € : 2,70 €

11

P/N (SKU): 30303-080112

Part Name: WASHER

Effective: 2021-07-19

Alternative parts:

Specification: 8

Price: 1,00 € : 1,00 €

12

P/N (SKU): 9AWA-150800-20000

Part Name: EPS ASSY

Effective: 2021-07-19

Alternative parts:

Price: 1 078,20 € : 1 078,20 €

13

P/N (SKU): 9CR6-103003

Part Name: SPLINE SLEEVE

Effective: 2021-07-19

Alternative parts:

Price: 2,80 € : 2,80 €

14

P/N (SKU): 30006-080025810

Part Name: BOLT

Effective: 2021-07-19

Alternative parts:

Specification: M8x25

Price: 1,00 € : 1,00 €

15

P/N (SKU): 9AWA-100011-30000

Part Name: MOUNTING PLATE, STEERING SEAT

Effective: 2021-07-19

Alternative parts:

Price: 59,04 € : 59,04 €

16

P/N (SKU): 30006-100020810

Part Name: BOLT M10x20

Effective: 2021-07-19

Alternative parts: 30006-102020810

Specification: M10x20

Price: 1,80 € : 1,80 €

17

P/N (SKU): 30903-0201610

Part Name: COTTER PIN

Effective: 2021-07-19

Alternative parts:

Specification: 2.0x16

Price: 1,00 € : 1,00 €

18

P/N (SKU): 9010-100002

Part Name: 1-TYPE NUT

Effective: 2021-07-19

Alternative parts:

Specification: M10x1.25

Price: 1,70 € : 1,70 €

19

P/N (SKU): 30306-100112

Part Name: WASHER

Effective: 2021-07-19

Alternative parts:

Specification: 10

Price: 1,00 € : 1,00 €

20

P/N (SKU): 9AWA-100001-20000

Part Name: STEERING ARM

Effective: 2021-07-19

Alternative parts:

Price: 20,32 € : 20,32 €

21

P/N (SKU): 30306-140112

Part Name: WASHER

Effective: 2021-07-19

Alternative parts:

Specification: 14

Price: 1,00 € : 1,00 €

22

P/N (SKU): 30204-122810

Part Name: NUT M12x1.25

Effective: 2021-07-19

Alternative parts:

Specification: M12x1.25

Price: 1,00 € : 1,00 €

23

P/N (SKU): 9AWA-104100

Part Name: STEERING ROD

Effective: 2021-07-19

Alternative parts:

Price: 45,80 € : 45,80 €

24

P/N (SKU): 7020-100604-00001

Part Name: BUSHING

Effective: 2021-07-19

Alternative parts:

Price: 2,80 € : 2,80 €
