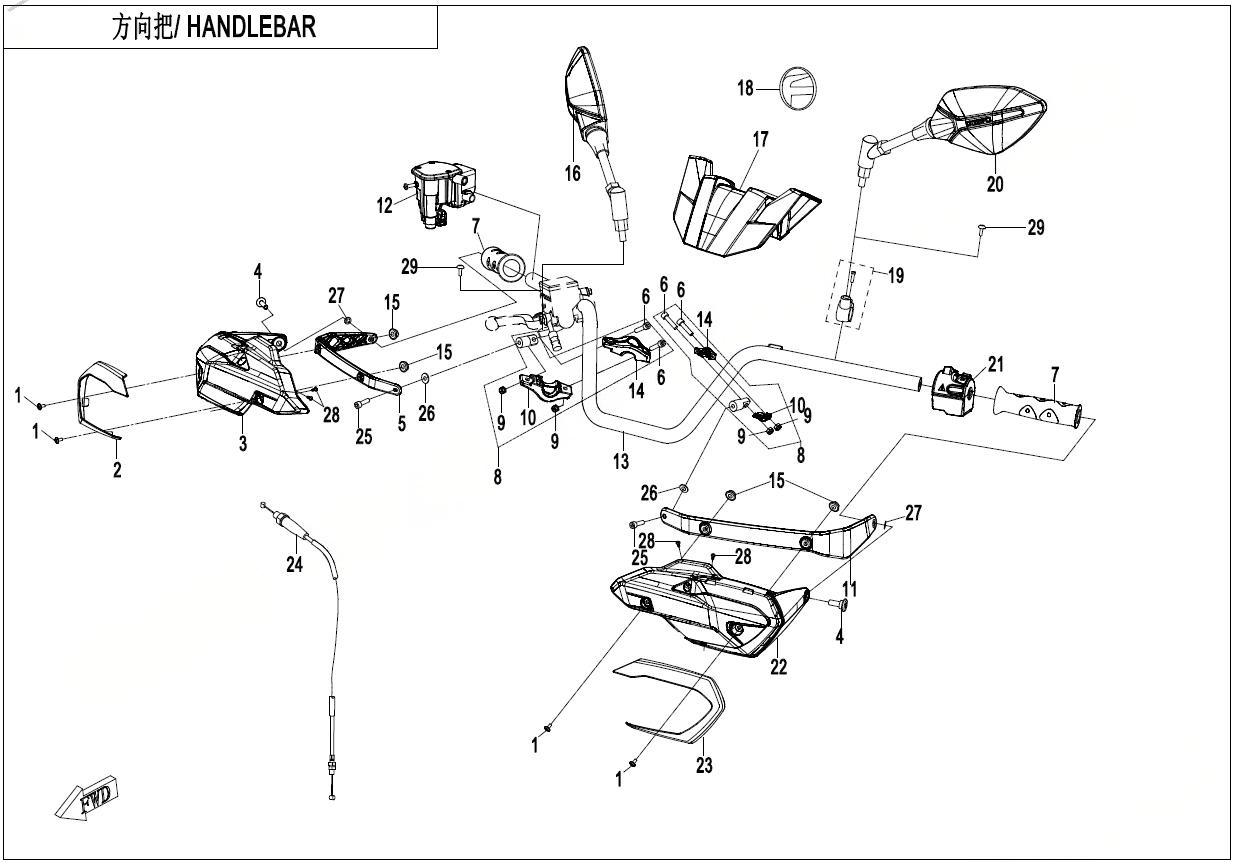

HANDLEBAR - F10-1-V3

HANDLEBAR - F10-1-V3

No.

01
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 9AWA-101302-0RH00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: FORCE RED
Price: 5,00 € : 5,00 €
02
P/N (SKU): 9AWA-101302-0RE00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0HC00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: VELOCITY GREY
Price: 5,00 € : 5,00 €
02
P/N (SKU): 9AWA-101302-0YD00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
02
P/N (SKU): 9AWA-101302-0EC00
Part Name: RH HAND GUARD COVER DECO PLATE
Effective: 2021-07-01
Alternative parts: null
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
03
P/N (SKU): 9AWA-101301-10000
Part Name: RH HAND GUARD COVER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 10,00 € : 10,00 €
04
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9AWA-101303-10000
Part Name: RH HANDGUARD LEVER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
-+
06
P/N (SKU): 30102-060022810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: M6x22@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-07-01
Remarks: null
Alternative parts: 9DQV-100005-3000
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 12,00 € : 12,00 €
09
P/N (SKU): 30224-060810
Part Name: TORQUE TYPE HEXAGON NUTS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 9AWA-101203-20000
Part Name: HANDGUARD LEVER, LH
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
12
P/N (SKU): 9DSV-160340-6302
Part Name: 2WD/4WD SWITCH ASSY
Effective: 2021-07-01
Alternative parts: null
Specification: FOR ON CAMMAND REAR AXLE
Price: 142,00 € : 142,00 €
-+
13
P/N (SKU): 9DSV-101100-6K00-0BU00
Part Name: HANDLEBAR ASSY
Effective: 2021-07-01
Alternative parts: 9DSV-101100-6K01
Specification: MIST SILVER BLACK
Price: 73,00 € : 73,00 €
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30206-060570
Part Name: ACORN HEXAGON NUTS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: M6
Price: 3,00 € : 3,00 €
16
P/N (SKU): 9AY0-200300
Part Name: REAR VIEW MIRROR ASSY, RH
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 29,00 € : 29,00 €
-+
17
P/N (SKU): 9DSV-101001-6K00
Part Name: UPPER GUARD, HANDLEBAR
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
-+
18
P/N (SKU): 9AWV-190001-2E00
Part Name: CFMOTO STICKER
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 9CR6-080400
Part Name: REAR VIEW MIRROR BRACKET ASSY
Effective: 2021-07-01
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
19
P/N (SKU): 9CRV-080400-2400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2022-04-22
Remarks: null
Alternative parts: null
Specification: null
Price: 6,50 € : 6,50 €
-+
20
P/N (SKU): 9AY0-200200
Part Name: LH REARVIEW MIRROR ASSY
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 29,00 € : 29,00 €
-+
21
P/N (SKU): 9DSV-166000-6J00
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-07-01
Alternative parts: 9DSV-166000-6J01
Specification: null
Price: 79,00 € : 79,00 €
21
P/N (SKU): 9DSV-166000-6J01
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2021-11-11
Remarks: null
Alternative parts: null
Specification: null
Price: 123,00 € : 123,00 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 10,00 € : 10,00 €
23
P/N (SKU): 9AWA-101202-0RH00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: FORCE RED
Price: 5,00 € : 5,00 €
23
P/N (SKU): 9AWA-101202-0RE00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0HC00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: VELOCITY GREY
Price: 5,00 € : 5,00 €
23
P/N (SKU): 9AWA-101202-0YD00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 9AWA-101202-0EC00
Part Name: LH HAND GUARD DECO PLATE
Effective: 2021-07-01
Alternative parts: null
Specification: ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
24
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
25
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30305-060112
Part Name: PLAIN WASHERS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30305-080112
Part Name: PLAIN WASHERS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: φ8
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30110-420095010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9010-080004
Part Name: M8 RUBBER PLUG
Effective: 2021-07-01
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
