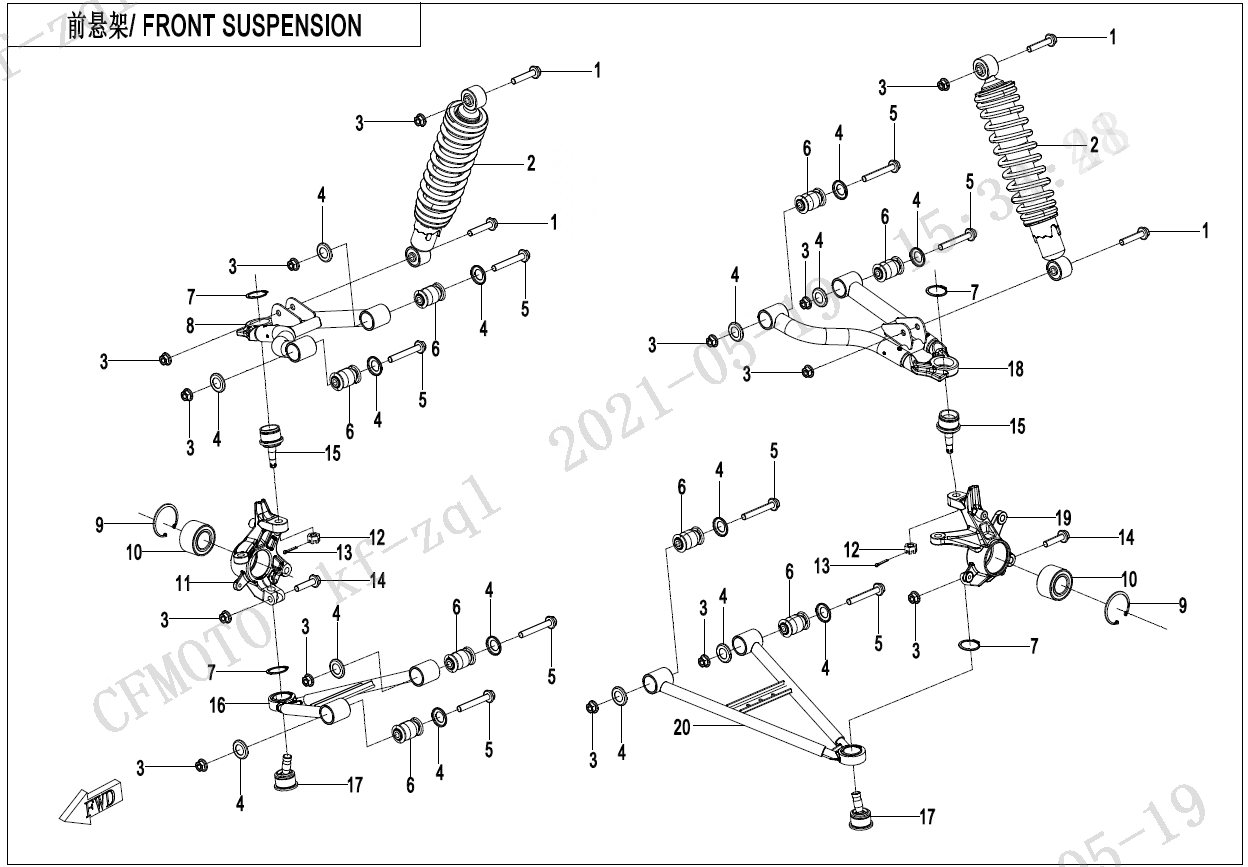

FRONT SUSPENSION - F05-V1

FRONT SUSPENSION - F05-V1

No.

01
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2022-08-02
Alternative parts:
Specification: M10×1.25×55
Price: 1,60 € : 1,60 €
-+
02
P/N (SKU): 9DS#-050600-6000
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2022-08-02
Alternative parts:
Specification: BLACK
Price: 92,80 € : 92,80 €
-+
03
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2022-08-02
Alternative parts:
Specification: M10×1.25
Price: 1,00 € : 1,00 €
-+
04
P/N (SKU): 9DSV-050900-6K00
Part Name: CUSHION SLEEVE CAP
Effective: 2022-08-02
Alternative parts:
Price: 1,00 € : 1,00 €
-+
05
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2022-08-02
Alternative parts:
Specification: M10×1.25×70
Price: 1,00 € : 1,00 €
-+
06
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2022-08-02
Alternative parts:
Price: 3,70 € : 3,70 €
-+
07
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2022-08-02
Alternative parts:
Specification: 34
Price: 1,00 € : 1,00 €
-+
08
P/N (SKU): 9DSV-050310-6K00
Part Name: FRONT UPPER RH SWING ARM ASSY
Effective: 2022-08-02
Alternative parts: 9DSV-050310-6K01
Price: 60,40 € : 60,40 €
09
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2022-08-02
Alternative parts:
Specification: BLACK
Price: 2,10 € : 2,10 €
-+
10
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2022-08-02
Alternative parts:
Price: 31,30 € : 31,30 €
-+
11
P/N (SKU): 9DSV-050801-6K00
Part Name: RH STEERING KNUCKLE
Effective: 2022-08-02
Alternative parts:
Price: 54,60 € : 54,60 €
-+
12
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2022-08-02
Alternative parts:
Specification: M10x1.25
Price: 1,70 € : 1,70 €
-+
13
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2022-08-02
Alternative parts:
Specification: φ2×16
Price: 1,00 € : 1,00 €
-+
14
P/N (SKU): 30006-102045810
Part Name: BOLT
Effective: 2022-08-02
Alternative parts:
Specification: M10×1.25×45
Price: 1,60 € : 1,60 €
-+
15
P/N (SKU): 9010-050700-1000
Part Name: TOP BALL PIN
Effective: 2022-08-02
Alternative parts:
Specification: CCVI
Price: 32,60 € : 32,60 €
-+
16
P/N (SKU): 9DSV-050410-6K00
Part Name: FRONT LOWER RH SWING ARM ASSY
Effective: 2022-08-02
Alternative parts: 9DSV-050410-6K01
Specification: ELECTROPHORESIS BLAC
Price: 42,00 € : 42,00 €
17
P/N (SKU): 9010-050800-20000
Part Name: LOWER BALL PIN ASSY.
Effective: 2022-08-02
Alternative parts:
Price: 32,60 € : 32,60 €
-+
18
P/N (SKU): 9DSV-050110-6K00
Part Name: FRONT UPPER LH SWING ARM ASSY
Effective: 2022-08-02
Alternative parts: 9DSV-050110-6K01
Price: 60,40 € : 60,40 €
19
P/N (SKU): 9DSV-050701-6K00
Part Name: LH STEERING KNUCKLE
Effective: 2022-08-02
Alternative parts:
Price: 54,60 € : 54,60 €
-+
20
P/N (SKU): 9DSV-050210-6K00
Part Name: FRONT LOWER LH SWING ARM ASSY
Effective: 2022-08-02
Alternative parts: 9DSV-050210-6K01
Specification: ELECTROPHORESIS BLAC
Price: 39,60 € : 39,60 €
