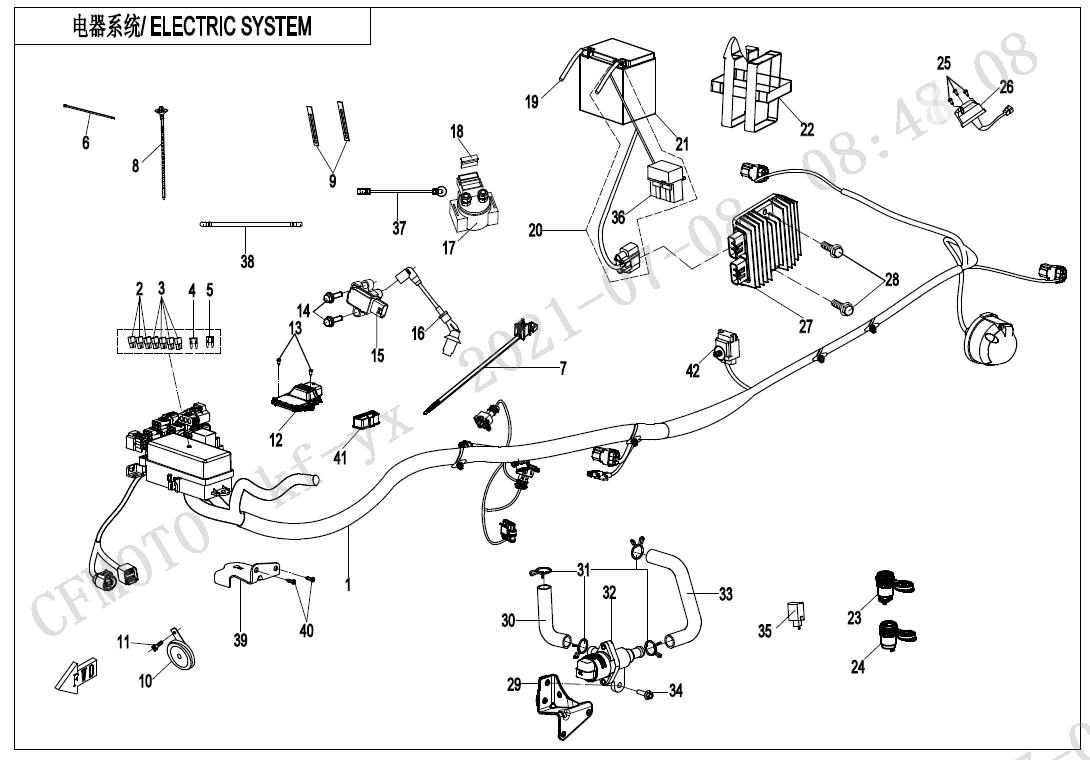

ELECTRIC SYSTEM - F15-1-A-V2

ELECTRIC SYSTEM - F15-1-A-V2

No.

01
P/N (SKU): 9DSV-150100-7300
Part Name: MAIN CABLE
Effective: 2021-07-08
Alternative parts: 9DSV-150100-7301
Specification: null
Price: 510,00 € : 510,00 €
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
04
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 15A
Price: 1,50 € : 1,50 €
05
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
07
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2021-07-08
Remarks: null
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2021-07-08
Remarks: null
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
11
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9DS#-001000-7000
Part Name: ECU ASSY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: MSE6.0
Price: 190,00 € : 190,00 €
13
P/N (SKU): 30105-060016410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
14
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GR0-178000
Part Name: HIGH-TENSION CABLE
Effective: 2021-07-08
Alternative parts: 0GR0-178000-10000
Price: 16,00 € : 16,00 €
16
P/N (SKU): 0GR0-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2021-11-16
Remarks: null
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 5BY4-151301
Part Name: 30A FUSE
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
19
P/N (SKU): 9DS#-150210-6000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 16,00 € : 16,00 €
20
P/N (SKU): 9DS#-150230-6002
Part Name: BATTERY POSITIVE WIRE
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 34,00 € : 34,00 €
21
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
22
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9DSV-150600-6R00
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-07-08
Alternative parts: 9DSV-150600-6R01
Specification: null
Price: 34,00 € : 34,00 €
23
P/N (SKU): 9DSV-150600-6R01
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2021-12-04
Remarks: null
Alternative parts: 5KWV-151200-1200
Specification: null
Price: 55,00 € : 55,00 €
24
P/N (SKU): 9DSV-150500-6R00
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-07-08
Alternative parts: 9DSV-150500-6R01
Specification: null
Price: 22,00 € : 22,00 €
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2021-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 22,00 € : 22,00 €
25
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 7020-150800-20000
Part Name: TRAILER POWER SOCKET
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
27
P/N (SKU): 0800-177000-30000
Part Name: REGULATOR
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 600W
Price: 137,00 € : 137,00 €
-+
28
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
30
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2021-07-08
Remarks: null
Alternative parts: 9GQV-001002-9000
Price: 12,00 € : 12,00 €
31
P/N (SKU): 30601-118010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: A18
Price: 1,50 € : 1,50 €
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 90,00 € : 90,00 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2021-07-08
Remarks: null
Alternative parts: 9GQA-001001-00001/9GQV-001001-9000
Price: 18,00 € : 18,00 €
-+
34
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DS#-150340-6002
Part Name: FLASHER
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 18,00 € : 18,00 €
-+
36
P/N (SKU): CFC#-150008-4500
Part Name: FUSE 50A
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
37
P/N (SKU): 9DS#-150220-6001
Part Name: STARTER MOTOR CABLE
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 21,00 € : 21,00 €
38
P/N (SKU): 9DS#-150250-6000
Part Name: STARTER NEGATIVE CABLE
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
39
P/N (SKU): 9DS#-030501-6000
Part Name: FUSE BOX BRACKET
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
40
P/N (SKU): 30110-420130010
Part Name: SELF-TAPPING SCREW_ST4.2x13
Effective: 2021-07-08
Remarks: null
Alternative parts: 30110-421130010
Specification: PERFORMANCE GRADE 4.8_SURFACE TREATMENT: COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
41
P/N (SKU): 5BY0-150304
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Price: 9,50 € : 9,50 €
-+
42
P/N (SKU): 9CR6-103501
Part Name: FUSE 40A
Effective: 2021-07-08
Remarks: null
Alternative parts: null
Specification: 40A
Price: 4,00 € : 4,00 €
