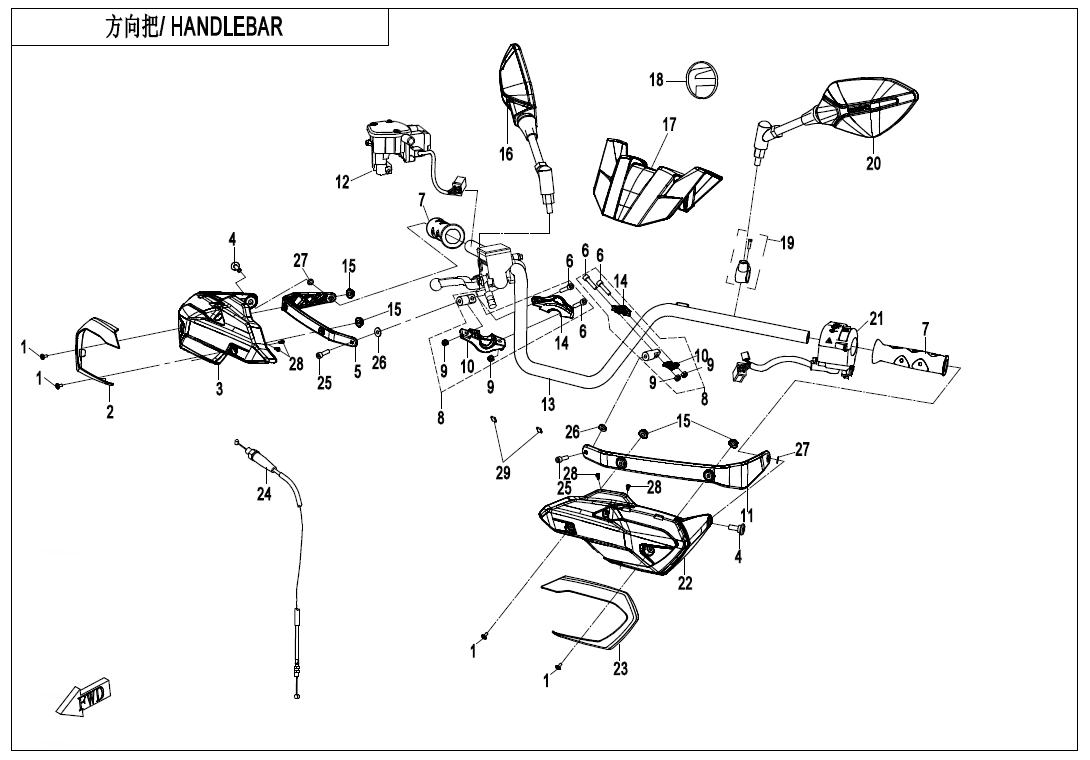

HANDLEBAR - F10-1-V1

HANDLEBAR - F10-1-V1

No.

01
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2021-07-03
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 9AWA-101302-0EC00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: NEW ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0VF00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: PAINTED ULTRA SILVER
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0BM00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: NEBULA BLACK
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0B300
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: PEARL BLACK
Price: 7,00 € : 7,00 €
-+
02
P/N (SKU): 9AWA-101302-0YD00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
-+
02
P/N (SKU): 9AWA-101302-0RE00
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
02
P/N (SKU): 9AWA-101302-0E800
Part Name: DECO PLATE, RH HAND GUARD
Effective: 2021-07-03
Specification: CORAL BLUE
Price: 4,00 € : 4,00 €
-+
02
P/N (SKU): 9AWA-101302-0B500
Part Name: DECO PLATE, HAND GUARD(RH)
Effective: 2021-07-03
Specification: TITANIUM GRAY
Price: 5,50 € : 5,50 €
-+
03
P/N (SKU): 9AWA-101301-10000
Part Name: HAND GUARD, RH
Effective: 2021-07-03
Price: 10,00 € : 10,00 €
-+
04
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2021-07-03
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9AWA-101303-10000
Part Name: HANDGUARD LEVER, RH
Effective: 2021-07-03
Price: 6,50 € : 6,50 €
-+
06
P/N (SKU): 30102-060025700
Part Name: SCREW M6x25
Effective: 2021-07-03
Alternative parts: 30102-060025810
Specification: M6x25
Price: 1,50 € : 1,50 €
06
P/N (SKU): 30102-060022810
Part Name: SCREW M6x22
Effective: 2021-07-03
Specification: M6x22
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 8060-100001
Part Name: LH HAND GRIP
Effective: 2021-07-03
Price: 7,50 € : 7,50 €
-+
08
P/N (SKU): 9AWA-101230-10000
Part Name: BRACKET ASSY
Effective: 2021-07-03
Price: 12,00 € : 12,00 €
-+
09
P/N (SKU): 30224-060810
Part Name: NUT M6
Effective: 2021-07-03
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 9CR6-101204-10000
Part Name: PRESS COVER, BRACKET
Effective: 2021-07-03
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 9AWA-101203-20000
Part Name: HANDGUARD LEVER, LH
Effective: 2021-07-03
Price: 7,00 € : 7,00 €
-+
12
P/N (SKU): 9DS#-160320-6301
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-07-03
Remarks: MATCHED WITH DIFFERENTIAL REAR AXLE
Alternative parts: 9DSV-160320-6302
Price: 46,00 € : 46,00 €
12
P/N (SKU): 9DS#-160320-6001
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-07-03
Alternative parts: 9DSV-160320-6002
Price: 41,00 € : 41,00 €
-+
12
P/N (SKU): 9DSV-160320-6302
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-07-03
Remarks: MATCHED WITH DIFFERENTIAL REAR AXLE
Price: 47,00 € : 47,00 €
-+
12
P/N (SKU): 9DSV-160320-6002
Part Name: HANDLEBAR SWITCH ASSY, RH
Effective: 2021-07-03
Price: 42,00 € : 42,00 €
-+
13
P/N (SKU): 9CR6-101100-10000
Part Name: HANDLEBAR ASSY
Effective: 2021-07-03
Alternative parts: 9DSV-101100-6K00-0BU00
Price: 47,00 € : 47,00 €
14
P/N (SKU): 9CR6-101202-10000
Part Name: SEAT, BRACKET
Effective: 2021-07-03
Price: 2,50 € : 2,50 €
-+
15
P/N (SKU): 30212-060810
Part Name: CAP-SHAPE BOLT M6
Effective: 2021-07-03
Specification: M6
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30206-060570
Part Name: NUT
Effective: 2021-07-03
Alternative parts: 30206-060510
Price: 3,00 € : 3,00 €
16
P/N (SKU): 9AY0-200300
Part Name: REAR VIEW MIRROR ASSY, RH
Effective: 2021-07-03
Price: 29,00 € : 29,00 €
-+
17
P/N (SKU): 9DS#-101001-6001
Part Name: UPPER GUARD, HANDLEBAR
Effective: 2021-07-03
Alternative parts: 9DSV-101001-6002
Price: 7,50 € : 7,50 €
17
P/N (SKU): 9DSV-101001-6002
Part Name: UPPER GUARD, HANDLEBAR
Effective: 2021-07-03
Alternative parts: 9DSV-101001-6K00
Price: 6,00 € : 6,00 €
18
P/N (SKU): 9CR6-190001
Part Name: CFMOTO LOGO
Effective: 2021-07-03
Alternative parts: 9AWV-190001-2E00
Specification: SMALL
Price: 7,00 € : 7,00 €
-+
19
P/N (SKU): 9CR6-080400
Part Name: MOUNTING SEAT, REAR VIEW MIRROR
Effective: 2021-07-03
Price: 7,50 € : 7,50 €
-+
20
P/N (SKU): 9AY0-200200
Part Name: REAR VIEW MIRROR ASSY, LH
Effective: 2021-07-03
Price: 29,00 € : 29,00 €
-+
21
P/N (SKU): 9DS#-160310-6301
Part Name: HANDLEBAR SWITCH ASSY, LH
Effective: 2021-07-03
Alternative parts: 9DSV-160310-6302
Price: 36,00 € : 36,00 €
-+
21
P/N (SKU): 9DSV-160310-6302
Part Name: HANDLEBAR SWITCH ASSY, LH
Effective: 2021-07-03
Price: 36,00 € : 36,00 €
-+
22
P/N (SKU): 9AWA-101201-10000
Part Name: HAND GUARD, LH
Effective: 2021-07-03
Price: 10,00 € : 10,00 €
-+
23
P/N (SKU): 9AWA-101202-0EC00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: NEW ROYAL BLUE
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0VF00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: PAINTED ULTRA SILVER
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0BM00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: NEBULA BLACK
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0YD00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: LAVA ORANGE
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 9AWA-101202-0RE00
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: TRUE TIMBER CAMO
Price: 31,00 € : 31,00 €
-+
23
P/N (SKU): 9AWA-101202-0E800
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: CORAL BLUE
Price: 7,00 € : 7,00 €
-+
23
P/N (SKU): 9AWA-101202-0B300
Part Name: DECO PLATE, LH HAND GUARD
Effective: 2021-07-03
Specification: PEARL BLACK
Price: 5,00 € : 5,00 €
-+
23
P/N (SKU): 9AWA-101202-0B500
Part Name: DECO PLATE, HAND GUARD(LH)
Effective: 2021-07-03
Specification: TITANIUM GRAY
Price: 5,50 € : 5,50 €
-+
24
P/N (SKU): 9CR6-105000
Part Name: THROTTLE CABLE
Effective: 2021-07-03
Price: 14,00 € : 14,00 €
-+
25
P/N (SKU): 6NQ#-000203-6001
Part Name: INNER HEX SCREW M6x20
Effective: 2021-07-03
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-07-03
Specification: 6
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30305-080112
Part Name: WASHER
Effective: 2021-07-03
Specification: 8
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30110-420095010
Part Name: SELF-TAPPING SCREW ST4.2x9.5
Effective: 2021-07-03
Specification: ST4.2x9.5
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 6NT1-041510
Part Name: BUCKLE ASSY
Effective: 2021-07-03
Price: 2,50 € : 2,50 €
-+
