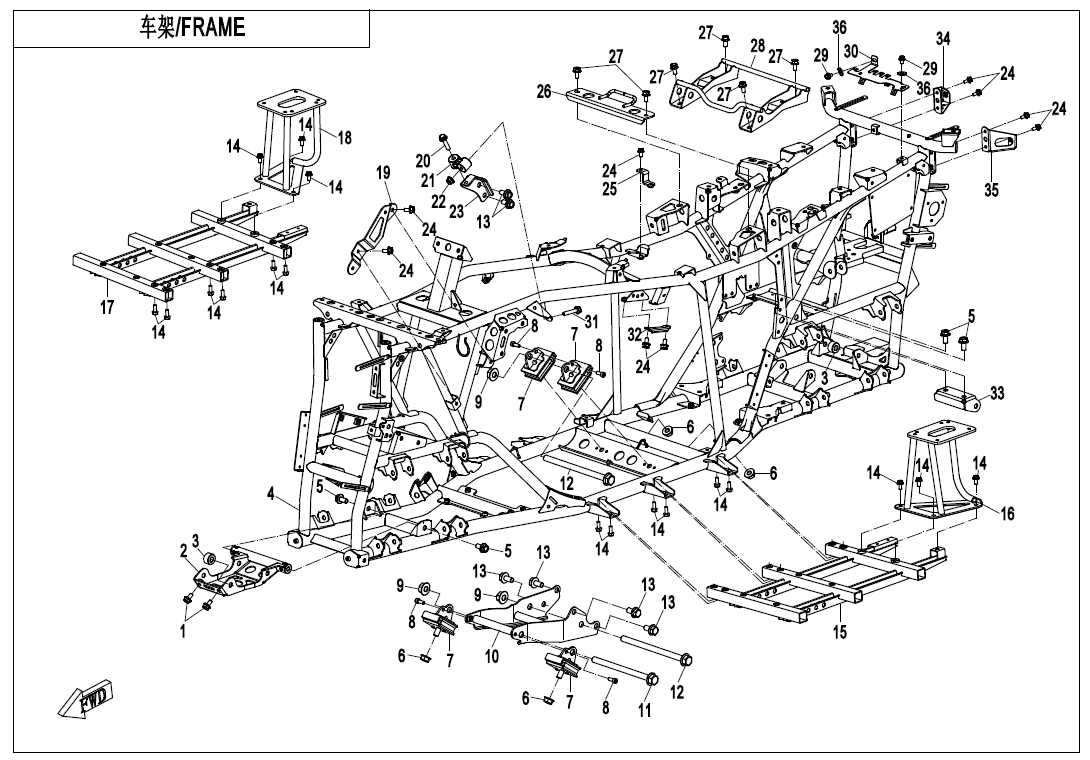

FRAME - F03

FRAME - F03

No.

01
P/N (SKU): 30006-080014810
Part Name: BOLT M8x14
Effective: 2021-07-03
Alternative parts:
Specification: M8x14
Price: 0,55 € : 0,55 €
-+
02
P/N (SKU): 9DS#-030100-6001
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-07-03
Alternative parts:
Price: 19,80 € : 19,80 €
-+
03
P/N (SKU): 9AWA-030002
Part Name: BUSHING, FRONT GEAR CASE
Effective: 2021-07-03
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9CS#-031000-6402-01
Part Name: FRAME
Effective: 2021-07-03
Alternative parts: 9CSV-031000-6K00-01
Price: 1 011,40 € : 1 011,40 €
05
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2021-07-03
Alternative parts:
Specification: M10x1.25x20
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-07-03
Alternative parts:
Specification: M10x1.25
Price: 0,55 € : 0,55 €
-+
07
P/N (SKU): 401B-000200-10000
Part Name: DAMPER
Effective: 2021-07-03
Alternative parts:
Price: 12,10 € : 12,10 €
-+
08
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2021-07-03
Alternative parts:
Price: 0,55 € : 0,55 €
-+
09
P/N (SKU): 30204-122810
Part Name: NUT M12x1.25
Effective: 2021-07-03
Alternative parts:
Specification: M12x1.25
Price: 1,05 € : 1,05 €
-+
10
P/N (SKU): 9CR6-001100-20000
Part Name: FRONT BRACKET, ENGINE
Effective: 2021-07-03
Alternative parts:
Price: 25,50 € : 25,50 €
-+
11
P/N (SKU): 30006-122170810
Part Name: BOLT M12x1.25x170
Effective: 2021-07-03
Alternative parts:
Specification: M12x1.25x170
Price: 3,30 € : 3,30 €
-+
12
P/N (SKU): 30006-122180810
Part Name: BOLT M12x1.25x180
Effective: 2021-07-03
Alternative parts:
Specification: M12x1.25x180
Price: 3,70 € : 3,70 €
-+
13
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2021-07-03
Alternative parts:
Specification: M10x20
Price: 0,95 € : 0,95 €
-+
14
P/N (SKU): 30006-080020810
Part Name: BOLT M8x20
Effective: 2021-07-03
Alternative parts:
Specification: M8x20
Price: 0,85 € : 0,85 €
-+
15
P/N (SKU): 9CS#-030300-6401
Part Name: BRACKET, LH FOOTREST
Effective: 2021-07-03
Alternative parts:
Price: 62,60 € : 62,60 €
-+
16
P/N (SKU): 9CS#-030500-6400
Part Name: BRACKET, LH PEDAL
Effective: 2021-07-03
Alternative parts:
Price: 43,60 € : 43,60 €
-+
17
P/N (SKU): 9CS#-030400-6401
Part Name: BRACKET, RH FOOTREST
Effective: 2021-07-03
Alternative parts:
Price: 62,60 € : 62,60 €
-+
18
P/N (SKU): 9CS#-030600-6400
Part Name: BRACKET, RH PEDAL
Effective: 2021-07-03
Alternative parts:
Price: 38,80 € : 38,80 €
-+
19
P/N (SKU): 9DS#-030070-6000
Part Name: BRACKET, EPS CONTROLLER
Effective: 2021-07-03
Alternative parts:
Price: 7,35 € : 7,35 €
-+
20
P/N (SKU): 30006-080035810
Part Name: BOLT M8x35
Effective: 2021-07-03
Alternative parts:
Specification: M8x35
Price: 0,55 € : 0,55 €
-+
21
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2021-07-03
Alternative parts:
Price: 6,10 € : 6,10 €
-+
22
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2021-07-03
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
23
P/N (SKU): 9DS#-030040-6001
Part Name: UPPER BRACKET, ENGINE
Effective: 2021-07-03
Alternative parts:
Price: 7,00 € : 7,00 €
-+
24
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-07-03
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
25
P/N (SKU): 9DR8-035070-20000
Part Name: CONNECTING BRACKET, AIR FILTER
Effective: 2021-07-03
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 4,80 € : 4,80 €
-+
26
P/N (SKU): 9DS#-030020-6000
Part Name: BRACKET, FRONT SEAT
Effective: 2021-07-03
Alternative parts:
Price: 12,90 € : 12,90 €
-+
27
P/N (SKU): 30006-080016810
Part Name: BOLT M8x16
Effective: 2021-07-03
Alternative parts:
Specification: M8x16
Price: 0,55 € : 0,55 €
-+
28
P/N (SKU): 9CS#-030100-6400
Part Name: BRACKET, REAR SEAT
Effective: 2021-07-03
Alternative parts:
Price: 55,30 € : 55,30 €
-+
29
P/N (SKU): 30006-060010810
Part Name: BOLT M6x10
Effective: 2021-07-03
Alternative parts:
Specification: GB5789 M6x10 TRIVALENT CHROMIUM 8.8
Price: 1,25 € : 1,25 €
-+
30
P/N (SKU): 9DS#-030081-6000
Part Name: PRESSING PLATE IV, WIRE CONNNECTOR
Effective: 2021-07-03
Alternative parts:
Price: 5,90 € : 5,90 €
-+
31
P/N (SKU): 30006-080040810
Part Name: BOLT M8x40
Effective: 2021-07-03
Alternative parts:
Specification: M8x40
Price: 0,95 € : 0,95 €
-+
32
P/N (SKU): 9DS#-030091-6000
Part Name: PRESSING PLATE III, WIRE CONNNECTOR
Effective: 2021-07-03
Alternative parts:
Price: 4,80 € : 4,80 €
-+
33
P/N (SKU): 9CRB-030010
Part Name: SUSPENSION BRACKET ASSY, REAR GEAR CASE
Effective: 2021-07-03
Alternative parts:
Price: 6,25 € : 6,25 €
-+
34
P/N (SKU): 9DS#-030504-6000
Part Name: RH BRACKET, REAR TRUNK
Effective: 2021-07-03
Alternative parts:
Price: 3,70 € : 3,70 €
-+
35
P/N (SKU): 9DS#-030503-6000
Part Name: LH BRACKET, REAR TRUNK
Effective: 2021-07-03
Alternative parts:
Price: 3,70 € : 3,70 €
-+
36
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2021-07-03
Alternative parts:
Specification: 6
Price: 0,55 € : 0,55 €
-+
