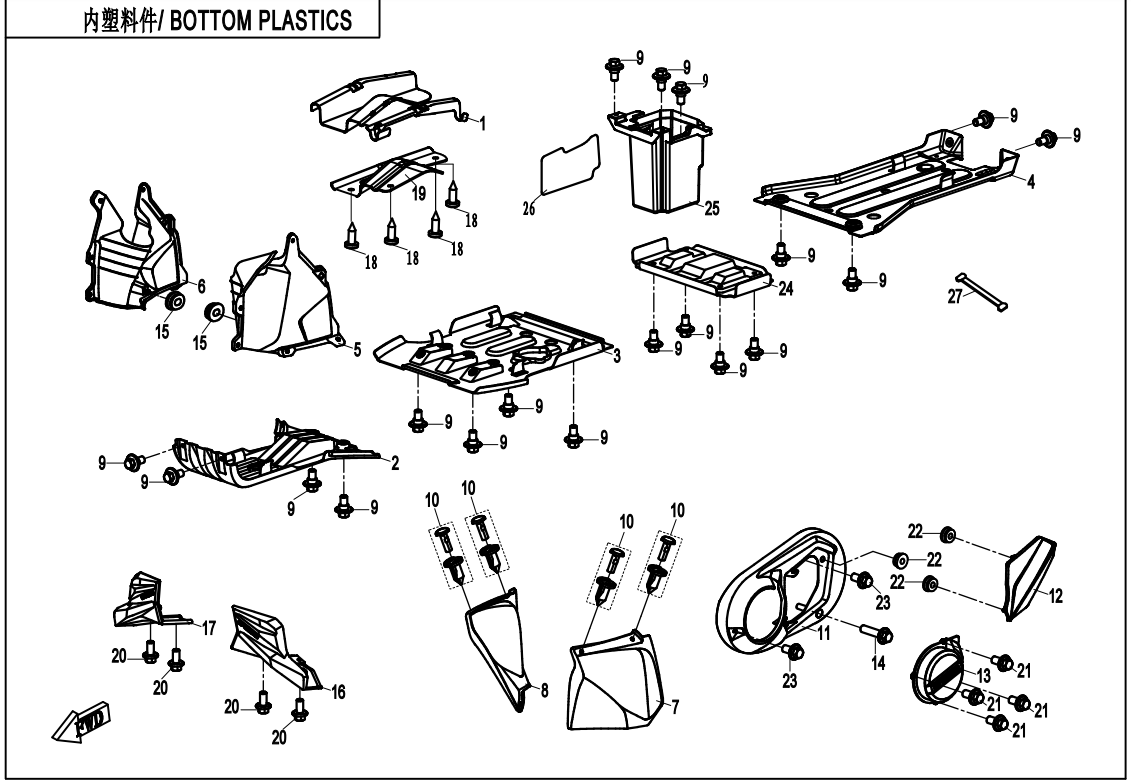

BOTTOM PLASTICS - F04-4-V4

BOTTOM PLASTICS - F04-4-V4

No.

01
P/N (SKU): 9GQ0-044011-20000
Part Name: LOWER PANEL, FUEL TANK
Effective: 2021-07-08
Alternative parts:
Price: 15,00 € : 15,00 €
-+
02
P/N (SKU): 9GQ0-044021
Part Name: FRONT PANEL, ENGINE
Effective: 2021-07-08
Alternative parts:
Price: 17,00 € : 17,00 €
-+
03
P/N (SKU): 9GQ0-044022
Part Name: MIDDLE PANEL, ENGINE
Effective: 2021-07-08
Alternative parts: 9GQV-044022-1000
Price: 18,00 € : 18,00 €
04
P/N (SKU): 9GQ0-044023-10000
Part Name: REAR PANEL, ENGINE
Effective: 2021-07-08
Alternative parts: 9GQV-044023-1000
Price: 18,00 € : 18,00 €
05
P/N (SKU): 9GQ0-044031
Part Name: FRONT UPPER INNER FENDER, LH
Effective: 2021-07-08
Alternative parts:
Price: 23,00 € : 23,00 €
-+
06
P/N (SKU): 9GQ0-044032
Part Name: FRONT UPPER INNER FENDER, RH
Effective: 2021-07-08
Alternative parts:
Price: 12,00 € : 12,00 €
-+
07
P/N (SKU): 9GQ0-044033-10000
Part Name: FRONT LOWER INNER FENDER,LH
Effective: 2021-07-08
Alternative parts:
Price: 9,50 € : 9,50 €
-+
08
P/N (SKU): 9GQ0-044034-10000
Part Name: FRONT LOWER INNER FENDER,RH
Effective: 2021-07-08
Alternative parts:
Price: 9,50 € : 9,50 €
-+
09
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-07-08
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9060-040310
Part Name: PLASTIC CLIPS
Effective: 2021-07-08
Alternative parts:
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 9CR6-044051-10000
Part Name: LH COVER, ENGINE
Effective: 2021-07-08
Alternative parts:
Price: 14,00 € : 14,00 €
-+
12
P/N (SKU): 9CR6-044052
Part Name: CAP, OIL FILLER
Effective: 2021-07-08
Alternative parts: 9CRV-044052-2400
Price: 8,50 € : 8,50 €
12
P/N (SKU): 9CRV-044052-2400
Part Name: CAP, OIL FILLER
Effective: 2021-11-12
Alternative parts:
Price: 8,50 € : 8,50 €
-+
13
P/N (SKU): 9CR6-044053
Part Name: DECO COVER, MANUAL START
Effective: 2021-07-08
Alternative parts:
Price: 4,00 € : 4,00 €
-+
14
P/N (SKU): 30006-060050810
Part Name: BOLT M6x50
Effective: 2021-07-08
Alternative parts:
Specification: M6x50
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 7020-040209
Part Name: FIXING RUBBER BUSHING
Effective: 2021-07-08
Alternative parts:
Price: 3,50 € : 3,50 €
-+
16
P/N (SKU): 9GQ0-044041
Part Name: PANEL, LH FRONT SUSPENSION
Effective: 2021-07-08
Alternative parts:
Price: 8,00 € : 8,00 €
-+
17
P/N (SKU): 9GQ0-044042
Part Name: PANEL, FRONT SUSPENSION(RH)
Effective: 2021-07-08
Alternative parts:
Price: 8,00 € : 8,00 €
-+
18
P/N (SKU): 30110-420130010
Part Name: SCREW
Effective: 2021-07-08
Alternative parts: 30110-421130010
Specification: ST4.2x13
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9GQ0-044051-20000
Part Name: LOWER HEAT INSULATOR,FUEL TANK
Effective: 2021-07-08
Alternative parts:
Price: 15,00 € : 15,00 €
-+
20
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2021-07-08
Alternative parts: 30006-060012870
Specification: M6x12
Price: 1,50 € : 1,50 €
21
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-07-08
Alternative parts:
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 0180-015003
Part Name: RUBBER BUSHING
Effective: 2021-07-08
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-07-08
Alternative parts: 30006-060016870
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 9GQL-044024
Part Name: BASE PLATE (EX)
Effective: 2021-07-08
Alternative parts: 9GQV-044024-2000
Price: 11,00 € : 11,00 €
25
P/N (SKU): 9GQL-044025-10000
Part Name: TOOL BOX
Effective: 2021-07-08
Alternative parts:
Price: 16,00 € : 16,00 €
-+
26
P/N (SKU): 9GQL-044061
Part Name: HEAT INSULATION PAPER, TOOL BOX
Effective: 2021-07-08
Alternative parts:
Price: 3,00 € : 3,00 €
-+
27
P/N (SKU): 9GQ0-040910
Part Name: TIE BAND, BATTERY
Effective: 2021-07-08
Alternative parts:
Price: 4,50 € : 4,50 €
-+
