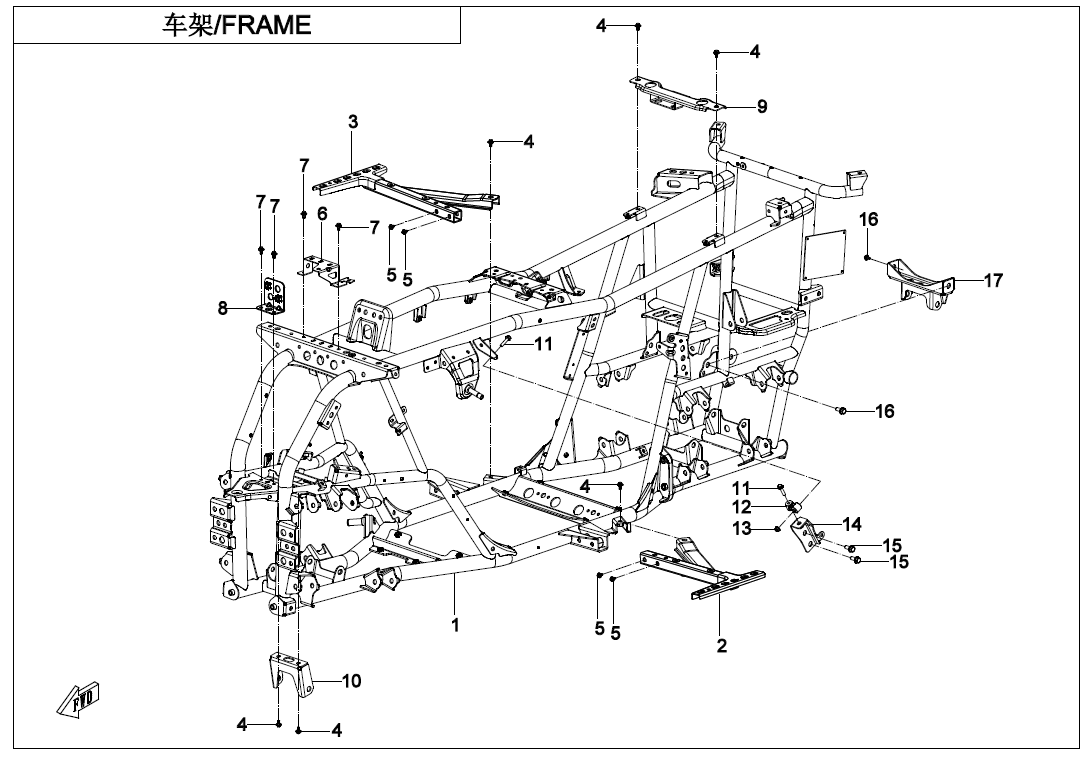

FRAME - F03

FRAME - F03

No.

01
P/N (SKU): 9DQV-031000-3000-01
Part Name: FRAME ASSY
Effective: 2022-03-31
Alternative parts: 9DQV-031000-3001-01
Price: 853,10 € : 853,10 €
01
P/N (SKU): 9DQV-031000-3001-01
Part Name: FRAME ASSY
Effective: 2022-08-05
Alternative parts: 9DQV-031000-3002-01
Price: 848,90 € : 848,90 €
02
P/N (SKU): 9DQV-030300-3000
Part Name: LH FRONT FOOT PEDAL ASSY
Effective: 2022-03-31
Alternative parts:
Price: 31,20 € : 31,20 €
-+
03
P/N (SKU): 9DQV-030400-3000
Part Name: RH FRONT FOOT PEDAL ASSY
Effective: 2022-03-31
Alternative parts:
Price: 31,20 € : 31,20 €
-+
04
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2022-03-31
Alternative parts:
Specification: M8x16
Price: 0,55 € : 0,55 €
-+
05
P/N (SKU): 30006-080045810
Part Name: BOLT M8x45
Effective: 2022-03-31
Alternative parts:
Specification: M8x45
Price: 0,95 € : 0,95 €
-+
06
P/N (SKU): 9DQV-030003-3000
Part Name: BRACKET, CVT AIR INLET PIPE
Effective: 2022-03-31
Alternative parts:
Price: 3,30 € : 3,30 €
-+
07
P/N (SKU): 30006-060012810
Part Name: BOLT M6x12
Effective: 2022-03-31
Alternative parts: 30006-060012870
Specification: M6x12
Price: 0,55 € : 0,55 €
-+
08
P/N (SKU): 9DQV-030030-3000
Part Name: BRACKET, BRAKE VALVE
Effective: 2022-03-31
Alternative parts:
Price: 2,95 € : 2,95 €
-+
09
P/N (SKU): 9DQV-030120-3000
Part Name: BRACKET, SEAT
Effective: 2022-03-31
Alternative parts:
Price: 7,00 € : 7,00 €
-+
10
P/N (SKU): 9DQV-030010-3000
Part Name: UPPER BRACKET, FRONT GEAR CASE
Effective: 2022-03-31
Alternative parts:
Price: 5,90 € : 5,90 €
-+
11
P/N (SKU): 30006-080040810
Part Name: BOLT M8x40
Effective: 2022-03-31
Alternative parts:
Specification: M8x40
Price: 0,95 € : 0,95 €
-+
12
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2022-03-31
Alternative parts:
Price: 6,10 € : 6,10 €
-+
13
P/N (SKU): 30204-080810
Part Name: NUT M8
Effective: 2022-03-31
Alternative parts:
Specification: M8
Price: 0,85 € : 0,85 €
-+
14
P/N (SKU): 9DQV-030040-3000
Part Name: UPPER BRACKET, ENGINE
Effective: 2022-03-31
Alternative parts: 9DQV-030040-3001
Price: 4,05 € : 4,05 €
15
P/N (SKU): 30006-103020810
Part Name: BOLT M10x20
Effective: 2022-03-31
Alternative parts:
Specification: M10x20
Price: 0,95 € : 0,95 €
-+
16
P/N (SKU): 30102-102020810
Part Name: SCREW M10x1.25x20
Effective: 2022-03-31
Alternative parts:
Specification: M10x1.25x20
Price: 2,05 € : 2,05 €
-+
17
P/N (SKU): 9DQV-030090-3000
Part Name: UPPER BRACKET, REAR GEAR CASE
Effective: 2022-03-31
Alternative parts:
Price: 15,10 € : 15,10 €
-+
