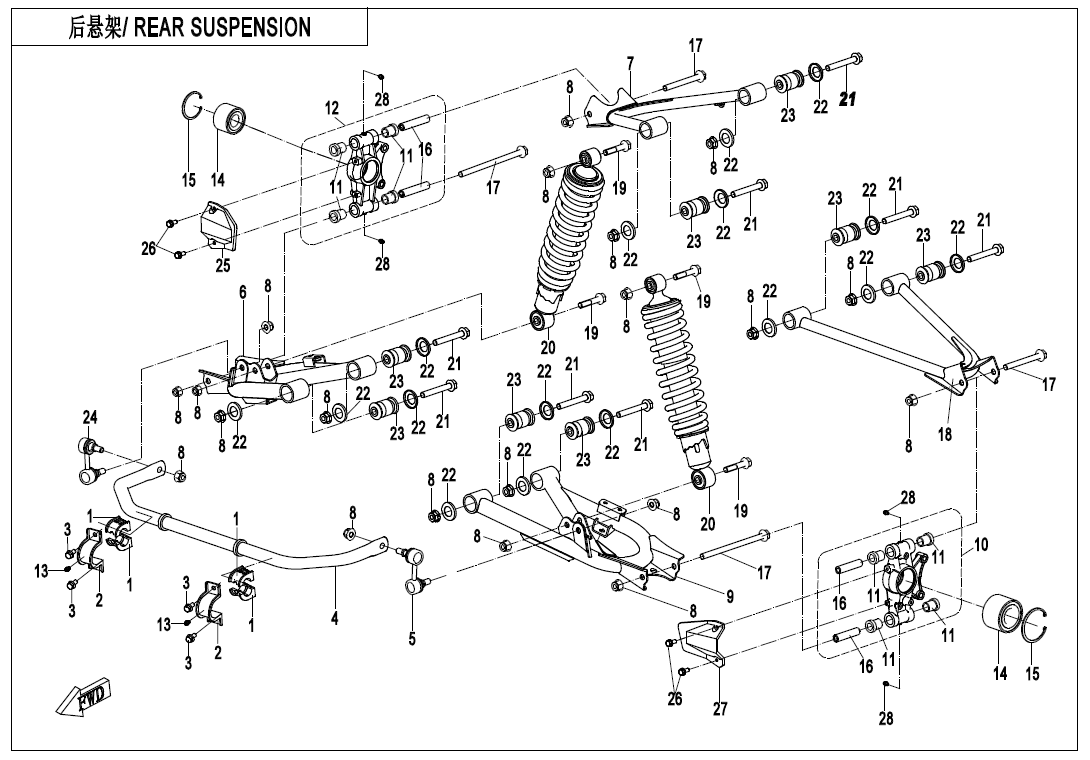

REAR SUSPENSION - F06-V6

REAR SUSPENSION - F06-V6

No.

01
P/N (SKU): 9GQ0-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
02
P/N (SKU): 9GQ0-060601-00001
Part Name: COVER, SWAY BAR
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 30006-080012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M8×12
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 9GQ0-060610-10000
Part Name: REAR SWAY BAR ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 43,00 € : 43,00 €
-+
05
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
05
P/N (SKU): 9010-060700-1000
Part Name: LH BALL PIN ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: 9010-060700-20000
Specification: SOMIC
Price: 77,00 € : 77,00 €
06
P/N (SKU): 9GQ0-060410-00002
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 57,00 € : 57,00 €
-+
07
P/N (SKU): 9GQ0-060310
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 57,00 € : 57,00 €
-+
08
P/N (SKU): 30204-102810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 9GQ0-060210-00002
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 57,00 € : 57,00 €
-+
10
P/N (SKU): 7020-0607A0
Part Name: LH REAR BEARING CARRIER ASSY,
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 84,00 € : 84,00 €
11
P/N (SKU): 9060-050003
Part Name: SHORT BUSHING, SWING ARM
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 5,50 € : 5,50 €
-+
12
P/N (SKU): 7020-0608A0
Part Name: REAR RH BEARING SEAT ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 75,00 € : 75,00 €
13
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2021-07-07
Alternative parts: null
Price: 1,50 € : 1,50 €
13
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2022-02-11
Remarks: null
Alternative parts: null
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 32,00 € : 32,00 €
-+
15
P/N (SKU): 30800-05505
Part Name: CIRCLIPS FOR HOLES
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 7020-060702-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE BUSHING
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
17
P/N (SKU): 30006-102100810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M10x1.25x100
Price: 2,00 € : 2,00 €
-+
18
P/N (SKU): 9GQ0-060110
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 57,00 € : 57,00 €
-+
19
P/N (SKU): 30006-102055810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
20
P/N (SKU): 9GQ0-060500
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 102,00 € : 102,00 €
-+
21
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M10×1.25×70
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2021-07-07
Remarks: null
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
23
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
24
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
24
P/N (SKU): 9010-060800-1000
Part Name: RH BALL PIN ASSY
Effective: 2021-07-07
Remarks: null
Alternative parts: 9010-060800-20000
Specification: SOMIC
Price: 28,00 € : 28,00 €
25
P/N (SKU): 9GQ0-044046
Part Name: REAR RH SUSPENSION SMALL FENDER
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
26
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 9GQ0-044045
Part Name: LH FENDER, REAR SUSPENSION
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
28
P/N (SKU): 3121400
Part Name: OIL CUP
Effective: 2021-07-07
Remarks: null
Alternative parts: null
Specification: 90 DEGREE
Price: 2,00 € : 2,00 €
