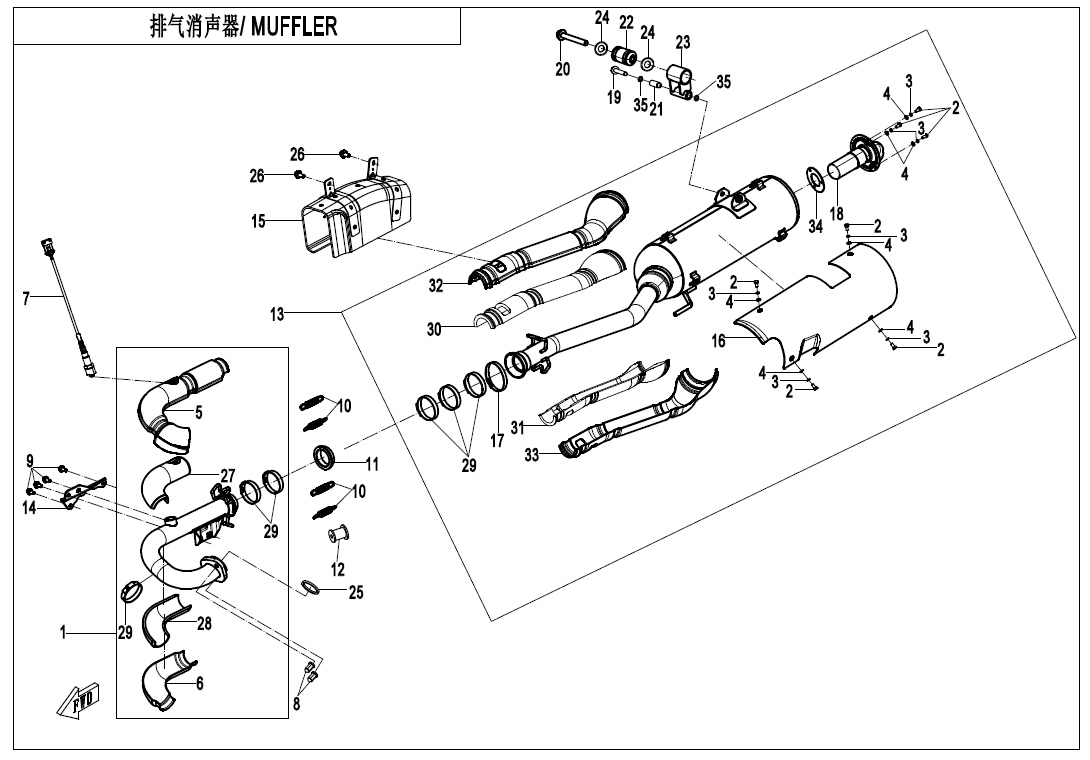

MUFFLER - F02-V4

MUFFLER - F02-V4

No.

01
P/N (SKU): 9GQ0-021100-10000
Part Name: EXHAUST PIPE ASSY
Effective: 2022-02-10
Alternative parts:
Price: 47,00 € : 47,00 €
-+
02
P/N (SKU): 30000-060012700
Part Name: BOLT
Effective: 2022-02-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30303-060900
Part Name: WASHER
Effective: 2022-02-10
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
04
P/N (SKU): 30306-060800
Part Name: WASHER
Effective: 2022-02-10
Alternative parts:
Specification: 6
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 9DS#-021101-6000
Part Name: UPPER HEAT INSULATOR, FRONT EXHAUST PIPE
Effective: 2022-02-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
06
P/N (SKU): 9DS#-021102-6000
Part Name: LOWER HEAT INSULATOR, FRONT EXHAUST PIPE
Effective: 2022-02-10
Alternative parts:
Price: 5,00 € : 5,00 €
-+
07
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2022-02-10
Alternative parts:
Price: 84,00 € : 84,00 €
-+
08
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2022-02-10
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2022-02-10
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9CR6-020002-00001
Part Name: DRAG SPRING,MUFFLER
Effective: 2022-02-10
Alternative parts:
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 9AWA-021003-00001
Part Name: SMALL GRAPHITE RING
Effective: 2022-02-10
Alternative parts: 9AWA-021003-00002
Price: 12,00 € : 12,00 €
11
P/N (SKU): 9AWA-021003-00002
Part Name: SMALL GRAPHITE RING
Effective: 2022-09-14
Alternative parts:
Price: 12,00 € : 12,00 €
-+
12
P/N (SKU): 9GQ0-020002
Part Name: RUBBER BUSHING, MUFFLER
Effective: 2022-02-10
Alternative parts:
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 9GQL-021200-30002
Part Name: MUFFLER ASSY
Effective: 2022-02-10
Alternative parts:
Price: 803,00 € : 803,00 €
-+
14
P/N (SKU): 9GQ0-020001-00002
Part Name: EXHAUST PIPE SUPPORT PLATE
Effective: 2022-02-10
Alternative parts: 9GQ0-020001-00003
Price: 4,00 € : 4,00 €
14
P/N (SKU): 9GQ0-020001-00003
Part Name: EXHAUST PIPE SUPPORT PLATE
Effective: 2022-08-25
Alternative parts:
Price: 4,00 € : 4,00 €
-+
15
P/N (SKU): 9GQ0-020010
Part Name: SPRING HEAT INSULATION PLATE ASSY
Effective: 2022-02-10
Alternative parts:
Price: 12,00 € : 12,00 €
-+
16
P/N (SKU): 9GQ0-021201-20000
Part Name: HEAT INSULATOR, MUFFLER BODY
Effective: 2022-02-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9030-000109
Part Name: SCREW CLAMP, A-TYPE
Effective: 2022-02-10
Alternative parts:
Specification: 70~90
Price: 3,50 € : 3,50 €
-+
18
P/N (SKU): 9GQ0-021320
Part Name: SPARK ARRESTOR
Effective: 2022-02-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
19
P/N (SKU): 30006-080065810
Part Name: BOLT
Effective: 2022-02-10
Alternative parts:
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2022-02-10
Alternative parts:
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2022-02-10
Alternative parts:
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 9010-050500
Part Name: CUSHION SLEEVE ASSY
Effective: 2022-02-10
Alternative parts: 5HYV-020030-1600
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9CR6-020020
Part Name: MOUNT ASSY, MUFFLER
Effective: 2022-02-10
Alternative parts: 9CR6-020020-00001
Price: 9,50 € : 9,50 €
-+
24
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2022-02-10
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
-+
25
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2022-02-10
Alternative parts:
Price: 4,50 € : 4,50 €
-+
26
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2022-02-10
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
27
P/N (SKU): 9DS#-021100-6000-20
Part Name: UPPER HEAT INSULATOR
Effective: 2022-02-10
Alternative parts:
Price: 5,00 € : 5,00 €
-+
28
P/N (SKU): 9DS#-021100-6000-21
Part Name: LOWER HEAT INSULATOR
Effective: 2022-02-10
Alternative parts:
Price: 5,00 € : 5,00 €
-+
29
P/N (SKU): 7030-021305
Part Name: SCREW CLAMP, A-TYPE
Effective: 2022-02-10
Alternative parts:
Price: 4,00 € : 4,00 €
-+
30
P/N (SKU): 9GQL-021204
Part Name: UPPER HEAT INSULATOR
Effective: 2022-02-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
31
P/N (SKU): 9GQL-021205
Part Name: LOWER HEAT INSULATOR
Effective: 2022-02-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
32
P/N (SKU): 9GQL-021201
Part Name: UPPER HEAT INSULATOR, RAER EXHAUST PIPE
Effective: 2022-02-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
33
P/N (SKU): 9GQL-021203
Part Name: LOWER HEAT INSULATOR, RAER EXHAUST PIPE
Effective: 2022-02-10
Alternative parts:
Price: 17,00 € : 17,00 €
-+
34
P/N (SKU): 9DS#-021001-6000
Part Name: SEAL GASKET,GRAPHITE
Effective: 2022-02-10
Alternative parts:
Price: 3,00 € : 3,00 €
-+
35
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2022-02-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
