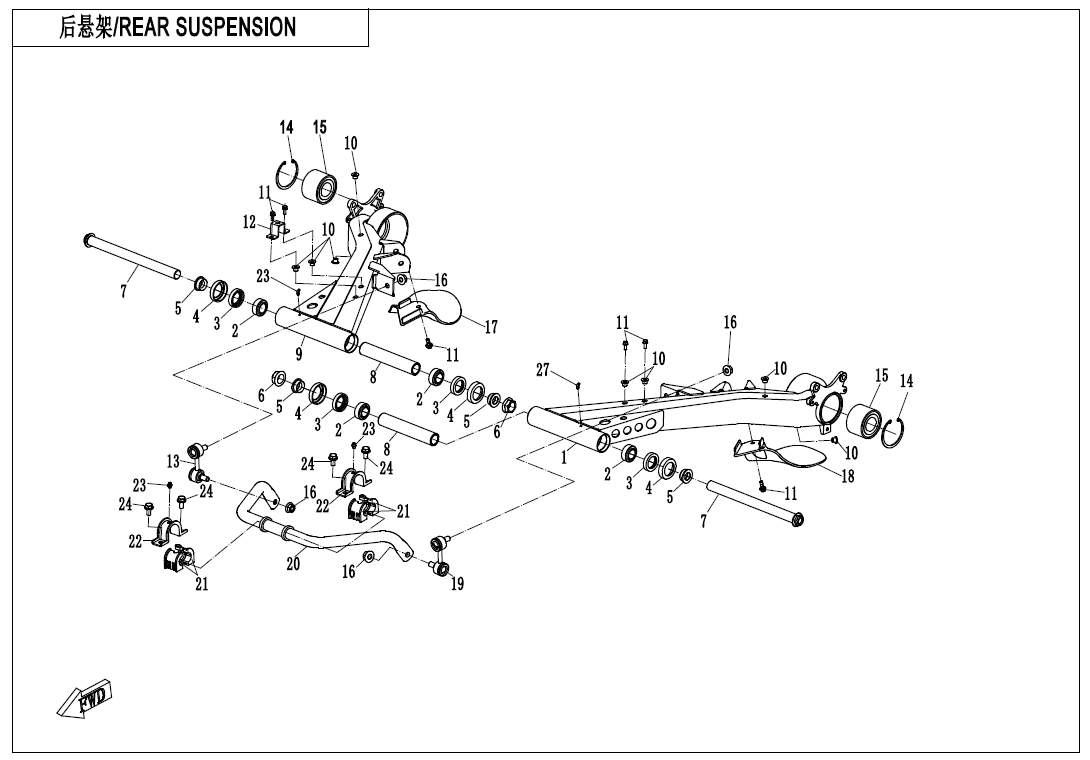

REAR SUSPENSION(WELDING) - F06-1-A

REAR SUSPENSION(WELDING) - F06-1-A

No.

01
P/N (SKU): 9AWA-060110-20000
Part Name: REAR SWING ARM, LH
Effective: 2021-07-12
Alternative parts:
Price: 224,20 € : 224,20 €
-+
01
P/N (SKU): 9AWA-060110-2H900
Part Name: REAR LH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: GHOST GRAY
Price: 231,50 € : 231,50 €
-+
01
P/N (SKU): 9AWA-060110-2E800
Part Name: REAR LH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: CORAL BLUE
Price: 233,70 € : 233,70 €
-+
01
P/N (SKU): 9AWA-060110-2Y600
Part Name: REAR LH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 233,10 € : 233,10 €
-+
02
P/N (SKU): 9AWA-060109
Part Name: BEARING, REAR SWINGARM
Effective: 2021-07-12
Alternative parts:
Price: 16,34 € : 16,34 €
-+
03
P/N (SKU): 9AWA-060106
Part Name: OIL SEAL 24x38x8
Effective: 2021-07-12
Alternative parts:
Specification: 24x38x8
Price: 2,30 € : 2,30 €
-+
04
P/N (SKU): 9AWA-060105-10000
Part Name: DUST COVER
Effective: 2021-07-12
Alternative parts: 9AWA-060105
Price: 1,70 € : 1,70 €
-+
05
P/N (SKU): 9AWA-060102
Part Name: BUSHING, SWING ARM
Effective: 2021-07-12
Alternative parts:
Price: 4,10 € : 4,10 €
-+
06
P/N (SKU): 9AWA-060108
Part Name: LOCK NUT, SWING ARM
Effective: 2021-07-12
Alternative parts:
Price: 3,60 € : 3,60 €
-+
07
P/N (SKU): 9AWA-060103
Part Name: REAR SWING ARM SHAFT
Effective: 2021-07-12
Alternative parts: 9AWV-060103-2E00
Price: 24,40 € : 24,40 €
-+
08
P/N (SKU): 9AWA-060101-10000
Part Name: INNER LINER, REAR SWING ARM
Effective: 2021-07-12
Alternative parts:
Price: 4,10 € : 4,10 €
-+
09
P/N (SKU): 9AWA-060210-2E800
Part Name: REAR RH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: CORAL BLUE
Price: 233,70 € : 233,70 €
-+
09
P/N (SKU): 9AWA-060210-2H900
Part Name: REAR RH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: GHOST GRAY
Price: 231,50 € : 231,50 €
-+
09
P/N (SKU): 9AWA-060210-2Y600
Part Name: REAR RH SWING ARM
Effective: 2021-07-12
Alternative parts:
Specification: CRYSTAL ORANGE
Price: 233,10 € : 233,10 €
-+
09
P/N (SKU): 9AWA-060210-20000
Part Name: REAR SWING ARM, RH
Effective: 2021-07-12
Alternative parts:
Price: 204,40 € : 204,40 €
-+
10
P/N (SKU): 30228-061310
Part Name: RIVET NUT
Effective: 2021-07-12
Alternative parts:
Specification: M6
Price: 1,00 € : 1,00 €
-+
11
P/N (SKU): 30006-060016810
Part Name: BOLT M6x16
Effective: 2021-07-12
Alternative parts: 30006-060016870
Specification: M6x16
Price: 1,00 € : 1,00 €
-+
12
P/N (SKU): 9AWA-060107
Part Name: BRACKET, PARKING CABLE, REAR SWING ARM
Effective: 2021-07-12
Alternative parts:
Price: 6,50 € : 6,50 €
-+
13
P/N (SKU): 9010-060700-20000
Part Name: BALL PIN, LH
Effective: 2021-07-12
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
14
P/N (SKU): 30800-06005
Part Name: CIRCLIP FOR HOLE
Effective: 2021-07-12
Alternative parts:
Specification: 60
Price: 1,70 € : 1,70 €
-+
15
P/N (SKU): 30411-03080
Part Name: HUB BEARING
Effective: 2021-07-12
Alternative parts:
Price: 41,44 € : 41,44 €
-+
16
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Effective: 2021-07-12
Alternative parts:
Specification: M10x1.25
Price: 1,00 € : 1,00 €
-+
17
P/N (SKU): 9AWA-044044
Part Name: PANEL, RH REAR SUSPENSION
Effective: 2021-07-12
Alternative parts:
Price: 4,10 € : 4,10 €
-+
18
P/N (SKU): 9AWA-044043
Part Name: PANEL, LH REAR SUSPENSION
Effective: 2021-07-12
Alternative parts:
Price: 3,60 € : 3,60 €
-+
19
P/N (SKU): 9010-060800-20000
Part Name: BALL PIN, RH
Effective: 2021-07-12
Alternative parts:
Specification: CCVI
Price: 27,50 € : 27,50 €
-+
20
P/N (SKU): 9AWA-060410-10000
Part Name: REAR SWAY BAR ASSY
Effective: 2021-07-12
Alternative parts:
Price: 85,00 € : 85,00 €
-+
21
P/N (SKU): 7000-060003
Part Name: SUPPORTER, SWAY BAR
Effective: 2021-07-12
Alternative parts:
Price: 3,40 € : 3,40 €
-+
22
P/N (SKU): 9030-060002
Part Name: COVER, SWAY BAR
Effective: 2021-07-12
Alternative parts:
Price: 4,60 € : 4,60 €
-+
23
P/N (SKU): 3121401
Part Name: RESERVOIR
Effective: 2021-07-12
Alternative parts:
Price: 1,00 € : 1,00 €
-+
24
P/N (SKU): 30006-080016810
Part Name: BOLT M8x16
Effective: 2021-07-12
Alternative parts:
Specification: M8x16
Price: 1,00 € : 1,00 €
-+
