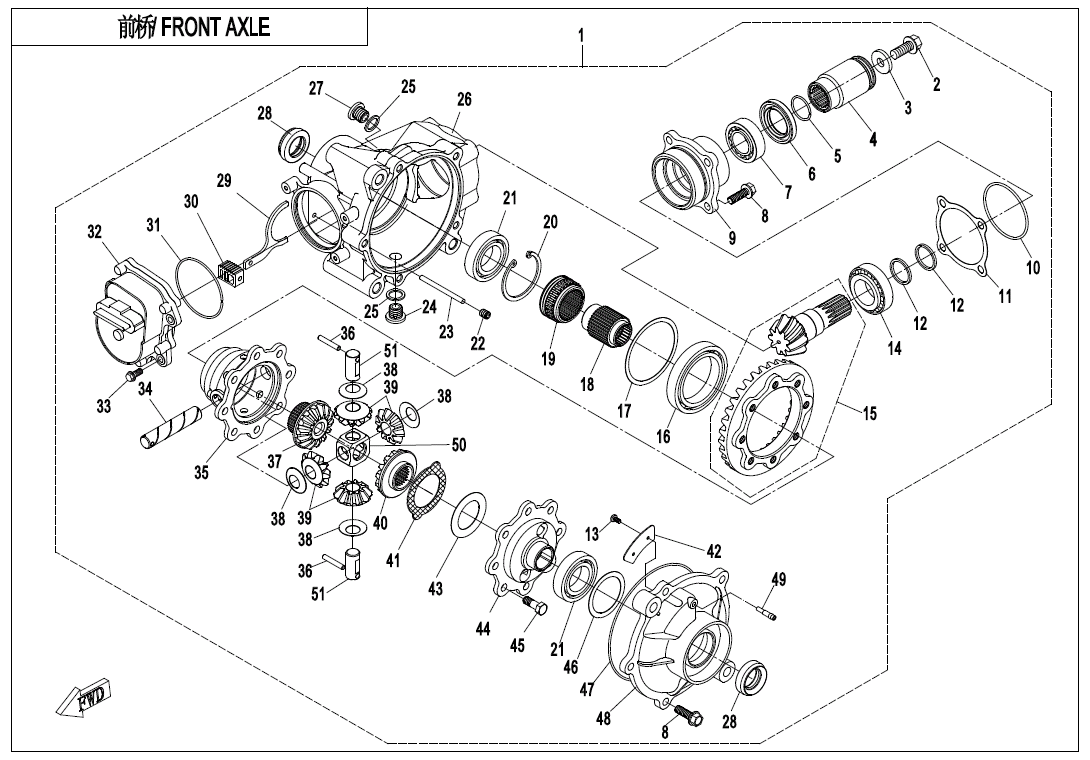

FRONT AXLE(SUMITOMO) - F31-B | 2022, ATV, CF1000AU-F |

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): Q830-310000-40002

Part Name: FRONT GEAR CASE ASSY

Effective: 2021-07-12

Alternative parts:

Price: 740,30 € : 740,30 €

P/N (SKU): 0GR0-062203

Part Name: BOLT M10x1.25x20

Effective: 2021-07-12

Alternative parts:

Specification: M10x1.25x20

Price: 1,55 € : 1,55 €

P/N (SKU): 0GR0-062204

Part Name: WASHER 10x27.5x4

Effective: 2021-07-12

Alternative parts:

Specification: 10x27.5x4

Price: 2,05 € : 2,05 €

P/N (SKU): 9CR6-300201-10000

Part Name: DRIVE SLEEVE, ENGINE

Effective: 2021-07-12

Alternative parts:

Price: 27,50 € : 27,50 €

P/N (SKU): 0800-062205

Part Name: O-SEAL RING 25x2

Effective: 2021-07-12

Alternative parts:

Specification: 25x2

Price: 1,25 € : 1,25 €

P/N (SKU): 0800-062204

Part Name: OIL SEAL 35x50x7

Effective: 2021-07-12

Alternative parts:

Specification: 35x50x7

Price: 5,10 € : 5,10 €

P/N (SKU): 30409-02500

Part Name: BEARING

Effective: 2021-07-12

Alternative parts:

Specification: 33005(25x47x17)

Price: 15,80 € : 15,80 €

P/N (SKU): 0110-060011-0010

Part Name: BOLT M8x28

Effective: 2021-07-12

Alternative parts: 0JYA-062104

Specification: M8x28

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311002-00001

Part Name: BEARING SEAT

Effective: 2021-07-12

Alternative parts:

Price: 19,80 € : 19,80 €

P/N (SKU): Q830-310006-10000

Part Name: O-RING 55x2.5

Effective: 2021-07-12

Alternative parts:

Specification: 55x2.5

Price: 2,05 € : 2,05 €

P/N (SKU): Q830-310023-00200

Part Name: ADJUSTING WASHER T=0.30

Effective: 2021-07-12

Alternative parts:

Specification: T=0.30

Price: 2,05 € : 2,05 €

P/N (SKU): Q830-310023-00100

Part Name: ADJUSTING WASHER T=0.20

Effective: 2021-07-12

Alternative parts:

Specification: T=0.20

Price: 2,05 € : 2,05 €

P/N (SKU): Q830-311003-01400

Part Name: ADJUSTING WASHER 32x25.4 T=3.00

Effective: 2021-07-12

Alternative parts:

Specification: T=3.00

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-01300

Part Name: ADJUSTING WASHER 32x25.4 T=2.90

Effective: 2021-07-12

Alternative parts:

Specification: T=2.90

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-01200

Part Name: ADJUSTING WASHER 32x25.4 T=2.80

Effective: 2021-07-12

Alternative parts:

Specification: T=2.80

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-01100

Part Name: ADJUSTING WASHER 32x25.4 T=2.70

Effective: 2021-07-12

Alternative parts:

Specification: T=2.70

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-01000

Part Name: ADJUSTING WASHER 32x25.4 T=2.60

Effective: 2021-07-12

Alternative parts:

Specification: T=2.60

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00900

Part Name: ADJUSTING WASHER 32x25.4 T=2.50

Effective: 2021-07-12

Alternative parts:

Specification: T=2.50

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00800

Part Name: ADJUSTING WASHER 32x25.4 T=2.48

Effective: 2021-07-12

Alternative parts:

Specification: T=2.48

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00700

Part Name: ADJUSTING WASHER 32x25.4 T=2.46

Effective: 2021-07-12

Alternative parts:

Specification: T=2.46

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00600

Part Name: ADJUSTING WASHER 32x25.4 T=2.44

Effective: 2021-07-12

Alternative parts:

Specification: T=2.44

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00500

Part Name: ADJUSTING WASHER 32x25.4 T=2.42

Effective: 2021-07-12

Alternative parts:

Specification: T=2.42

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00400

Part Name: ADJUSTING WASHER 32x25.4 T=2.40

Effective: 2021-07-12

Alternative parts:

Specification: T=2.40

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00300

Part Name: ADJUSTING WASHER 32x25.4 T=2.30

Effective: 2021-07-12

Alternative parts:

Specification: T=2.30

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00200

Part Name: ADJUSTING WASHER 32x25.4 T=2.20

Effective: 2021-07-12

Alternative parts:

Specification: T=2.20

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-311003-00100

Part Name: ADJUSTING WASHER 32x25.4 T=2.10

Effective: 2021-07-12

Alternative parts:

Specification: T=2.10

Price: 0,95 € : 0,95 €

P/N (SKU): 30105-040008410

Part Name: SCREW M4x8

Effective: 2021-07-12

Alternative parts:

Specification: M4x8

Price: 1,55 € : 1,55 €

P/N (SKU): 30409-03000

Part Name: BEARING

Effective: 2021-07-12

Alternative parts:

Specification: 32006(30x55x17)

Price: 14,00 € : 14,00 €

P/N (SKU): Q830-3100B0

Part Name: BEVEL GEAR ASSY, FRONT GEAR CASE

Effective: 2021-07-12

Alternative parts:

Price: 116,30 € : 116,30 €

P/N (SKU): 30400-05500

Part Name: BEARING

Effective: 2021-07-12

Alternative parts:

Specification: 61911(55x80x13)

Price: 22,70 € : 22,70 €

P/N (SKU): Q830-310015-00600

Part Name: ADJUSTING WASHER 79.5x68 T=1.00

Effective: 2021-07-12

Alternative parts:

Specification: T=1.00

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310015-00500

Part Name: ADJUSTING WASHER 79.5x68 T=0.50

Effective: 2021-07-12

Alternative parts:

Specification: T=0.50

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310015-00400

Part Name: ADJUSTING WASHER 79.5x68 T=0.40

Effective: 2021-07-12

Alternative parts:

Specification: T=0.40

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310015-00300

Part Name: ADJUSTING WASHER 79.5x68 T=0.30

Effective: 2021-07-12

Alternative parts:

Specification: T=0.30

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310015-00200

Part Name: ADJUSTING WASHER 79.5x68 T=0.20

Effective: 2021-07-12

Alternative parts:

Specification: T=0.20

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310015-00100

Part Name: ADJUSTING WASHER 79.5x68 T=0.10

Effective: 2021-07-12

Alternative parts:

Specification: T=0.10

Price: 1,25 € : 1,25 €

P/N (SKU): Q830-310014

Part Name: DRIVE CLUTCH COVER

Effective: 2021-07-12

Alternative parts:

Price: 18,30 € : 18,30 €

P/N (SKU): Q830-310013

Part Name: SPLINE BUSHING

Effective: 2021-07-12

Alternative parts:

Price: 13,20 € : 13,20 €

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE 55

Effective: 2021-07-12

Alternative parts:

Specification: 55

Price: 2,05 € : 2,05 €

P/N (SKU): 30400-03001

Part Name: BEARING 30x55x13

Effective: 2021-07-12

Alternative parts:

Specification: 6006

Price: 6,60 € : 6,60 €

P/N (SKU): 30130-080010820

Part Name: INNER HEX SCREW M8x10

Effective: 2021-07-12

Alternative parts: 30130-080010810

Specification: M8x10

Price: 0,55 € : 0,55 €

P/N (SKU): Q830-310003

Part Name: PIN SHAFT

Effective: 2021-07-12

Alternative parts:

Price: 3,05 € : 3,05 €

P/N (SKU): 0180-332100

Part Name: OIL DRAIN BOLT M14x1.25x12, MAGNETIC

Effective: 2021-07-12

Alternative parts:

Specification: M14x1.25x12

Price: 5,00 € : 5,00 €

P/N (SKU): 0180-011006

Part Name: GASKET 14

Effective: 2021-07-12

Alternative parts:

Specification: 14

Price: 1,05 € : 1,05 €

P/N (SKU): Q830-310007-20000

Part Name: FRONT GEAR CASE

Effective: 2021-07-12

Alternative parts:

Price: 68,40 € : 68,40 €

P/N (SKU): 0180-021008-0010

Part Name: BOLT M14x1.25x12

Effective: 2021-07-12

Alternative parts:

Specification: M14x1.25x12

Price: 4,05 € : 4,05 €

P/N (SKU): 0180-311001

Part Name: OIL SEAL 24x38x8

Effective: 2021-07-12

Alternative parts:

Specification: 24x38x8

Price: 4,00 € : 4,00 €

P/N (SKU): Q830-310005

Part Name: SHIFT FORK

Effective: 2021-07-12

Alternative parts:

Price: 18,30 € : 18,30 €

P/N (SKU): Q830-310004

Part Name: RACK

Effective: 2021-07-12

Alternative parts:

Price: 7,35 € : 7,35 €

P/N (SKU): Q830-310012-10000

Part Name: O-RING 67.5x2

Effective: 2021-07-12

Alternative parts:

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-314000-10000

Part Name: MOTOR ASSY, FRONT GEAR CASE

Effective: 2021-07-12

Alternative parts:

Specification: SUMITOMO PLUG

Price: 130,30 € : 130,30 €

P/N (SKU): 0010-023008-0010

Part Name: BOLT M6x18

Effective: 2021-07-12

Alternative parts: 0010-023008-00001

Specification: M6x18

Price: 0,55 € : 0,55 €

P/N (SKU): 0180-313002-10000

Part Name: CENTER GEAR SHAFT, DIFFERENTIAL

Effective: 2021-07-12

Alternative parts:

Price: 4,40 € : 4,40 €

P/N (SKU): Q830-313003-10000

Part Name: FRONT DIFFERENTIAL CASE

Effective: 2021-07-12

Alternative parts:

Price: 49,10 € : 49,10 €

P/N (SKU): 30906-0503000

Part Name: PIN

Effective: 2021-07-12

Alternative parts:

Specification: 5x30

Price: 1,05 € : 1,05 €

P/N (SKU): Q830-313004

Part Name: GEAR, CV SHAFT

Effective: 2021-07-12

Alternative parts:

Price: 45,80 € : 45,80 €

P/N (SKU): 0181-313011

Part Name: WEARING RING

Effective: 2021-07-12

Alternative parts:

Price: 1,65 € : 1,65 €

P/N (SKU): 0180-313003-00004

Part Name: CENTRAL GEAR, DIFFERENTIAL

Effective: 2021-07-12

Alternative parts:

Specification: SURFACE PEENING TREATMENT, THE INNER HOLE TOLERANCE INCREASING

Price: 11,70 € : 11,70 €

P/N (SKU): 0180-313006-00001

Part Name: DRIVEN GEAR, DIFFERENTIAL

Effective: 2021-07-12

Alternative parts:

Price: 22,70 € : 22,70 €

P/N (SKU): 0180-313009-0010

Part Name: GASKET

Effective: 2021-07-12

Alternative parts:

Price: 4,00 € : 4,00 €

P/N (SKU): Q830-310022

Part Name: OIL GUARD

Effective: 2021-07-12

Alternative parts:

Price: 1,55 € : 1,55 €

P/N (SKU): 0180-313010-0005

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUST GASKET57x40x1.0

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-313010-0004

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUST GASKET 57x40x0.5

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-313010-0003

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUST GASKET57x40x0.4

Price: 0,95 € : 0,95 €

P/N (SKU): 0180-313010-0002

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUST GASKET 57x40x0.3

Price: 2,05 € : 2,05 €

P/N (SKU): 0180-313010-0001

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUST GASKET57x40x0.2

Price: 1,55 € : 1,55 €

P/N (SKU): 0180-313010

Part Name: ADJUST GASKET

Effective: 2021-07-12

Alternative parts:

Specification: ADJUSTING WASHER 57x40x0.1

Price: 1,55 € : 1,55 €

P/N (SKU): Q830-313001-00001

Part Name: MOUNTING PLATE

Effective: 2021-07-12

Alternative parts: Q830-313001-10000 Q800-313005-00100 Q800-313005-00200

Price: 33,70 € : 33,70 €

P/N (SKU): 9010-290001

Part Name: BOLT M8x1x22

Effective: 2021-07-12

Alternative parts:

Specification: M8x1x22

Price: 1,65 € : 1,65 €

P/N (SKU): Q830-310009-00600

Part Name: ADJUSTING WASHER 54.5x43 T=1.00

Effective: 2021-07-12

Alternative parts:

Specification: T=1.00

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310009-00500

Part Name: ADJUSTING WASHER 54.5x43 T=0.50

Effective: 2021-07-12

Alternative parts:

Specification: T=0.50

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310009-00400

Part Name: ADJUSTING WASHER 54.5x43 T=0.40

Effective: 2021-07-12

Alternative parts:

Specification: T=0.40

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310009-00300

Part Name: ADJUSTING WASHER 54.5x43 T=0.30

Effective: 2021-07-12

Alternative parts:

Specification: T=0.30

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310009-00200

Part Name: ADJUSTING WASHER 54.5x43 T=0.20

Effective: 2021-07-12

Alternative parts:

Specification: T=0.20

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310009-00100

Part Name: ADJUSTING WASHER 54.5x43 T=0.10

Effective: 2021-07-12

Alternative parts:

Specification: T=0.10

Price: 0,95 € : 0,95 €

P/N (SKU): Q830-310011

Part Name: O-SEAL RING 130x2

Effective: 2021-07-12

Alternative parts:

Price: 3,05 € : 3,05 €

P/N (SKU): Q830-310008-10000

Part Name: FRONT GEAR CASE COVER

Effective: 2021-07-12

Alternative parts:

Price: 29,00 € : 29,00 €

P/N (SKU): 0180-311004-0020

Part Name: JOINT, BREATHER HOSE

Effective: 2021-07-12

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): Q820-333008

Part Name: CROSS BUSHING

Effective: 2021-07-12

Alternative parts:

Price: 10,20 € : 10,20 €

P/N (SKU): Q800-313001

Part Name: PLANET GEAR SHAFT, SHORT

Effective: 2021-07-12

Alternative parts:

Price: 4,05 € : 4,05 €

You are here

FRONT AXLE(SUMITOMO) - F31-B

No.

P/N (SKU)

Part Name

Price

Your price
