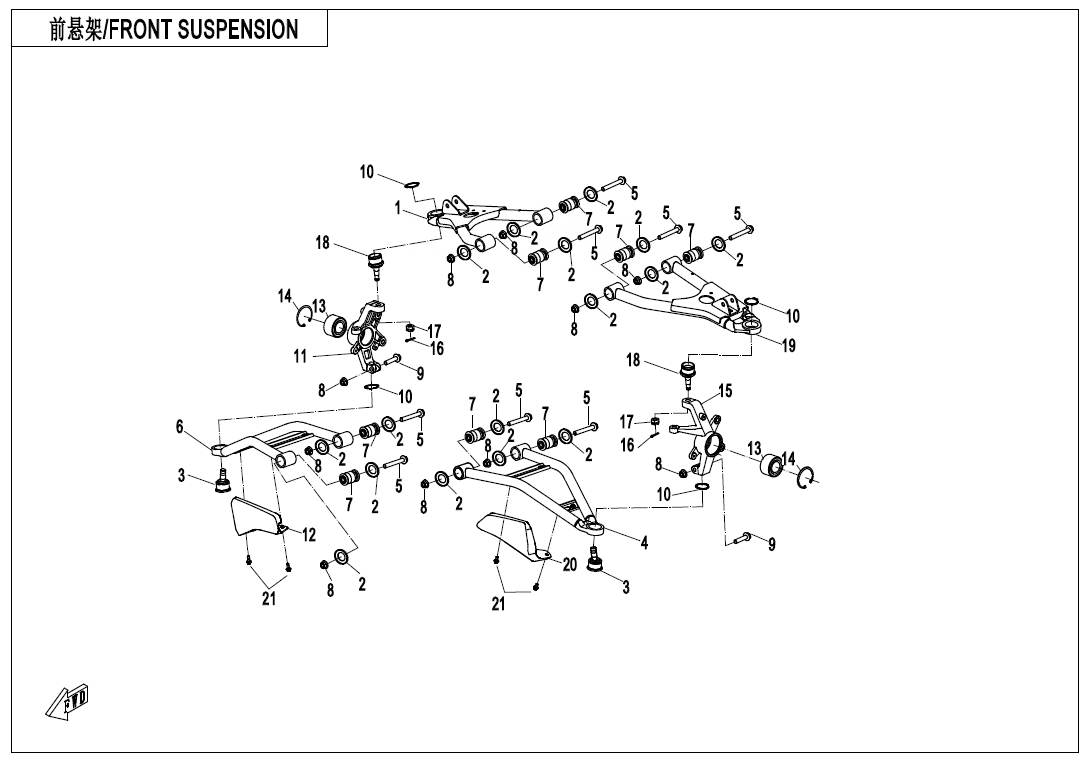

FRONT SUSPENSION - F05-1 | 2022, ATV, CF1000ATR | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 9AWV-050210-2E00

Part Name: FRONT UPPER SWING ARM, RH

Effective: 2021-07-08

Specification: ELECTROPHORESIS BLACK

Price: 79,00 € : 79,00 €

02

P/N (SKU): 9DSV-050900-6K00

Part Name: CAP, CUSHION SLEEVE

Effective: 2021-07-08

Price: 1,50 € : 1,50 €

03

P/N (SKU): 9010-050800-20000

Part Name: LOWER BALL PIN ASSY.

Effective: 2021-07-08

Price: 34,00 € : 34,00 €

04

P/N (SKU): 9AWV-050310-2E00

Part Name: FRONT LOWER SWING ARM, LH

Effective: 2021-07-08

Specification: ELECTROPHORESIS BLACK

Price: 67,00 € : 67,00 €

05

P/N (SKU): 30006-102070810

Part Name: BOLT M10x1.25x70

Effective: 2021-07-08

Specification: M10x1.25x70

Price: 1,50 € : 1,50 €

06

P/N (SKU): 9AWV-050410-2E00

Part Name: FRONT LOWER SWING ARM, RH

Effective: 2021-07-08

Specification: ELECTROPHORESIS BLACK

Price: 67,00 € : 67,00 €

07

P/N (SKU): 9010-050500

Part Name: CUSHION SLEEVE

Effective: 2021-07-08

Price: 4,00 € : 4,00 €

08

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Effective: 2021-07-08

Specification: M10x1.25

Price: 1,50 € : 1,50 €

09

P/N (SKU): 30006-102040810

Part Name: BOLT M10x1.25x40

Effective: 2021-07-08

Specification: M10x1.25x40

Price: 1,50 € : 1,50 €

10

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT 34

Effective: 2021-07-08

Specification: 34

Price: 1,50 € : 1,50 €

11

P/N (SKU): 9AWA-050801

Part Name: STEERING KNUCKLE,RH

Effective: 2021-07-08

Price: 78,00 € : 78,00 €

12

P/N (SKU): 9AWA-044042

Part Name: PANEL, RH FRONT SUSPENSION

Effective: 2021-07-08

Price: 3,50 € : 3,50 €

13

P/N (SKU): 9GQ0-050710

Part Name: BEARING, HUB

Effective: 2021-07-08

Price: 32,00 € : 32,00 €

14

P/N (SKU): 30800-05505

Part Name: CIRCLIP FOR HOLE 55

Effective: 2021-07-08

Specification: 55

Price: 2,50 € : 2,50 €

15

P/N (SKU): 9AWA-050701

Part Name: STEERING KNUCKLE,LH

Effective: 2021-07-08

Price: 71,00 € : 71,00 €

16

P/N (SKU): 30903-0201610

Part Name: COTTER PIN

Effective: 2021-07-08

Specification: 2.0x16

Price: 1,50 € : 1,50 €

17

P/N (SKU): 9010-100002

Part Name: 1-TYPE NUT

Effective: 2021-07-08

Specification: M10x1.25

Price: 2,00 € : 2,00 €

18

P/N (SKU): 9010-050700-1000

Part Name: TOP BALL PIN

Effective: 2021-07-08

Alternative parts: 9010-050700

Specification: CCVI

Price: 34,00 € : 34,00 €

19

P/N (SKU): 9AWV-050110-2E00

Part Name: FRONT UPPER SWING ARM, LH

Effective: 2021-07-08

Specification: ELECTROPHORESIS BLACK

Price: 81,00 € : 81,00 €

20

P/N (SKU): 9AWA-044041

Part Name: PANEL, LH FRONT SUSPENSION

Effective: 2021-07-08

Price: 5,00 € : 5,00 €

21

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Effective: 2021-07-08

Alternative parts: 30006-060016870

Specification: M6x16

Price: 1,50 € : 1,50 €
