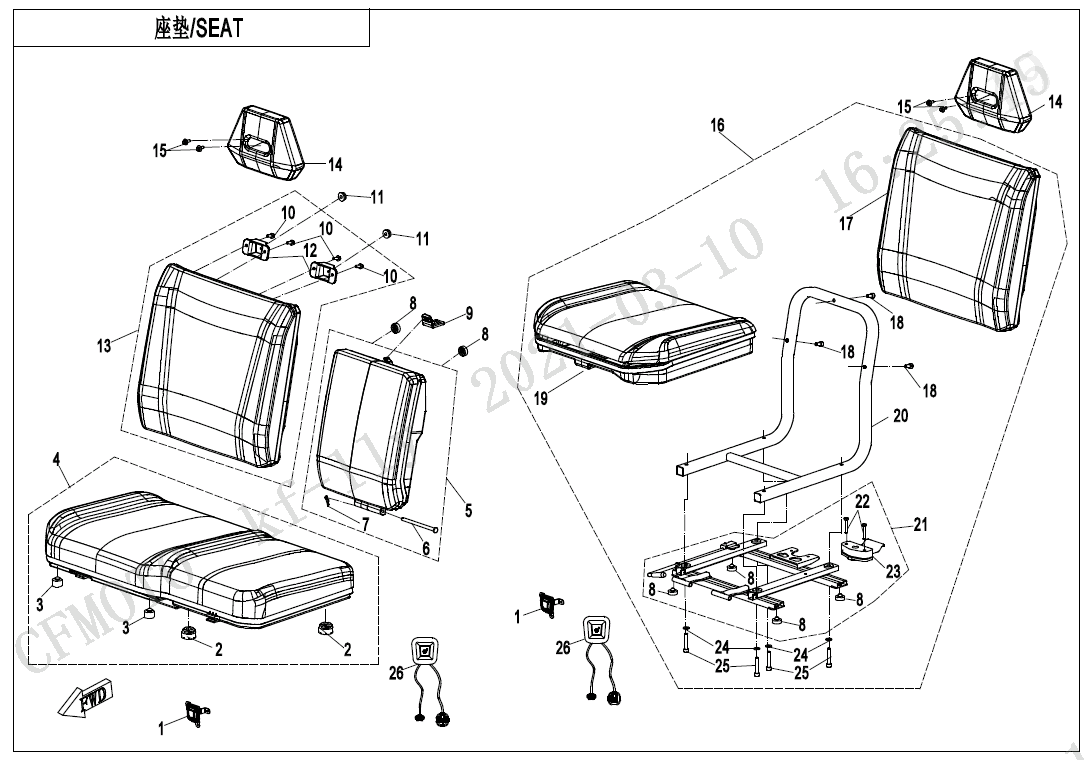

SEAT(HEATING EQUIPMENT) - F13-B-V2

SEAT(HEATING EQUIPMENT) - F13-B-V2

No.

01
P/N (SKU): 5HY0-130001
Part Name: BRACKET, HEATING SWITCH
Effective: 2021-03-10
Alternative parts:
Price: 6,00 € : 6,00 €
-+
02
P/N (SKU): 7020-130001
Part Name: SEAT LOCATING RUBBER SLEEVE
Effective: 2021-03-10
Alternative parts:
Price: 2,50 € : 2,50 €
-+
03
P/N (SKU): 5HY0-132004
Part Name: RUBBER DAMPER
Effective: 2021-03-10
Alternative parts:
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 5HY0-132000-10000
Part Name: AUXILIARY HEATING SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 144,89 € : 144,89 €
-+
04
P/N (SKU): 5HY0-132000-30000
Part Name: PASSENGER HEATING SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 263,00 € : 263,00 €
-+
05
P/N (SKU): 5HY0-134000-00001
Part Name: BACKREST
Effective: 2021-03-10
Alternative parts: 5HY0-134000-10000
Price: 77,00 € : 77,00 €
05
P/N (SKU): 5HY0-134000-10000
Part Name: MIDDLE CUSHION
Effective: 2021-03-10
Alternative parts: 5HYV-134000-1C00
Price: 62,00 € : 62,00 €
06
P/N (SKU): 30904-080A220
Part Name: PIN SHAFT
Effective: 2021-03-10
Alternative parts:
Price: 11,00 € : 11,00 €
-+
07
P/N (SKU): 30910-0183220
Part Name: LOCK PIN
Effective: 2021-03-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 6KM0-130205
Part Name: CUSHION RUBBER WAHSER
Effective: 2021-03-10
Alternative parts:
Price: 3,00 € : 3,00 €
-+
09
P/N (SKU): 7020-140002
Part Name: TIE BAND, RACK COVER
Effective: 2021-03-10
Alternative parts:
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-03-10
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2021-03-10
Alternative parts:
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
-+
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2021-03-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2021-03-10
Alternative parts:
Price: 6,00 € : 6,00 €
-+
13
P/N (SKU): 5HY#-133000-1000
Part Name: PASSENGER BACKREST ASSY
Effective: 2021-03-10
Alternative parts:
Price: 134,00 € : 134,00 €
-+
14
P/N (SKU): 5HY0-135000
Part Name: HEAD REST
Effective: 2021-03-10
Alternative parts:
Price: 62,00 € : 62,00 €
-+
15
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2021-03-10
Alternative parts:
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5HY0-131000-20000
Part Name: HEATED DRIVER SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 243,99 € : 243,99 €
-+
16
P/N (SKU): 5HY0-131000-40000
Part Name: HEATED DRIVER SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 492,00 € : 492,00 €
-+
17
P/N (SKU): 5HY0-131300
Part Name: MAIN BACKREST
Effective: 2021-03-10
Alternative parts:
Price: 154,00 € : 154,00 €
-+
18
P/N (SKU): 30102-080016840
Part Name: INNER HEX SCREW
Effective: 2021-03-10
Alternative parts:
Specification: M8x16@ARMY GREEN
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 5HY0-131200-10000
Part Name: DRIVER SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 165,00 € : 165,00 €
-+
19
P/N (SKU): 5HY0-131200-20000
Part Name: DRIVER SEAT ASSY
Effective: 2021-03-10
Alternative parts:
Price: 220,00 € : 220,00 €
-+
20
P/N (SKU): 5HY0-131010
Part Name: SUPPORT
Effective: 2021-03-10
Alternative parts:
Price: 51,00 € : 51,00 €
-+
21
P/N (SKU): 5HY0-131100-10000
Part Name: BOTTOM BRACKET, MAIN SEAT
Effective: 2021-03-10
Alternative parts:
Price: 132,00 € : 132,00 €
-+
22
P/N (SKU): 30003-060035840
Part Name: BOLT M6x35
Effective: 2021-03-10
Alternative parts: 30003-060035810
Specification: M6x35
Price: 1,50 € : 1,50 €
22
P/N (SKU): 30006-102060110
Part Name: BOLT
Effective: 2021-03-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
23
P/N (SKU): 5HY0-131140
Part Name: SEAT LOCK
Effective: 2021-03-10
Alternative parts:
Price: 47,00 € : 47,00 €
-+
24
P/N (SKU): 30306-080870
Part Name: PLAIN WASHER
Effective: 2021-03-10
Alternative parts: 30306-080112
Price: 1,50 € : 1,50 €
25
P/N (SKU): 30102-080045810
Part Name: SCREW
Effective: 2021-03-10
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 5HY0-136000
Part Name: SEAT HEATING SWITCH
Effective: 2021-03-10
Alternative parts:
Price: 49,00 € : 49,00 €
-+
