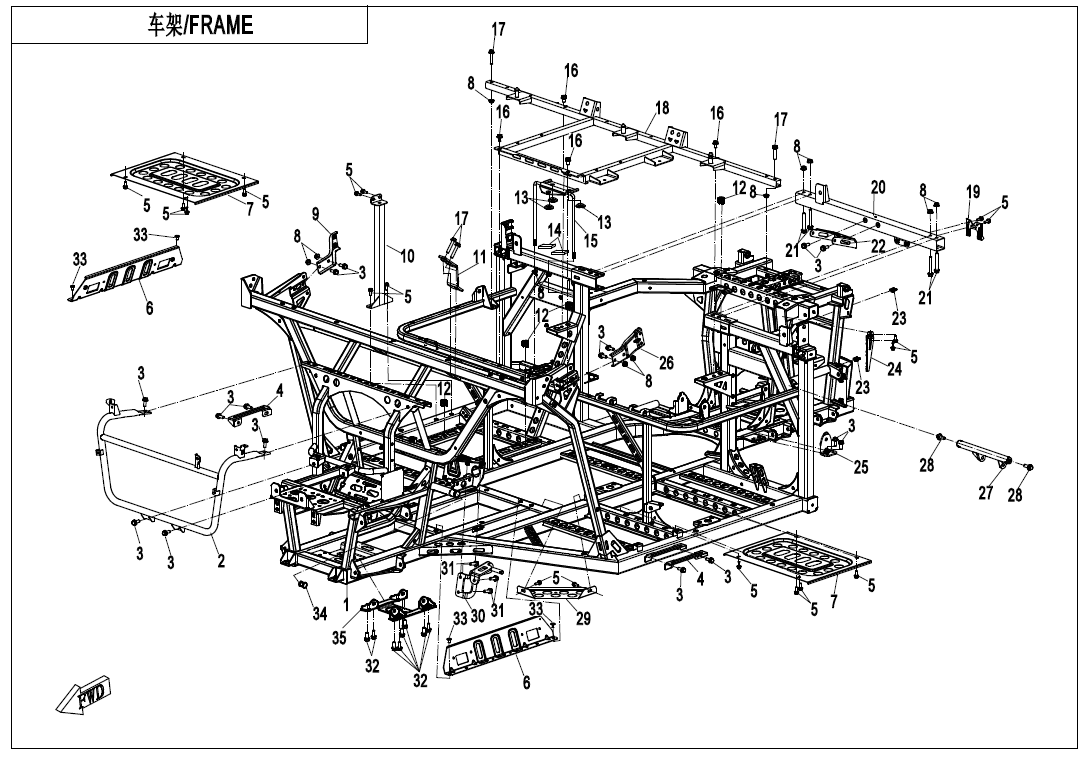

FRAME - F03-V3

FRAME - F03-V3

No.

01
P/N (SKU): 5HY0-031000-80000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 5HY0-031000-90000
Price: 2 777,00 € : 2 777,00 €
01
P/N (SKU): 5HY0-031000-90000
Part Name: FRAME ASSY
Effective: 2021-02-26
Alternative parts: 5HY0-031000-A0000/5HY0-031000-G0000
Price: 2 464,00 € : 2 464,00 €
02
P/N (SKU): 5HY0-030100-10000
Part Name: PROTECTION PIPE, RESERVOIR
Effective: 2021-02-26
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 37,00 € : 37,00 €
03
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5HY0-030003
Part Name: FOOTREST BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 8,00 € : 8,00 €
05
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 5HY0-030070
Part Name: ACCESSORIES MOUNT BRACKET
Effective: 2021-02-26
Alternative parts: 5HY0-030070-10000
Price: 19,00 € : 19,00 €
06
P/N (SKU): 5HY0-030070-10000
Part Name: ACCESSORY BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 19,00 € : 19,00 €
07
P/N (SKU): 5HY0-030090
Part Name: PANEL, FUEL TANK
Effective: 2021-02-26
Alternative parts: null
Price: 49,00 € : 49,00 €
08
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2021-02-26
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 5HY0-030430
Part Name: RH LOCK HOOK MOUNTING SEAT
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
10
P/N (SKU): 5HY0-030440
Part Name: SUPPORTER, SEAT
Effective: 2021-02-26
Alternative parts: 5HY0-030440-10000
Specification: ELECTROPHORESIS BLACK
Price: 12,00 € : 12,00 €
11
P/N (SKU): 5HY0-030450
Part Name: GEARSHIFT BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
12
P/N (SKU): 5020-031001
Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 9010-030005
Part Name: BATTERY RUBBER WASHER
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9010-120008
Part Name: SPONGE PAD, FUEL TANK
Effective: 2021-02-26
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 7000-031820
Part Name: BATTERY PRESS PLATE ASSY
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
16
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 30006-080040810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×40
Price: 2,00 € : 2,00 €
18
P/N (SKU): 5HY0-030200-10000
Part Name: BRACKET, SEAT
Effective: 2021-02-26
Alternative parts: 5HY0-030200-20000
Price: 75,00 € : 75,00 €
19
P/N (SKU): 5HY0-030060
Part Name: HIGH-VOLTAGE PACK BRACKET
Effective: 2021-02-26
Alternative parts: null
Price: 6,50 € : 6,50 €
-+
20
P/N (SKU): 5HY0-030500
Part Name: REINFORCEMENT PIPE
Effective: 2021-02-26
Alternative parts: 5HY0-030500-10000
Price: 36,00 € : 36,00 €
20
P/N (SKU): 5HY0-030500-10000
Part Name: REINFORCEMENT PIPE
Effective: 2021-02-26
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 36,00 € : 36,00 €
21
P/N (SKU): 30006-080060810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x60
Price: 2,50 € : 2,50 €
-+
22
P/N (SKU): 5HY0-030053
Part Name: MOUNT PLATE
Effective: 2021-02-26
Alternative parts: null
Price: 8,00 € : 8,00 €
23
P/N (SKU): 8030-040800
Part Name: NUT CLIP M6
Effective: 2021-02-26
Alternative parts: 8030-040800-00001
Specification: M6
Price: 1,50 € : 1,50 €
24
P/N (SKU): 5HY0-030410
Part Name: MOUNT SEAT, REGULATOR
Effective: 2021-02-26
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
25
P/N (SKU): 5HY0-030001
Part Name: REAR JOINT PLATE,ENGINE
Effective: 2021-02-26
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
26
P/N (SKU): 5HY0-030420
Part Name: MOUNT SEAT, lh LOCK HOOK
Effective: 2021-02-26
Alternative parts: null
Price: 12,00 € : 12,00 €
-+
27
P/N (SKU): 5HY0-030040
Part Name: MOUNT FRAME, REAR GEAR CASE
Effective: 2021-02-26
Alternative parts: null
Specification: ELECTROPHORESIS BLACK
Price: 12,00 € : 12,00 €
-+
28
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2021-02-26
Alternative parts: null
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 5HY0-030004
Part Name: CABLE PANEL
Effective: 2021-02-26
Alternative parts: null
Price: 9,00 € : 9,00 €
30
P/N (SKU): 5HY0-030300
Part Name: FIXED BRACKET, BRAKE PADEL
Effective: 2021-02-26
Alternative parts: null
Price: 19,00 € : 19,00 €
31
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
33
P/N (SKU): A010-120003
Part Name: INNER HEX BOLT M6x16
Effective: 2021-02-26
Alternative parts: 6NQ#-000206-6001
Specification: M6x16
Price: 2,00 € : 2,00 €
34
P/N (SKU): 9CR6-230001
Part Name: REAR BUMPER PLUG
Effective: 2021-02-26
Alternative parts: null
Price: 3,50 € : 3,50 €
35
P/N (SKU): 5HY0-030600
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2021-02-26
Alternative parts: null
Price: 26,00 € : 26,00 €
