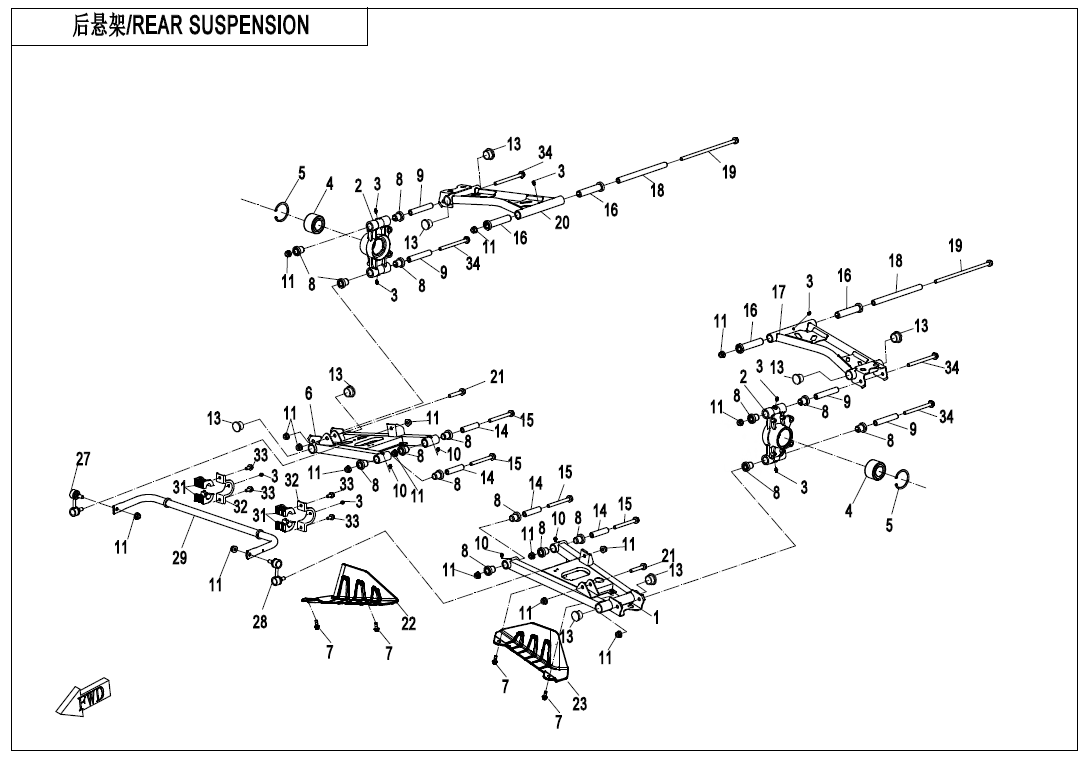

REAR SUSPENSION - F06-1-V2 | 2021, UTV, CF1000UTR-3 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY0-060210

Part Name: REAR LOWER SWING ARM,LH

Alternative parts:

Price: 77,16 € : 77,16 €

02

P/N (SKU): 5HY0-060703

Part Name: REAR BEARING CARRIER

Alternative parts:

Price: 73,20 € : 73,20 €

03

P/N (SKU): 3120100

Part Name: RESERVOIR

Alternative parts:

Price: 1,00 € : 1,00 €

04

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Alternative parts:

Price: 41,44 € : 41,44 €

05

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Alternative parts:

Specification: 60

Price: 1,70 € : 1,70 €

06

P/N (SKU): 5HY0-060410

Part Name: REAR LOWER SWING ARM,RH

Alternative parts:

Price: 77,52 € : 77,52 €

07

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 1,00 € : 1,00 €

08

P/N (SKU): 9060-050003

Part Name: SHORT BUSHING, SWING ARM

Alternative parts:

Price: 5,10 € : 5,10 €

09

P/N (SKU): 5HY0-060701

Part Name: MIDDLE SPACER, REAR BEARING CARRIER

Alternative parts: 5HY0-060701-00001

Price: 3,30 € : 3,30 €

10

P/N (SKU): 3121400

Part Name: GREASE NOZZLE

Alternative parts:

Specification: 90 DEGREE

Price: 1,80 € : 1,80 €

11

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Alternative parts:

Specification: M10x1.25

Price: 1,00 € : 1,00 €

12

P/N (SKU): 7000-060003

Part Name: SUPPORTER, SWAY BAR

Alternative parts:

Price: 3,40 € : 3,40 €

13

P/N (SKU): 9060-060002

Part Name: PLUG, REAR SUSPENSION

Alternative parts:

Price: 1,70 € : 1,70 €

14

P/N (SKU): 9060-060201-00001

Part Name: SPACER, REAR LOWER SWING ARM

Alternative parts: 9060-060201-00002

Price: 2,40 € : 2,40 €

15

P/N (SKU): 30001-102095110

Part Name: BOLT M10x1.25x95

Alternative parts:

Specification: M10x1.25x95

Price: 2,30 € : 2,30 €

16

P/N (SKU): 9060-050002

Part Name: LONG BUSHING, SWING ARM

Alternative parts:

Price: 9,70 € : 9,70 €

17

P/N (SKU): 5HY0-060110-00001

Part Name: REAR UPPER SWING ARM,LH

Alternative parts:

Price: 82,68 € : 82,68 €

18

P/N (SKU): 9060-060101-00001

Part Name: SPACER, REAR UPPER SWING ARM

Alternative parts: 9060-060101-00002

Price: 4,50 € : 4,50 €

19

P/N (SKU): 4060-060101

Part Name: MOUNTING SHAFT, REAR ARM

Alternative parts:

Price: 4,70 € : 4,70 €

20

P/N (SKU): 5HY0-060310

Part Name: REAR UPPER SWING ARM,RH

Alternative parts:

Price: 93,75 € : 93,75 €

21

P/N (SKU): 30006-102060110

Part Name: BOLT

Alternative parts:

Price: 1,70 € : 1,70 €

22

P/N (SKU): 5HY0-060401

Part Name: GUARD, REAR RH SWINGARM

Alternative parts:

Price: 5,50 € : 5,50 €

23

P/N (SKU): 5HY0-060201

Part Name: GUARD, REAR LH SWINGARM

Alternative parts:

Price: 5,50 € : 5,50 €

24

P/N (SKU): 9030-060002

Part Name: COVER, SWAY BAR

Alternative parts:

Price: 4,60 € : 4,60 €

25

P/N (SKU): 30006-080016810

Part Name: BOLT M8x16

Alternative parts:

Specification: M8x16

Price: 1,00 € : 1,00 €

26

P/N (SKU): 30001-102120110

Part Name: BOLT M10x1.25x120

Alternative parts: 30006-102120810

Specification: M10x1.25x120

Price: 2,90 € : 2,90 €

27

P/N (SKU): 9010-060800-20000

Part Name: BALL PIN, RH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

27

P/N (SKU): 9010-060800-1000

Part Name: BALL PIN, RH

Alternative parts: 9010-060800-20000

Specification: SOMIC

Price: 27,50 € : 27,50 €

28

P/N (SKU): 9010-060700-1000

Part Name: BALL PIN, LH

Alternative parts: 9010-060700-20000

Specification: SOMIC

Price: 75,06 € : 75,06 €

28

P/N (SKU): 9010-060700-20000

Part Name: BALL PIN, LH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

29

P/N (SKU): 5HY0-060610

Part Name: REAR SWAY BAR ASSY

Alternative parts:

Price: 63,40 € : 63,40 €
