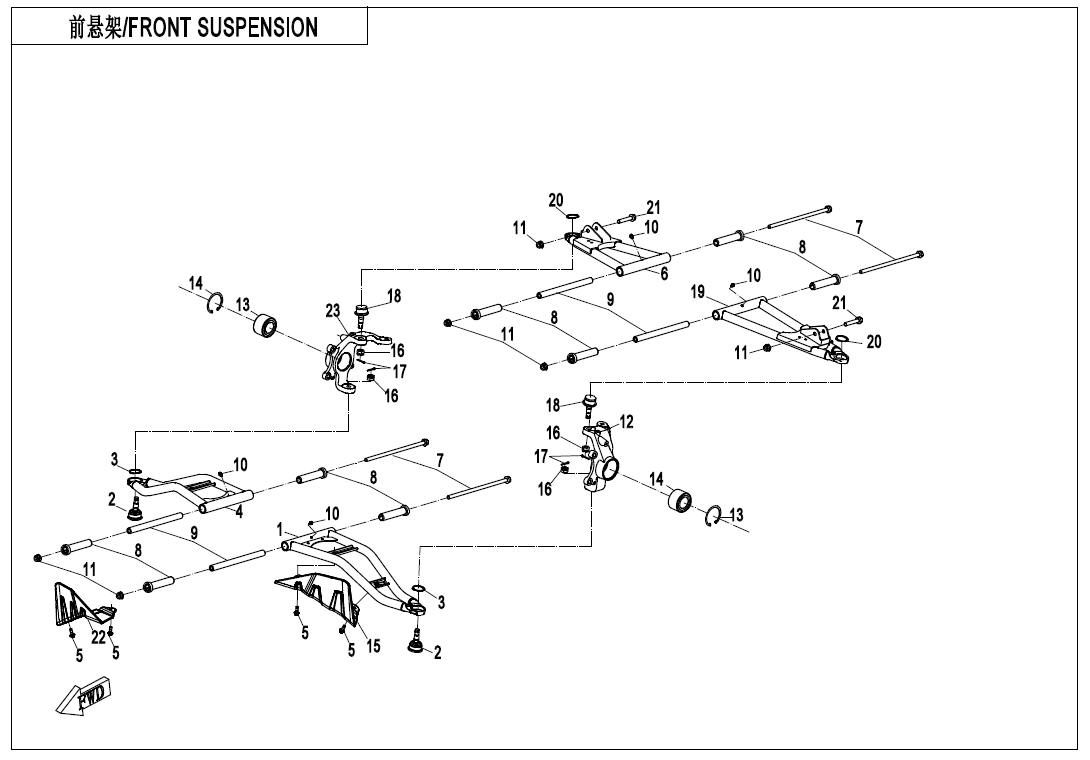

FRONT SUSPENSION - F05-1-V2 | 2021, UTV, CF1000UTR-3 |

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY0-050210

Part Name: FRONT LOWER SWING ARM,LH

Price: 76,00 € : 76,00 €

02

P/N (SKU): 9060-050900

Part Name: BALL PIN ASSY

Specification: SOMIC

Price: 34,00 € : 34,00 €

02

P/N (SKU): 9060-050900-10000

Part Name: BALL PIN ASSY

Specification: CCVI

Price: 23,00 € : 23,00 €

03

P/N (SKU): 30801-03405

Part Name: CIRCLIPS FOR SHAFT 34

Specification: 34

Price: 1,50 € : 1,50 €

04

P/N (SKU): 5HY0-050410

Part Name: FRONT LOWER SWING ARM,RH

Price: 77,00 € : 77,00 €

05

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 1,50 € : 1,50 €

06

P/N (SKU): 5HY0-050310

Part Name: FRONT UPPER SWING ARM,RH

Price: 73,00 € : 73,00 €

07

P/N (SKU): 4060-060101

Part Name: MOUNTING SHAFT, REAR ARM

Price: 5,00 € : 5,00 €

08

P/N (SKU): 9060-050002

Part Name: LONG BUSHING, SWING ARM

Price: 10,00 € : 10,00 €

09

P/N (SKU): 9060-060101-00001

Part Name: SPACER, REAR UPPER SWING ARM

Alternative parts: 9060-060101-00002

Price: 5,00 € : 5,00 €

10

P/N (SKU): 3120100

Part Name: RESERVOIR

Price: 1,50 € : 1,50 €

11

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Specification: M10x1.25

Price: 1,50 € : 1,50 €

12

P/N (SKU): 5HY0-050701-10000

Part Name: LH STEERING KNUCKLE

Price: 61,00 € : 61,00 €

13

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Specification: 60

Price: 2,00 € : 2,00 €

14

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Price: 43,00 € : 43,00 €

15

P/N (SKU): 5HY#-050201-1000

Part Name: GUARD, FRONT LH SWING ARM

Price: 6,00 € : 6,00 €

16

P/N (SKU): 30219-122810

Part Name: NUT M12x1.25

Specification: M12x1.25

Price: 1,50 € : 1,50 €

17

P/N (SKU): 30903-0322210

Part Name: COTTER PIN

Specification: 3.2x22

Price: 1,50 € : 1,50 €

18

P/N (SKU): 9030-050600

Part Name: MAIN PIN ASSY

Alternative parts: 9030-050600-10000

Specification: SOMIC

Price: 38,00 € : 38,00 €

18

P/N (SKU): 9030-050600-10000

Part Name: MAIN PIN ASSY

Specification: CCVI

Price: 22,00 € : 22,00 €

19

P/N (SKU): 5HY0-050110

Part Name: FRONT UPPER SWING ARM,LH

Price: 71,00 € : 71,00 €

20

P/N (SKU): 30801-03205

Part Name: CIRCLIPS FOR SHAFT 32

Specification: 32 A-TYPE

Price: 1,50 € : 1,50 €

21

P/N (SKU): 30006-102055110

Part Name: BOLT

Price: 1,50 € : 1,50 €

22

P/N (SKU): 5HY#-050401-1000

Part Name: FRONT RH SWING ARM GUARD

Price: 5,00 € : 5,00 €

23

P/N (SKU): 5HY0-050801-10000

Part Name: RH STEERING KNUCKLE

Price: 61,00 € : 61,00 €
