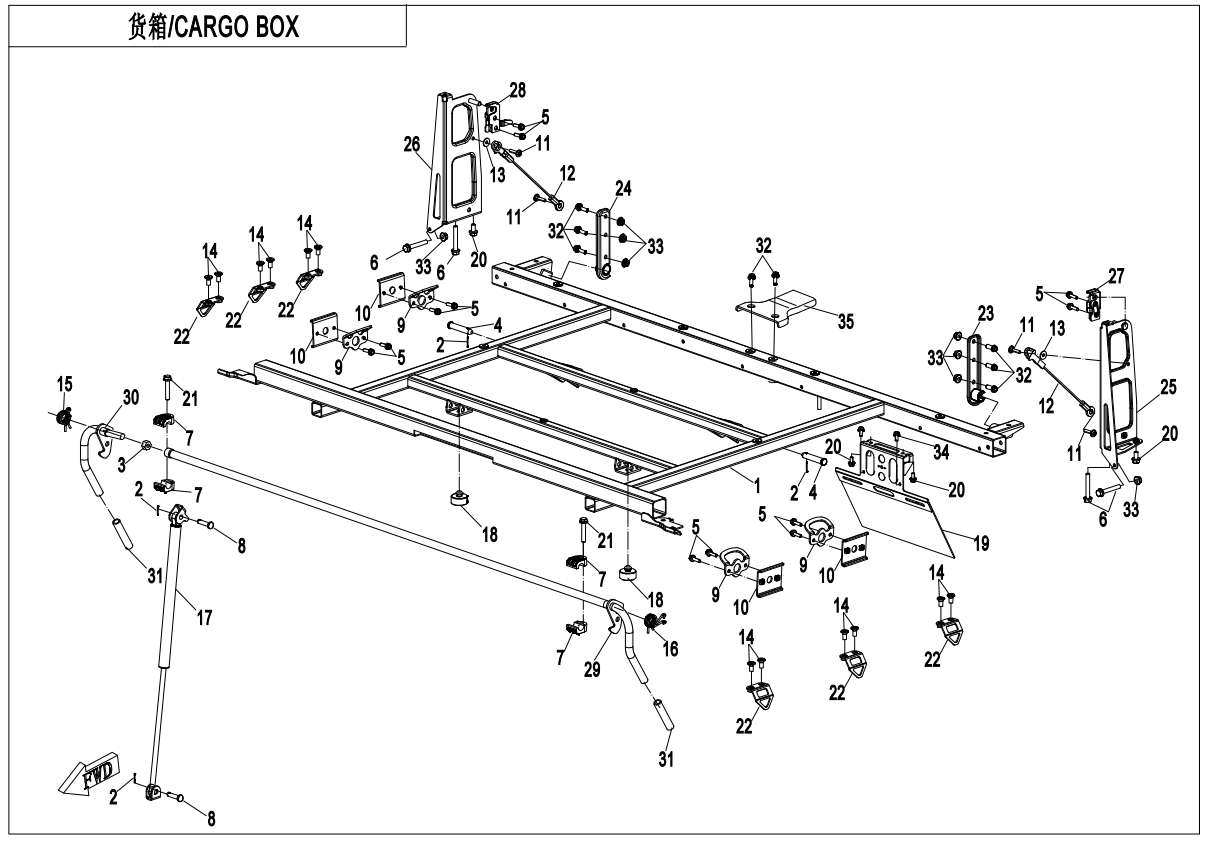

CARGO BOX - F22-2-V4 | 2021, UTV, CF1000UTR-3 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 5HY#-221000-1000

Part Name: BASE PLATE ASSY.

Price: 146,00 € : 146,00 €

02

P/N (SKU): 5HY#-220008-1000

Part Name: PIN SHAFT

Price: 1,50 € : 1,50 €

03

P/N (SKU): 30211-123810

Part Name: NUT M12x1.5

Specification: M12x1.5

Price: 3,00 € : 3,00 €

04

P/N (SKU): 9030-220011-00001

Part Name: PIN SAHFT, ROTATION

Specification: COLOR ZINC

Price: 2,50 € : 2,50 €

05

P/N (SKU): 30006-060020870

Part Name: BOLT M6x20

Specification: M6x20

Price: 2,00 € : 2,00 €

07

P/N (SKU): 7030-221123

Part Name: COLLAR, ROTATE SHAFT

Price: 2,00 € : 2,00 €

08

P/N (SKU): 7030-222251

Part Name: PIN SHAFT, GAS SPRING

Price: 2,50 € : 2,50 €

09

P/N (SKU): 9030-220004

Part Name: HOOK, BAND

Price: 2,50 € : 2,50 €

10

P/N (SKU): 7030-221140

Part Name: MOUNTING BRACKET, HOOK

Price: 5,00 € : 5,00 €

11

P/N (SKU): 7030-010508

Part Name: CABLE BOLT, TAIL BOX

Price: 4,00 € : 4,00 €

12

P/N (SKU): 7030-010500-10000

Part Name: FIXING CABLE, TAIL BOX

Price: 14,00 € : 14,00 €

13

P/N (SKU): 30305-060112

Part Name: WASHER

Specification: 6

Price: 1,50 € : 1,50 €

14

P/N (SKU): 5HY0-220113

Part Name: BOLT M8x20

Specification: M8x20

Price: 2,00 € : 2,00 €

15

P/N (SKU): 5HY0-220007

Part Name: TORSIONAL SPRING, RH

Price: 1,50 € : 1,50 €

16

P/N (SKU): 5HY0-220006

Part Name: TORSIONAL SPRING, LH

Price: 1,50 € : 1,50 €

17

P/N (SKU): 5HY0-222080-20000

Part Name: AIR SPRING

Price: 21,00 € : 21,00 €

18

P/N (SKU): 5HY0-220004

Part Name: RUBBER MAT

Price: 3,00 € : 3,00 €

19

P/N (SKU): 5HY0-220001-20000

Part Name: BRACKET, REAR LICENSE

Price: 13,00 € : 13,00 €

20

P/N (SKU): 30006-060016870

Part Name: BOLT M6x16

Specification: M6x16

Price: 1,50 € : 1,50 €

21

P/N (SKU): 30006-080045810

Part Name: BOLT M8x45

Specification: M8x45

Price: 2,00 € : 2,00 €

22

P/N (SKU): 5HY0-222010

Part Name: HOOK, CARGO BOX

Price: 13,00 € : 13,00 €

23

P/N (SKU): 5HY0-222020

Part Name: LH BRACKET, CARGO BOX DOOR

Price: 27,00 € : 27,00 €

24

P/N (SKU): 5HY0-222030-10000

Part Name: RH BRACKET, CARGO BOX DOOR

Price: 8,00 € : 8,00 €

25

P/N (SKU): 7030-221710

Part Name: DAMPER, CARGO BOX ADJUSTING

Price: 3,50 € : 3,50 €

26

P/N (SKU): 5HY#-221601-1000

Part Name: SCREW, PIN SHAFT

Price: 3,00 € : 3,00 €

27

P/N (SKU): 5HY0-222060

Part Name: LOCK, LH REAR DOOR

Price: 15,00 € : 15,00 €

28

P/N (SKU): 5HY0-222070

Part Name: LOCK, RH REAR DOOR

Price: 15,00 € : 15,00 €

29

P/N (SKU): 5HY0-222110-10000

Part Name: LH ROTATION SHAFT ASSY

Price: 20,00 € : 20,00 €

30

P/N (SKU): 5HY0-222120-10000

Part Name: RH ROTATION SHAFT ASSY

Price: 8,50 € : 8,50 €

31

P/N (SKU): 7030-220104

Part Name: SLEEVE, ROTATE

Price: 2,00 € : 2,00 €

32

P/N (SKU): 30006-080020810

Part Name: BOLT M8x20

Specification: M8x20

Price: 1,50 € : 1,50 €

33

P/N (SKU): 30204-080810

Part Name: NUT M8

Specification: M8

Price: 1,50 € : 1,50 €

34

P/N (SKU): 30202-050110

Part Name: NUT M5

Specification: M5

Price: 1,50 € : 1,50 €

35

P/N (SKU): 5HY0-220009

Part Name: LIMIT PLATE ,CARGO BOX DOOR

Price: 3,50 € : 3,50 €
